Map Light

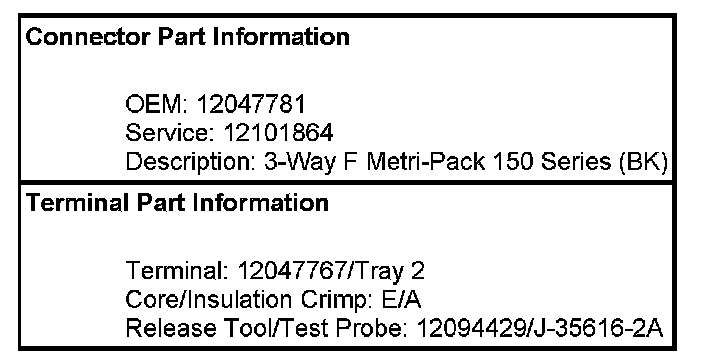

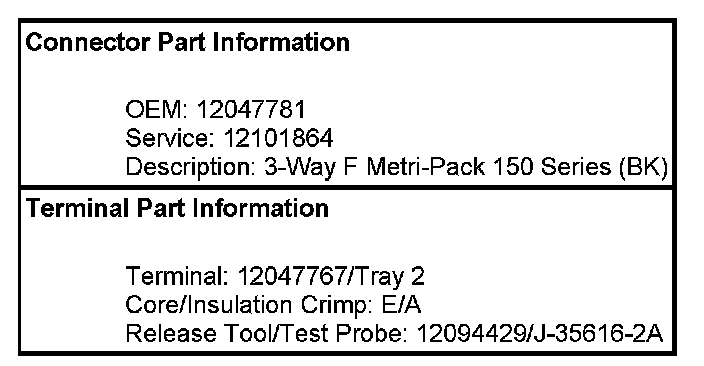

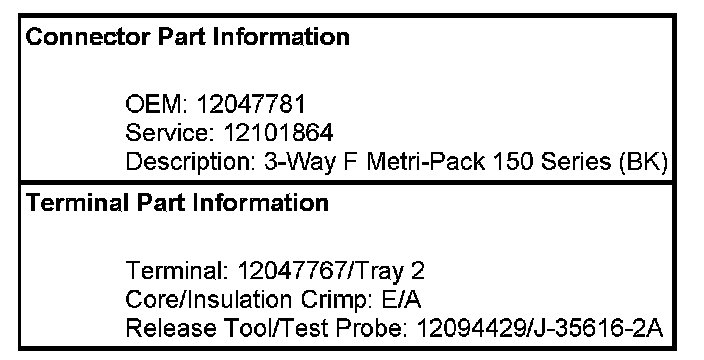

Lighting Systems Connector End Views

Courtesy/Reading Lamp - Center

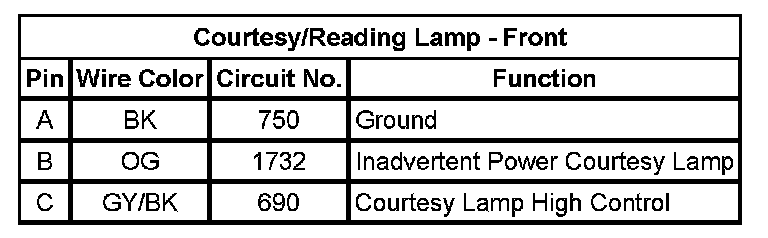

Courtesy/Reading Lamp - Front

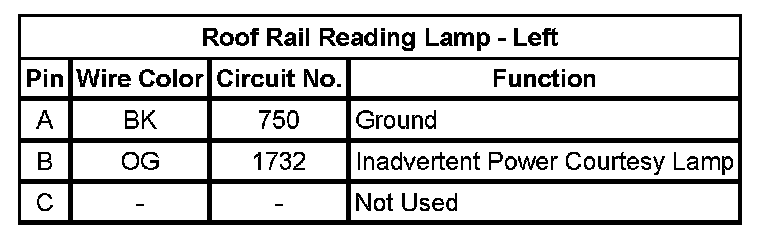

Roof Rail Reading Lamp - Left

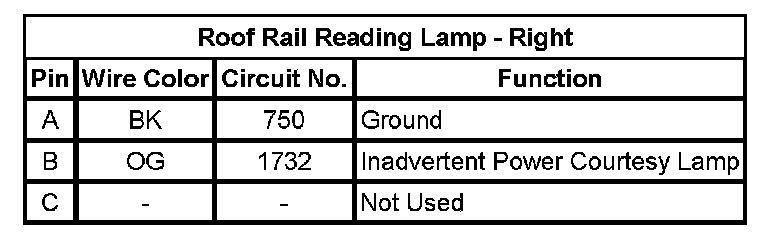

Roof Rail Reading Lamp - Right
