Steering Angle Sensor

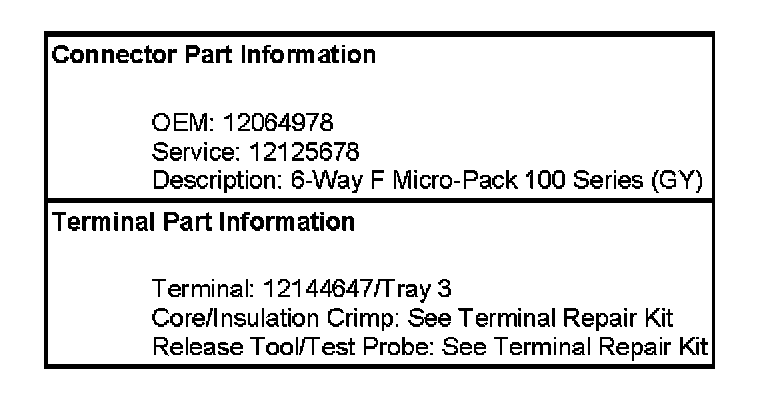

Steering Wheel Speed Position Sensor (JL4)

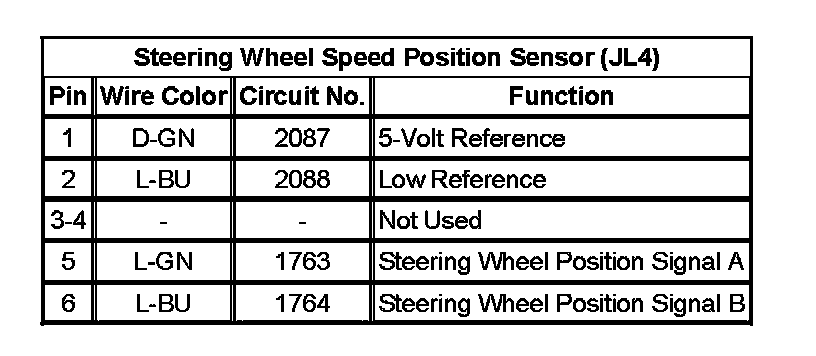

Steering Wheel Speed Position Sensor (JL4):
