Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Dash Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 3: Dash Assembly
Courtesy of GENERAL MOTORS CORP.

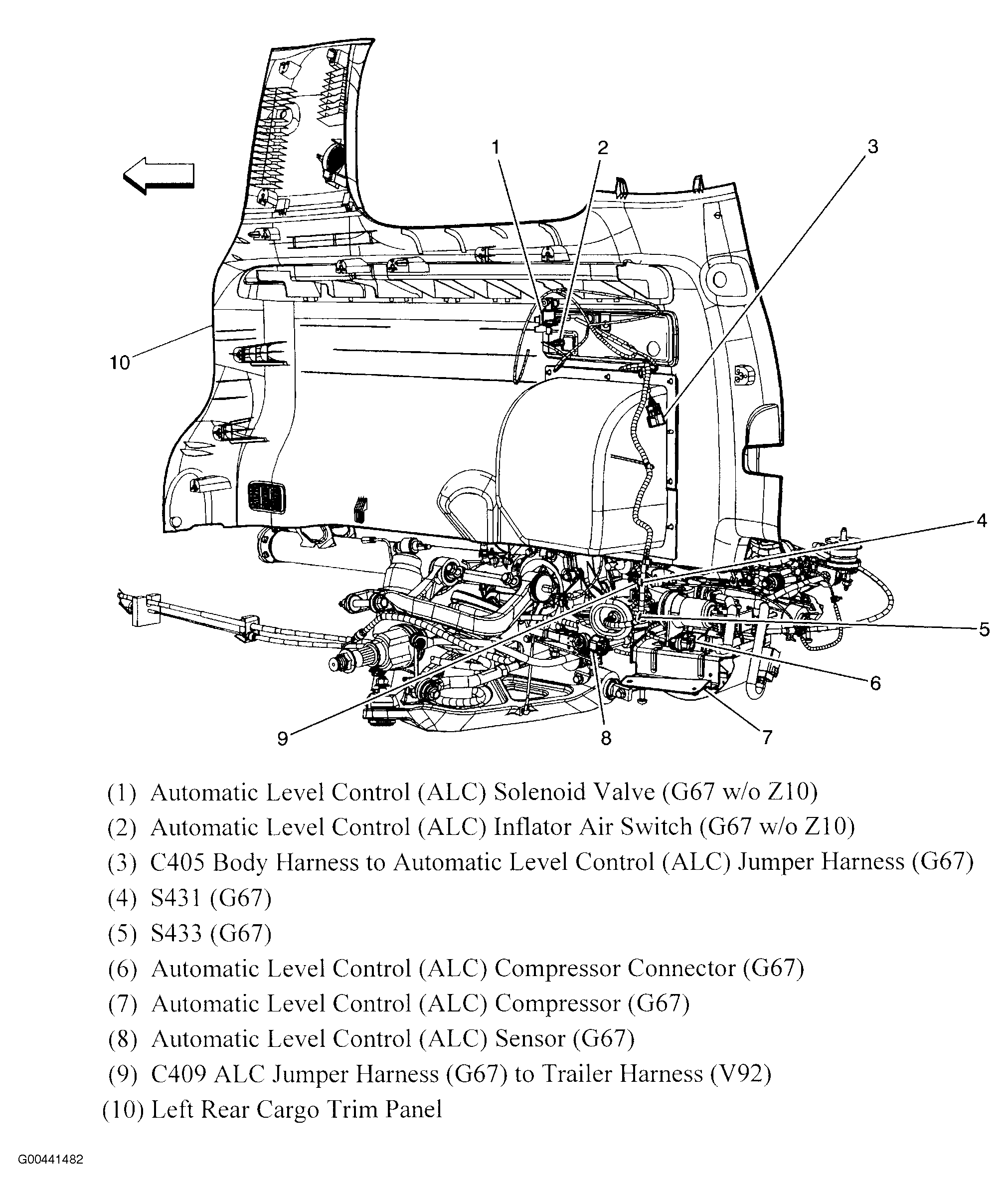

Fig 4: Left Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 5: Automatic Transmission Electronic Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 7: Middle Of Dash
Courtesy of GENERAL MOTORS CORP.

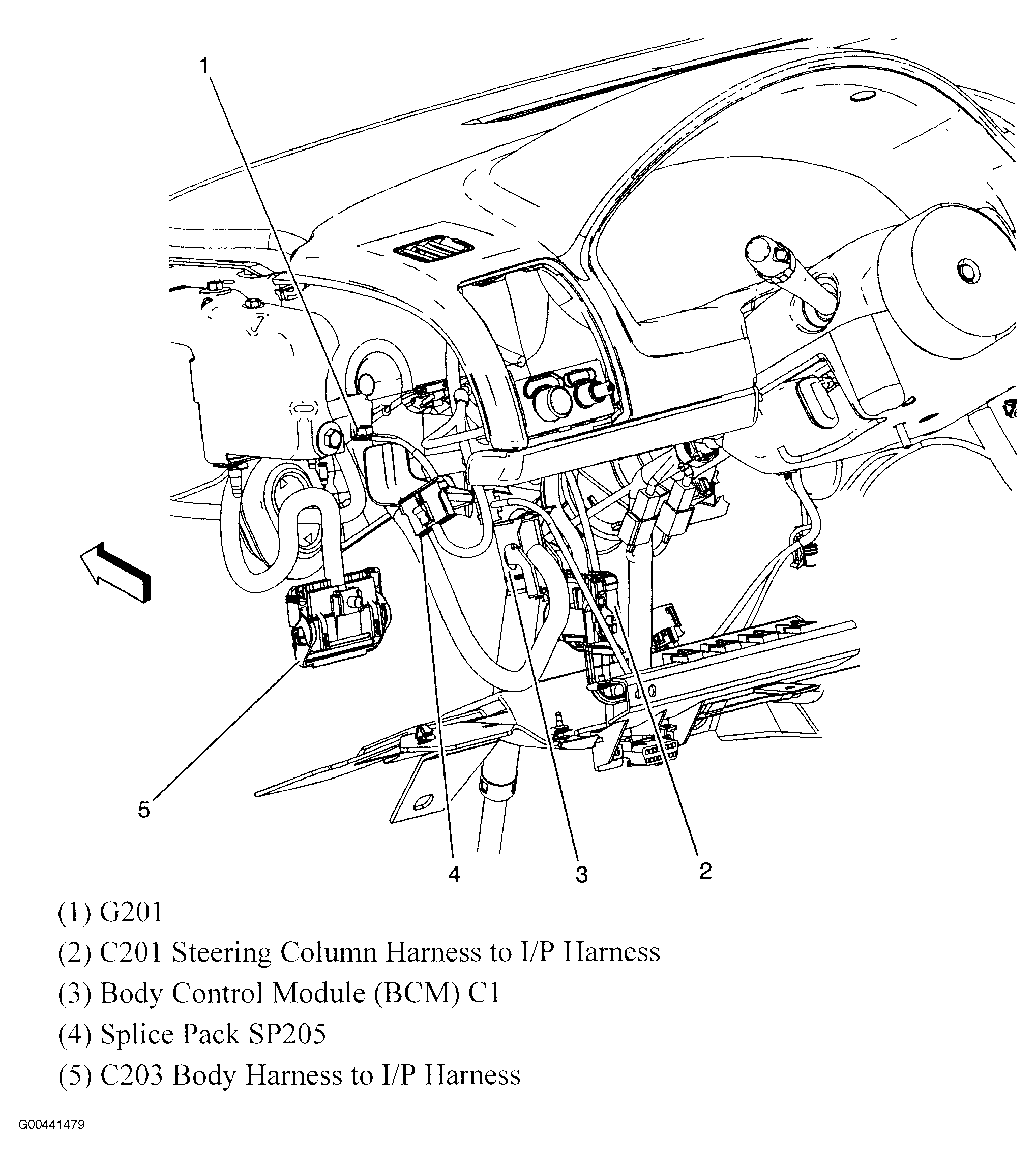

Fig 8: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Steering Wheel Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 10: Driver's Door Assembly
Courtesy of GENERAL MOTORS CORP.

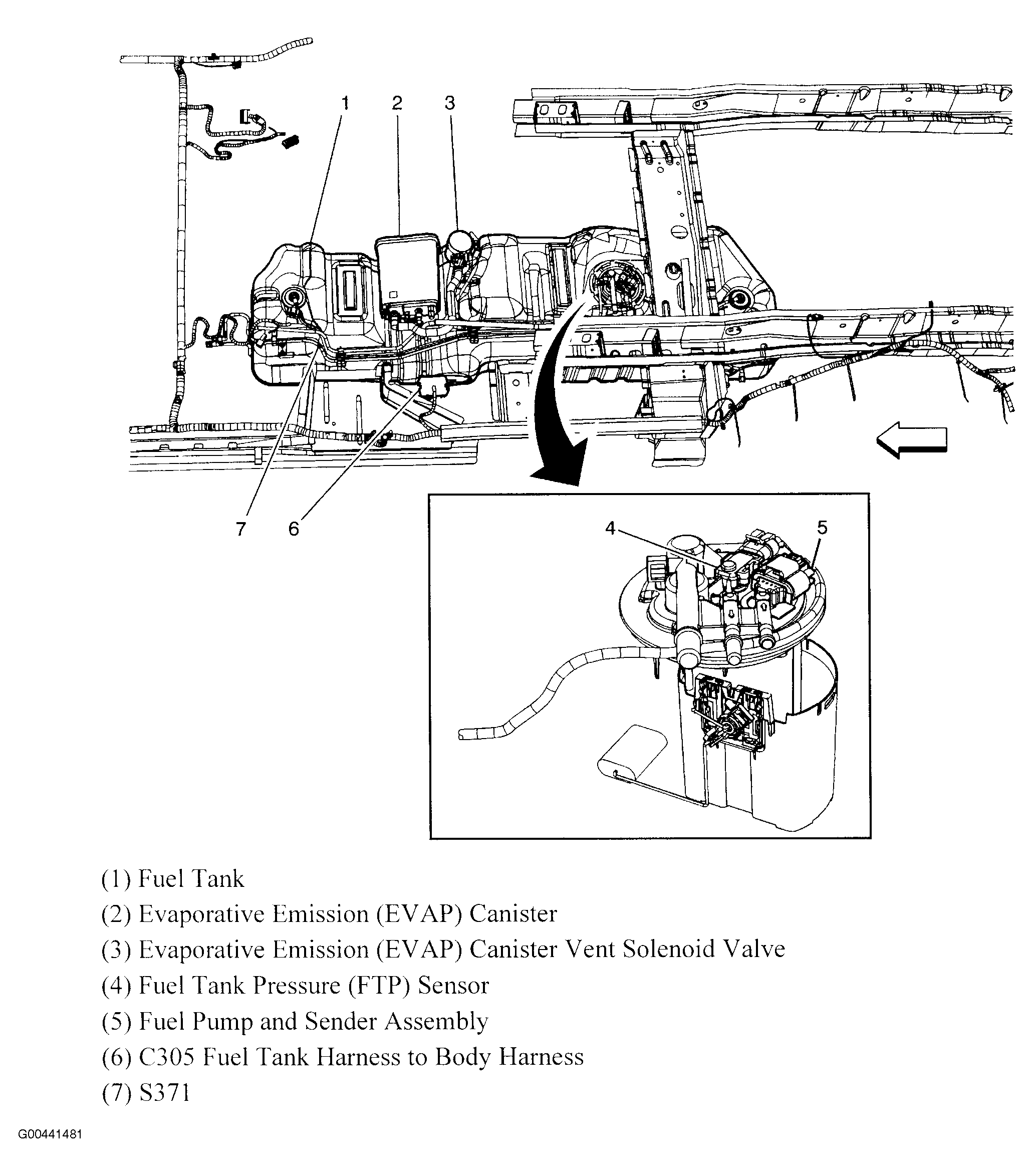

Fig 11: Fuel Tank Components
Courtesy of GENERAL MOTORS CORP.

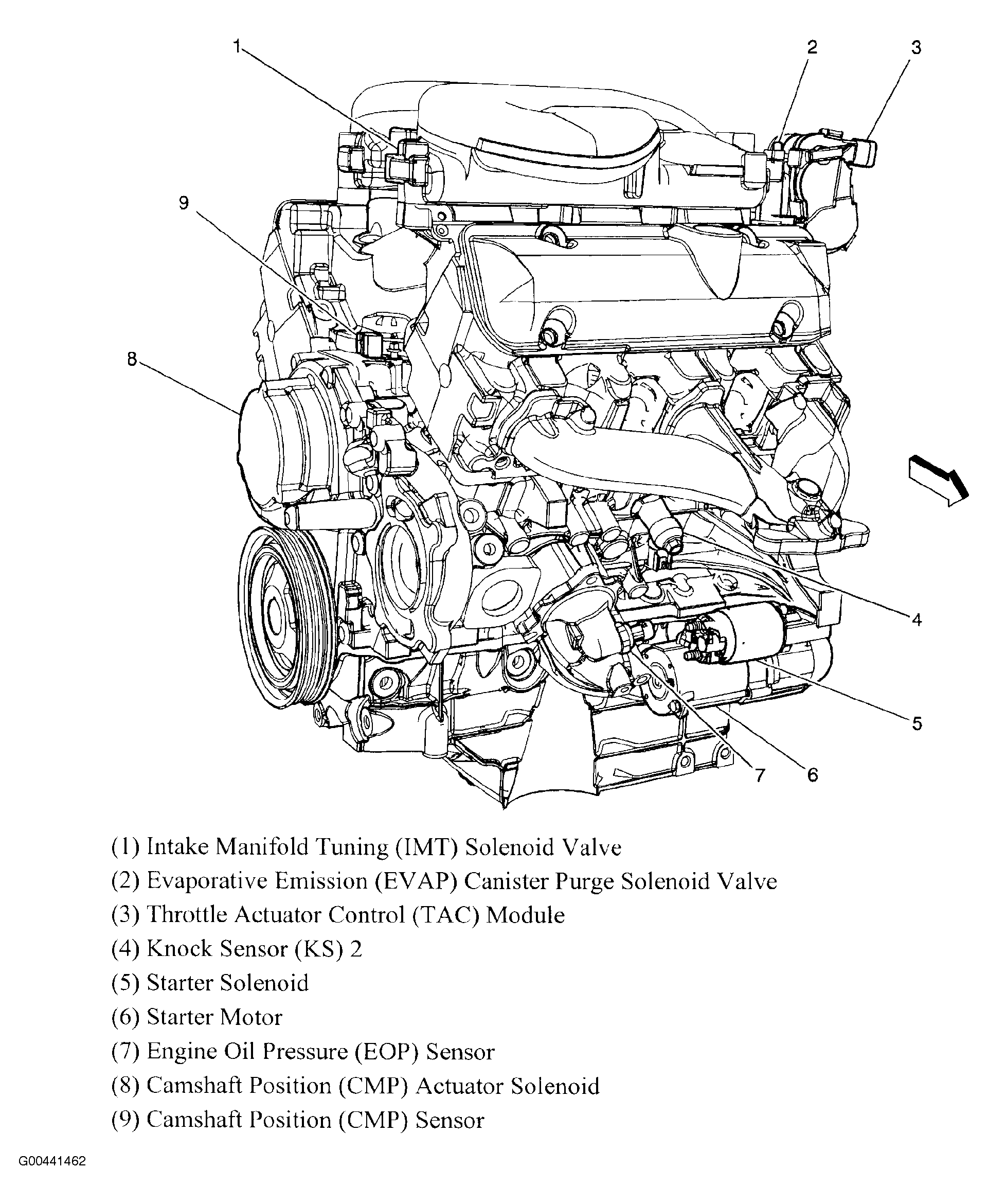

Fig 12: Engine Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 13: Right Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 14: Liftgate Components
Courtesy of GENERAL MOTORS CORP.
Fig 15: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 17: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 18: Headliner Harness Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 19: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 20: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 21: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 23: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 24: Dash
Courtesy of GENERAL MOTORS CORP.

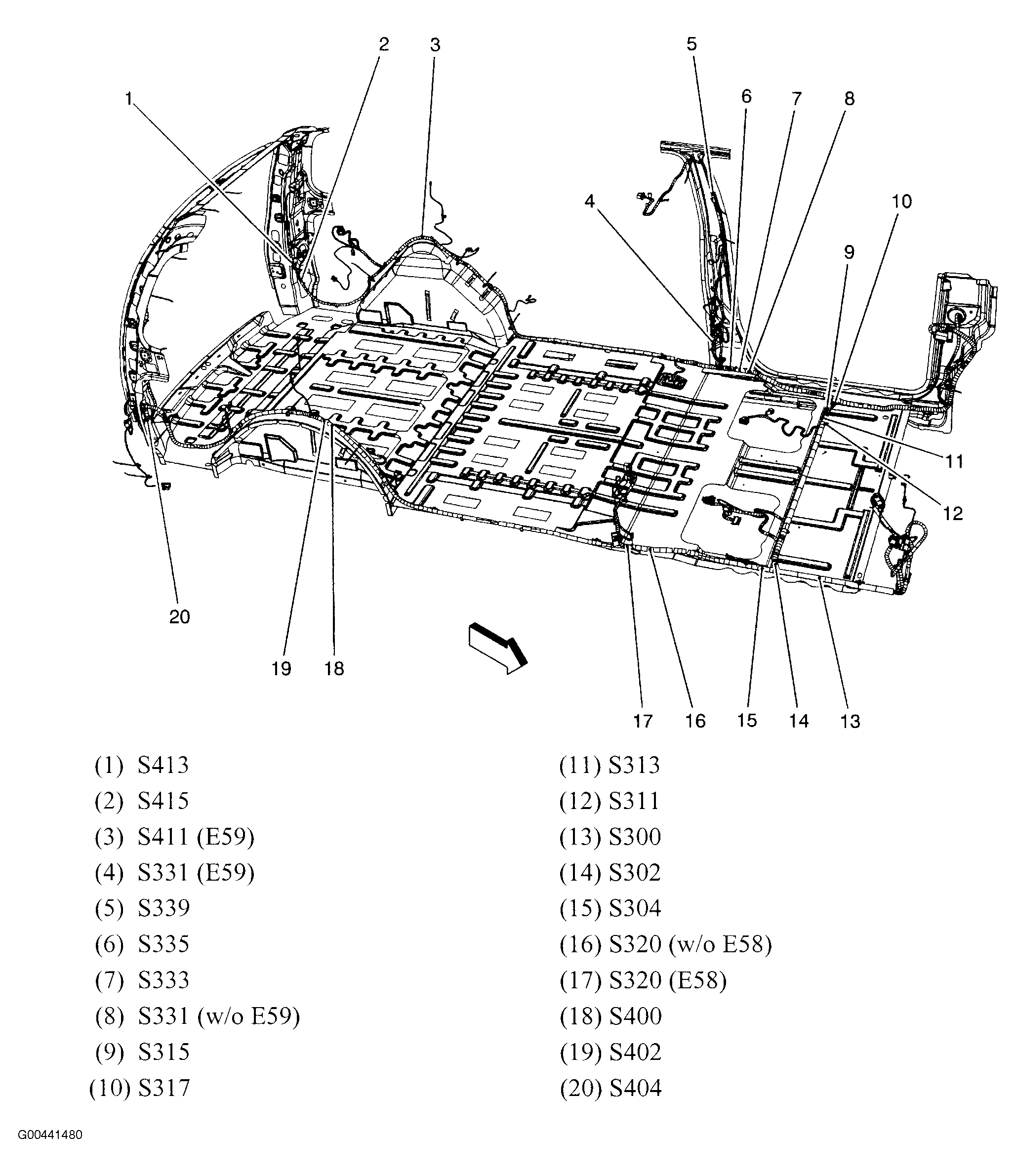

Fig 25: Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 26: Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 28: Rear Lower Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 29: Top Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 30: Engine Assembly (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Exhaust System (3.9L)
Courtesy of GENERAL MOTORS CORP.

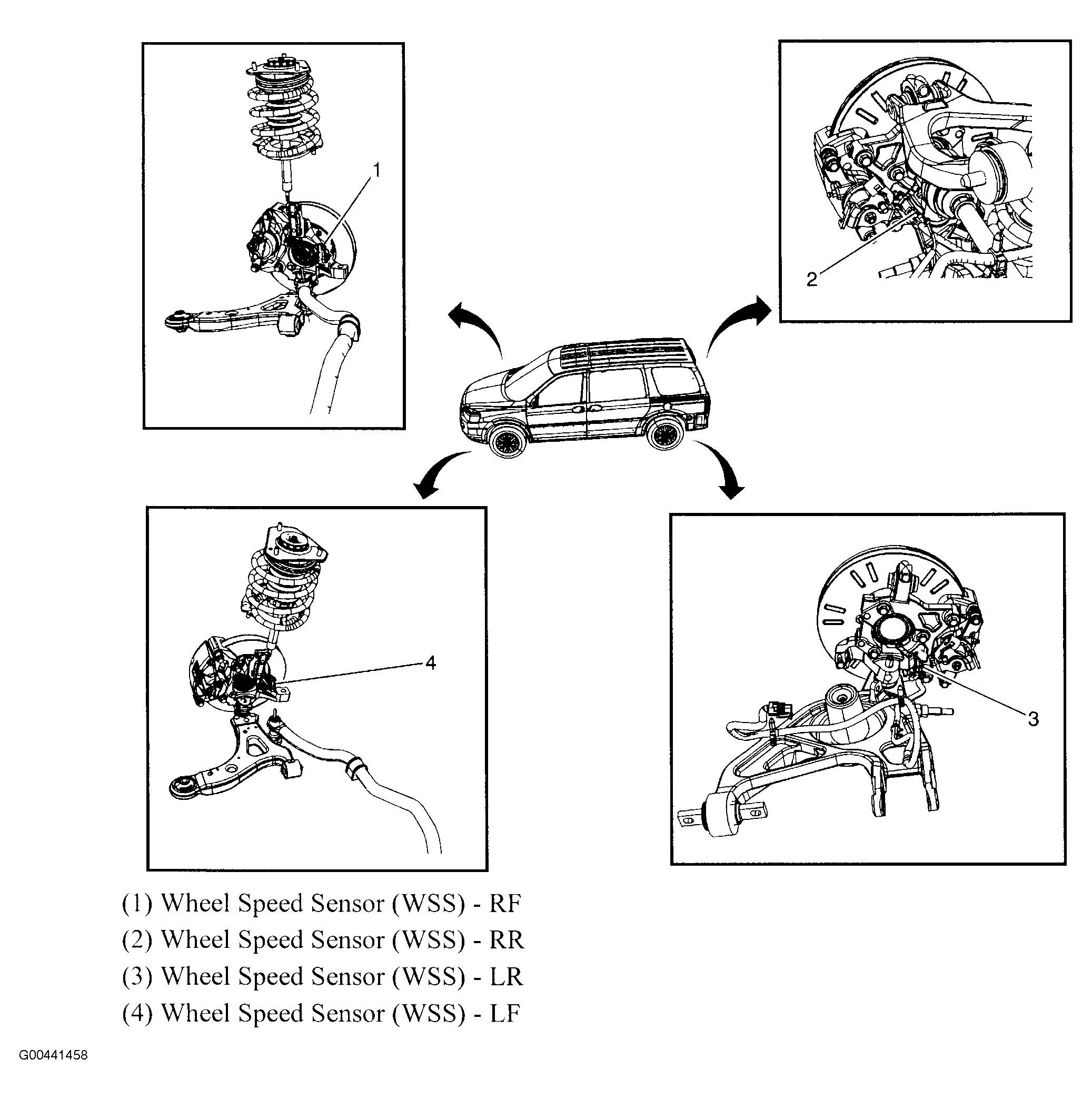

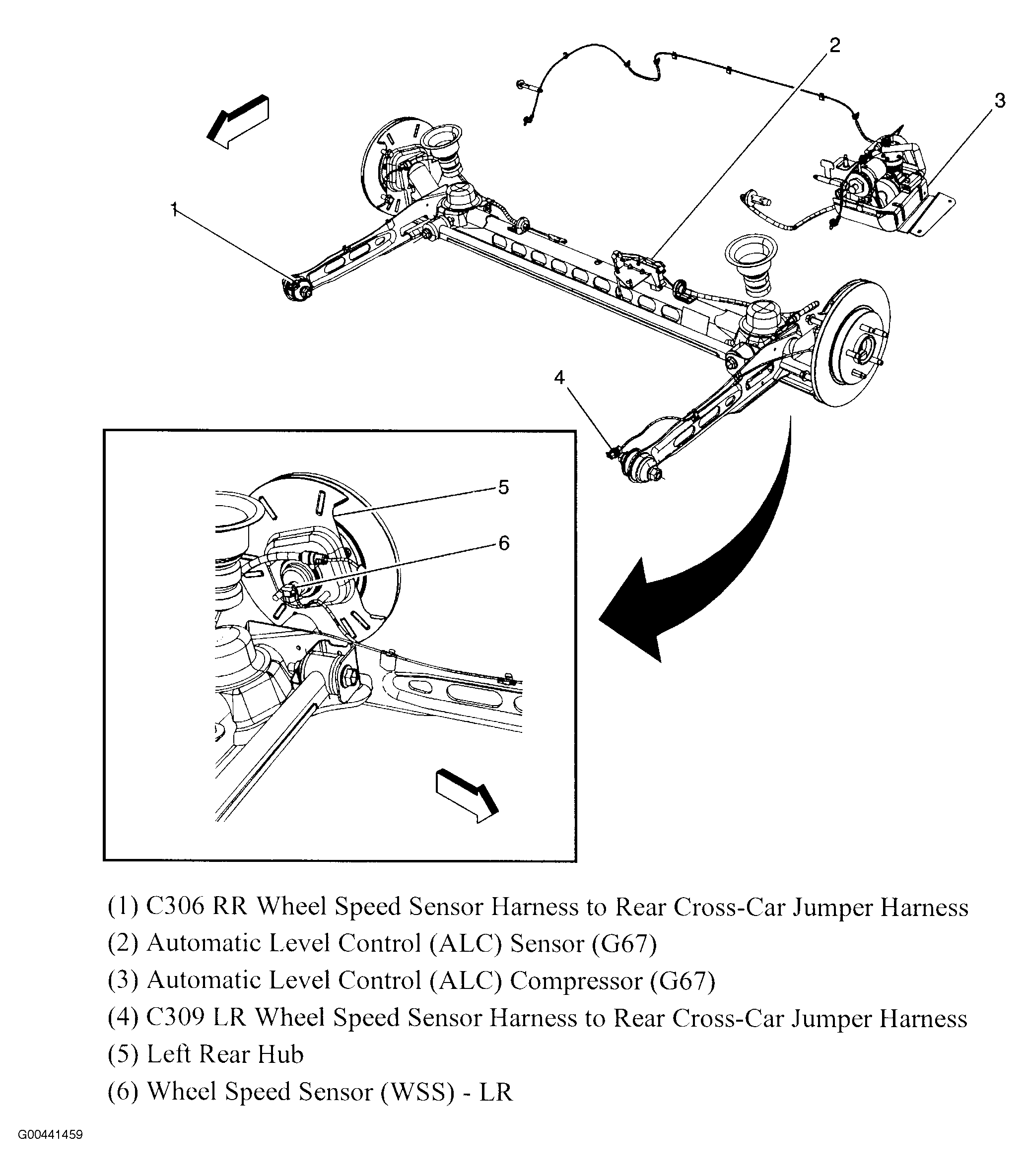

Fig 32: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Twist Axle
Courtesy of GENERAL MOTORS CORP.
Fig 34: LF Engine Compartment
Courtesy of GENERAL MOTORS CORP.

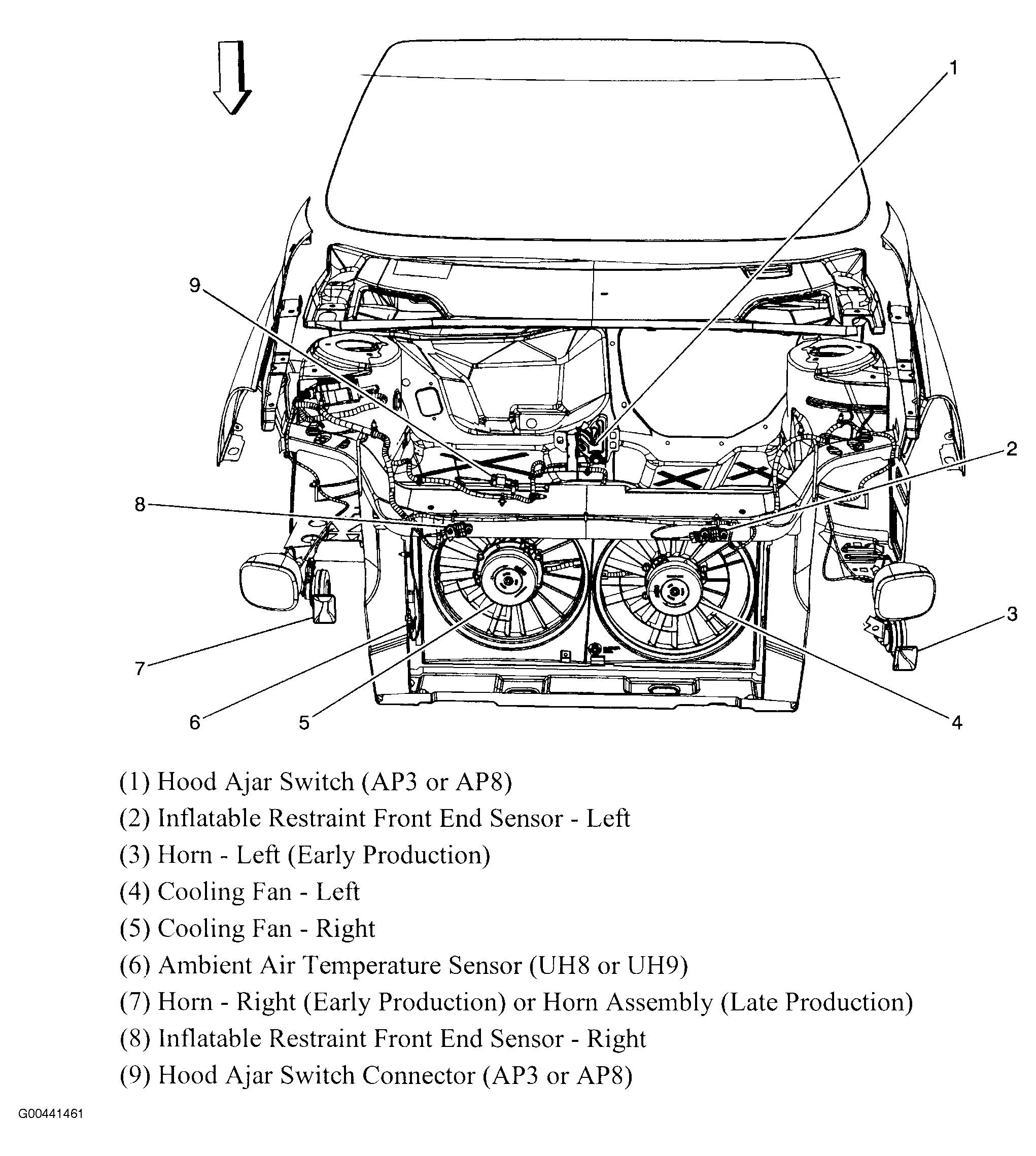

Fig 35: Front Of Engine Compartment Components
Courtesy of GENERAL MOTORS CORP.
Fig 36: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 37: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 38: Antenna Components
Courtesy of GENERAL MOTORS CORP.

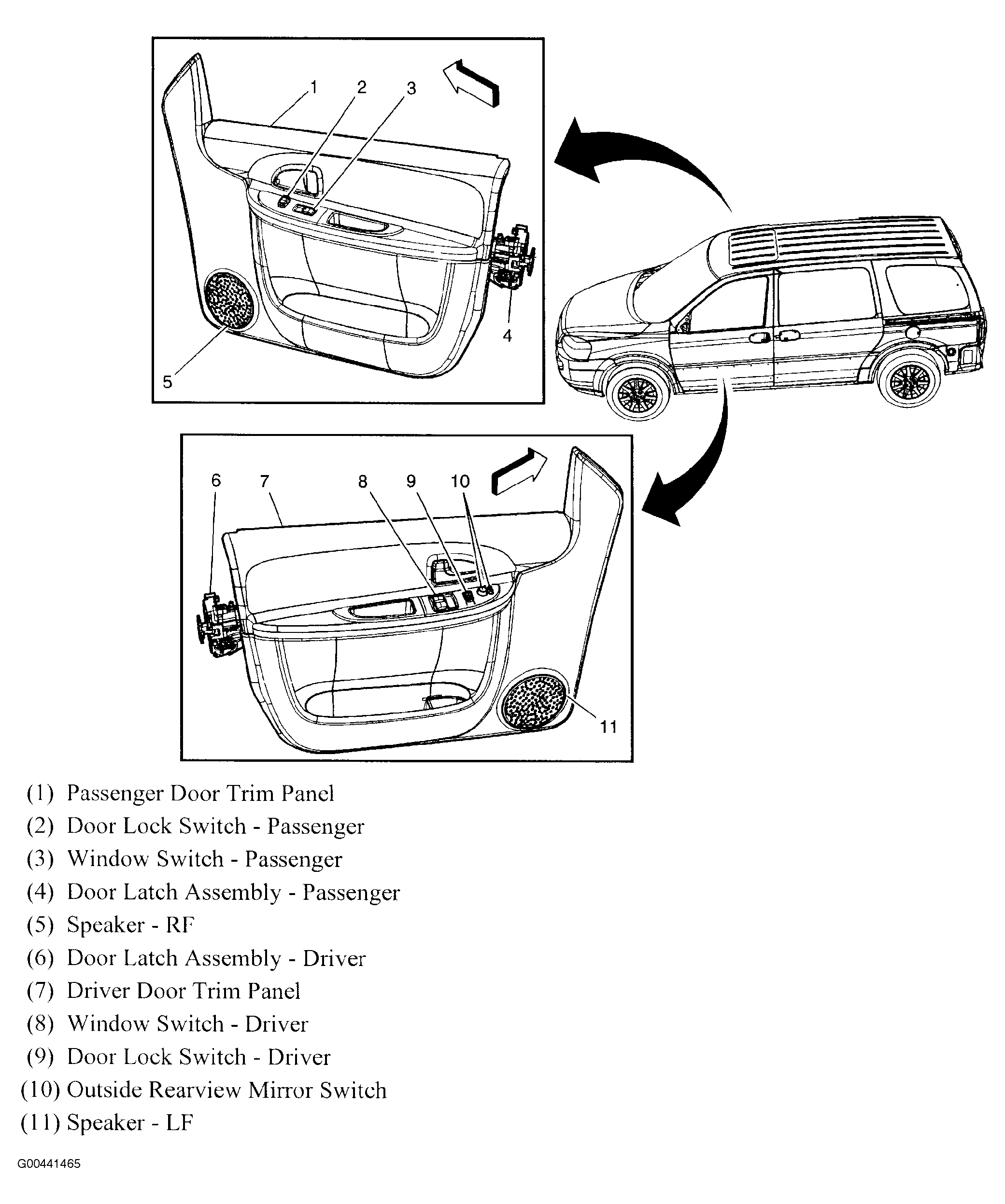

Fig 39: Front Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 40: Rear Exterior Components
Courtesy of GENERAL MOTORS CORP.
Fig 41: Passenger Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 42: Front Passenger Presence System
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Sliding Door
Courtesy of GENERAL MOTORS CORP.
Fig 46: Right Sliding Door
Courtesy of GENERAL MOTORS CORP.

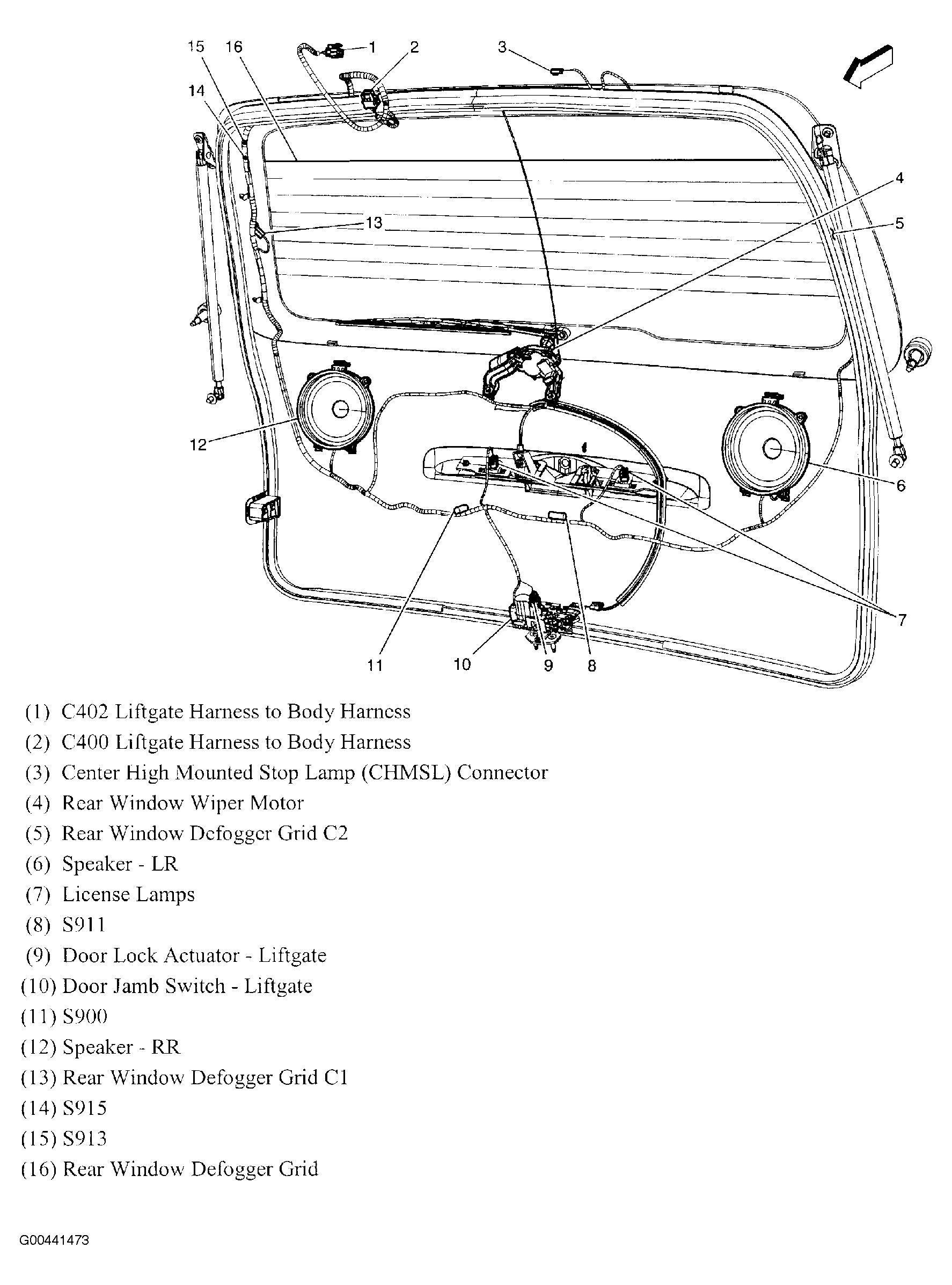

Fig 47: Liftgate
Courtesy of GENERAL MOTORS CORP.

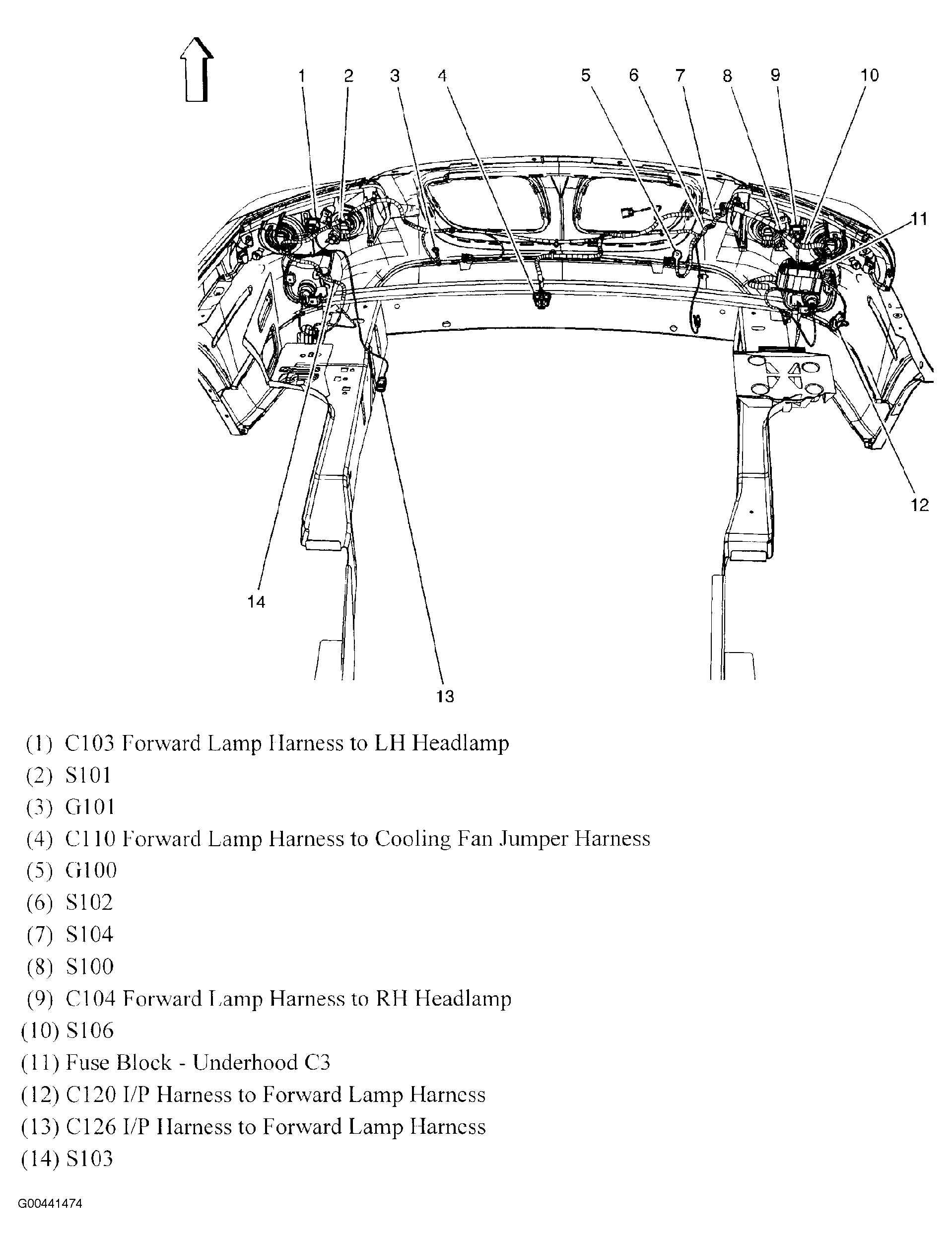

Fig 48: Front Lamp Harness
Courtesy of GENERAL MOTORS CORP.

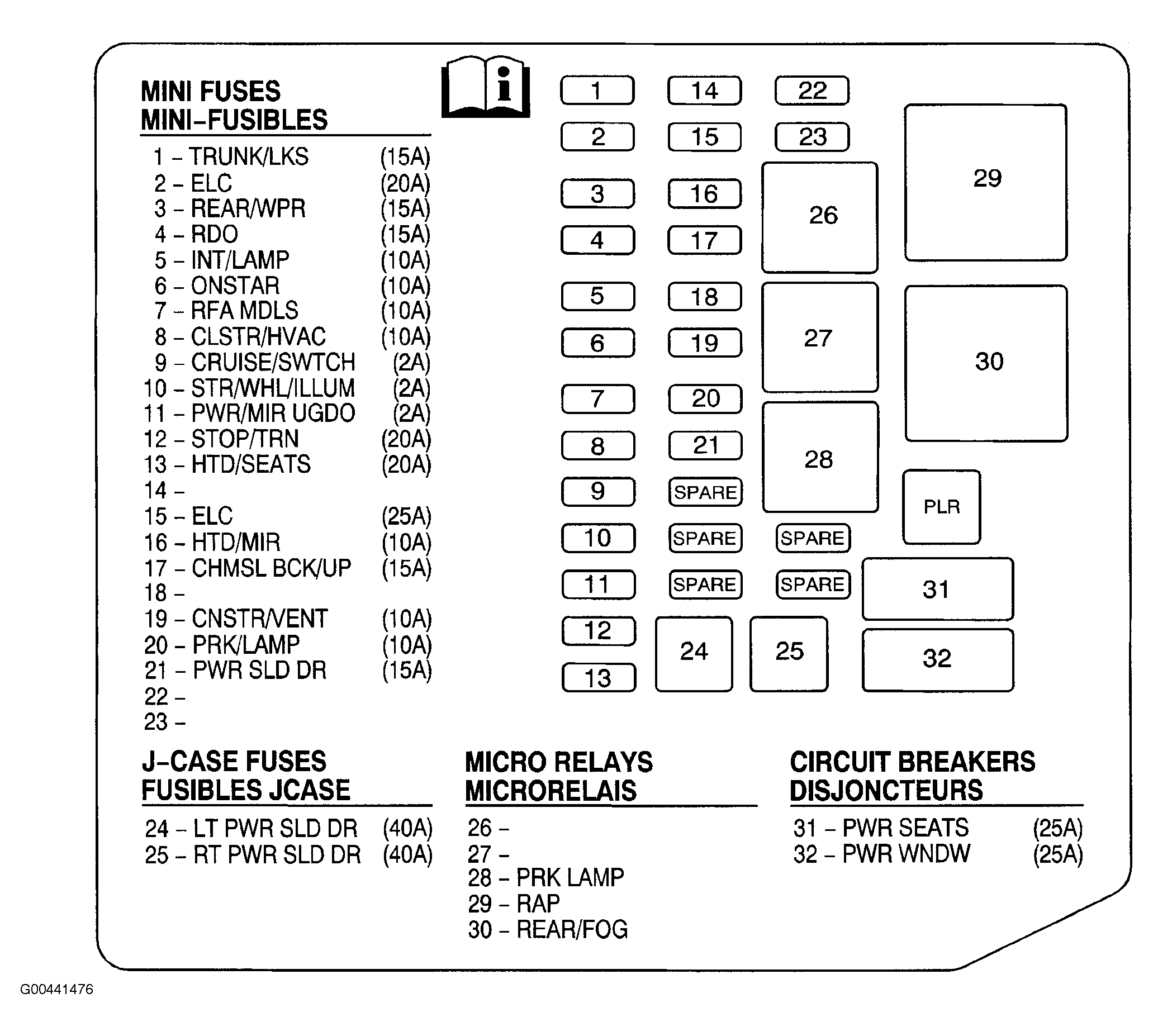

Fig 49: Fuse Block - Underdash
Courtesy of GENERAL MOTORS CORP.
Fig 50: Air Intake
Courtesy of GENERAL MOTORS CORP.

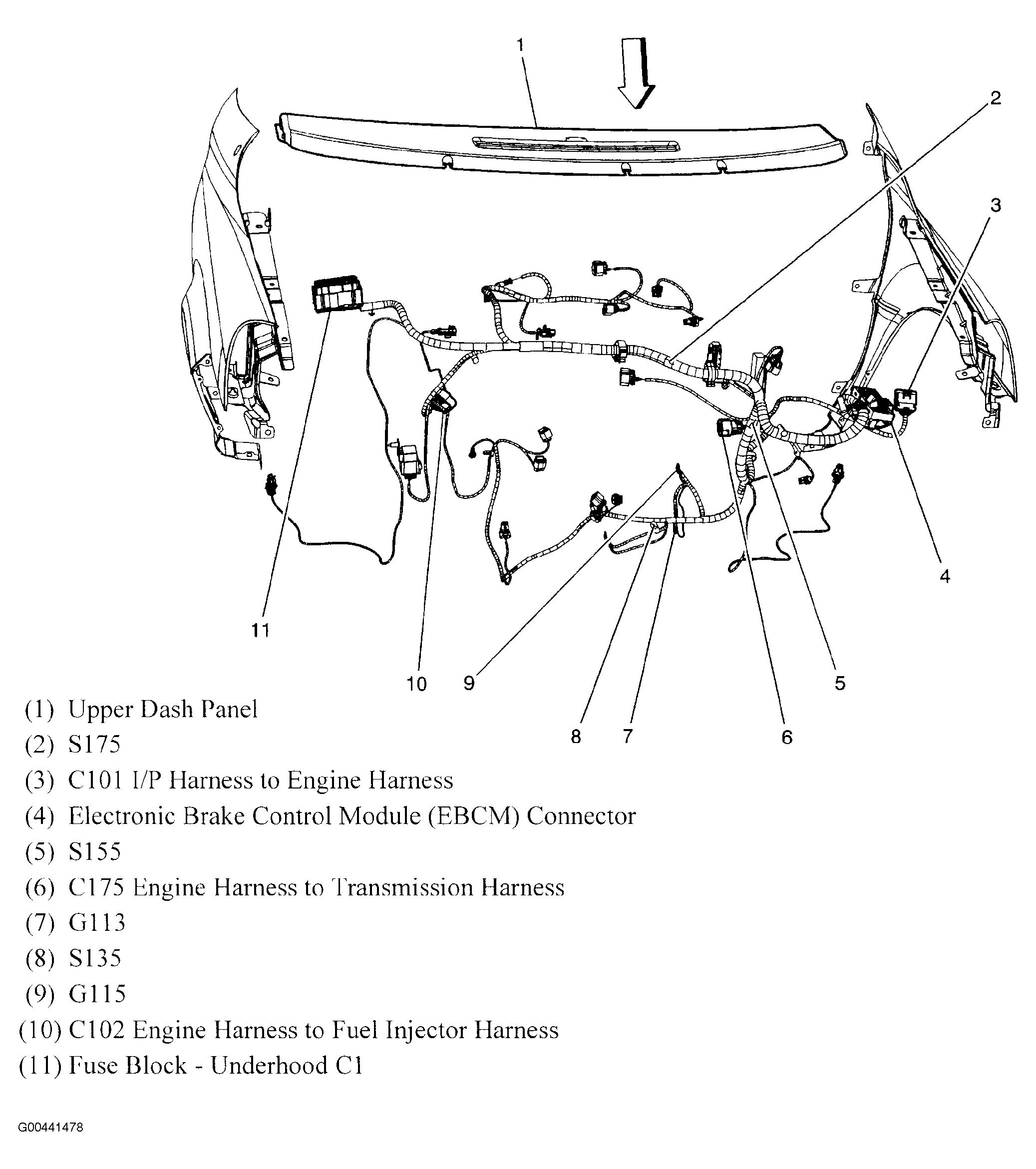

Fig 51: Engine Harness Components
Courtesy of GENERAL MOTORS CORP.
Fig 52: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 53: Fuel Tank - Long Wheelbase
Courtesy of GENERAL MOTORS CORP.
Fig 54: Left Rear Underbody
Courtesy of GENERAL MOTORS CORP.

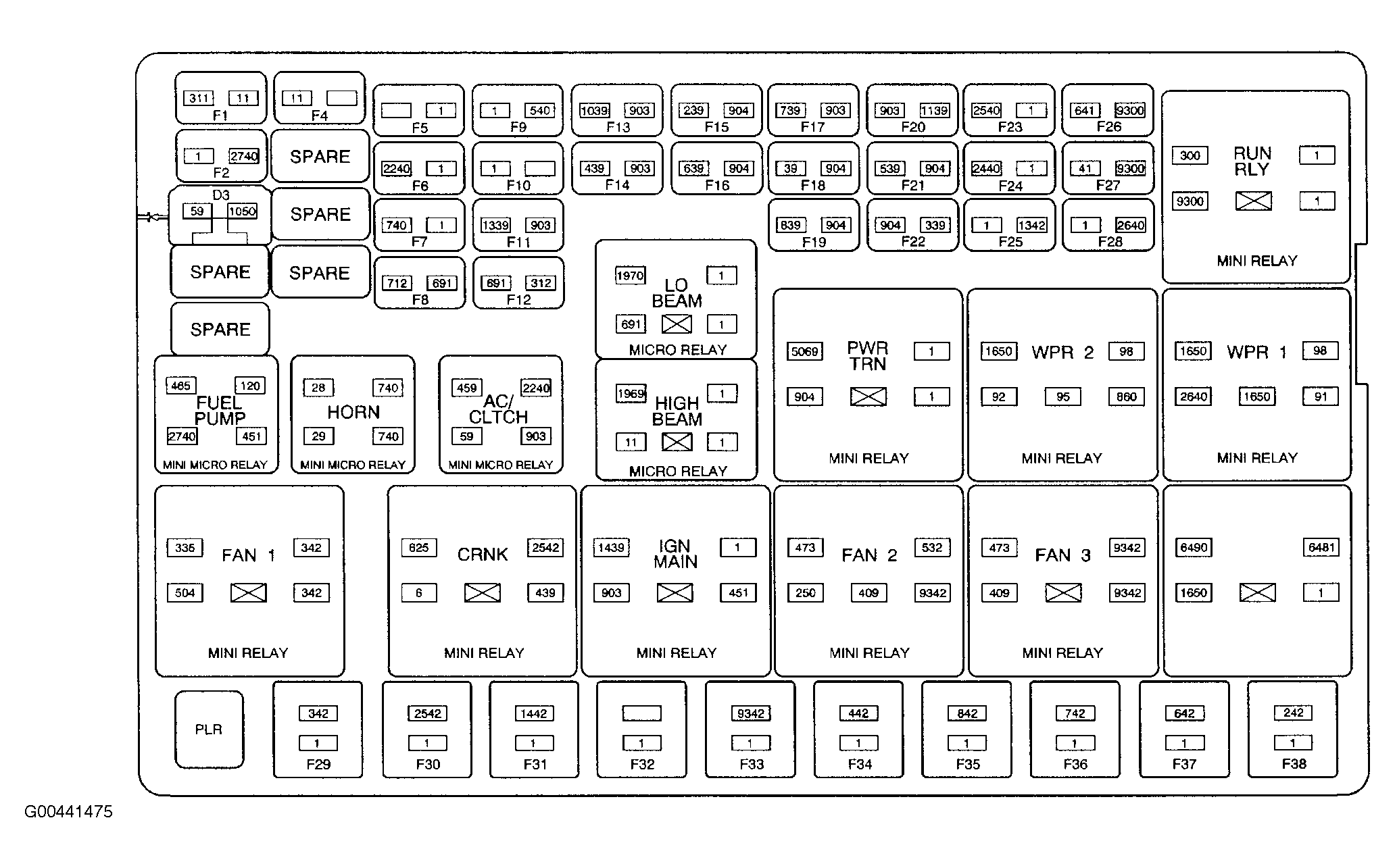

Fig 55: Fuse Block - Underhood
Courtesy of GENERAL MOTORS CORP.
Fig 56: Body Harness- Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
