Throttle Actuator Control (TAC) Module

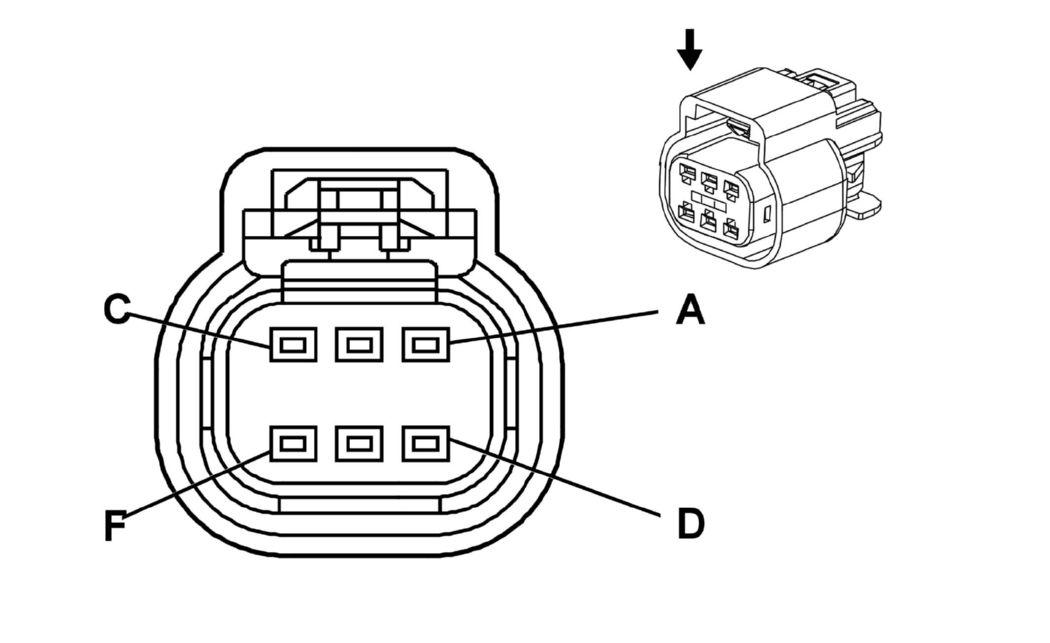

Fig 1: Throttle Actuator Control (TAC) Module Connector End Views
GM1664617Courtesy of GENERAL MOTORS CORP.
Throttle Actuator Control (TAC) Module Connector Parts Information

Connector Part Information
  • OEM: 15355297
  • Service: 88988106
  • Description: 6-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 12191818/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Throttle Actuator Control (TAC) Module Connector Terminal Identification

Pin Wire Color Circuit No. Function
A BN 582 TAC Motor Control - 2
B YE 581 TAC Motor Control - 1
C TN 2752 Low Reference
D D-GN 485 TP Sensor 1 Signal
E GY 2701 5-Volt Reference
F PU 486 TP Sensor 2 Signal
