Removal Procedure

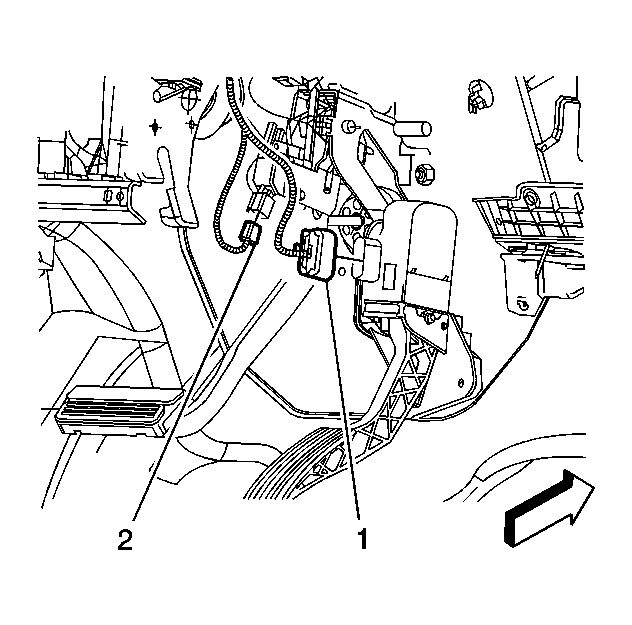

    Fig 1: Disconnecting/Connecting Accelerator Pedal Position Sensor Connector
    GM1681821Courtesy of GENERAL MOTORS CORP.
  1. Remove the insulator panel. Refer to Knee Bolster Replacement .
  2. Remove the connector position assurance (CPA) retainer.
  3. Disconnect the instrument panel (I/P) harness electrical connector (1) from the accelerator pedal.
    4. Fig 2: Disconnecting Accelerator Pedal Position Sensor Electrical Connector
    GM1544734Courtesy of GENERAL MOTORS CORP.
  4. Remove the accelerator pedal bolts.
  5. Remove the accelerator pedal (2).
