Installation Procedure

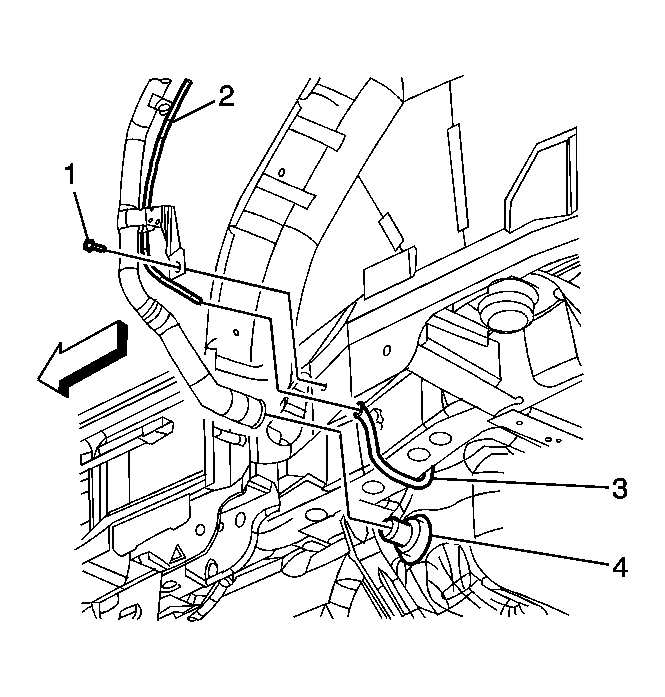

    Fig 1: Identifying Fuel Tank Fill Hose & Clamp
    GM1682044Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel fill pipe assembly.
  2. Install the fuel fill hose to the fuel tank (4).
    3. NOTE: Refer to Fastener Notice .
  3. Tighten the fuel fill hose clamp (5) at the fuel tank.

    Tighten:  Tighten the clamp to 2.5 N.m (22 lb in).

  4. Connect the fuel fill pipe vapor recirculation pipe (2) quick connect fitting to the fuel tank vapor recirculation hose (3). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Install the fuel fill pipe bracket bolt (1).

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

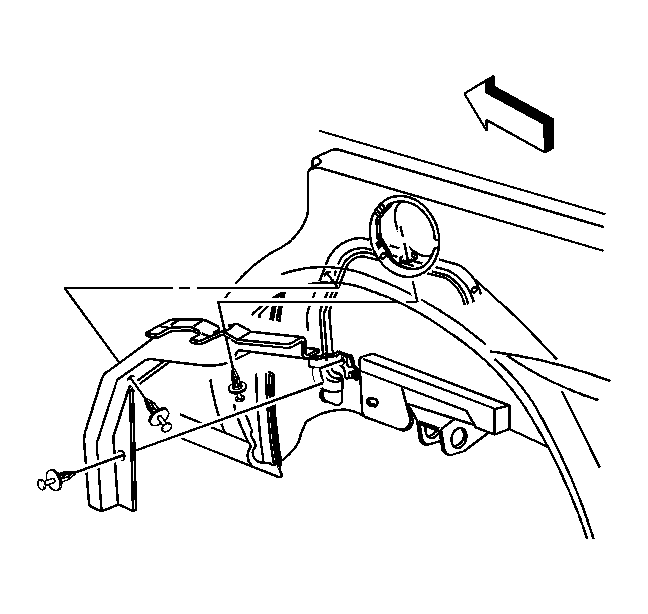

    6. Fig 2: Identifying Fill Pipe Shields & Retainers/Fuel Fill Pocket Bolts
    GM1682277Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel fill pipe shield.
  7. Install the fuel fill pipe shield retainers.
  8. Lower the vehicle.

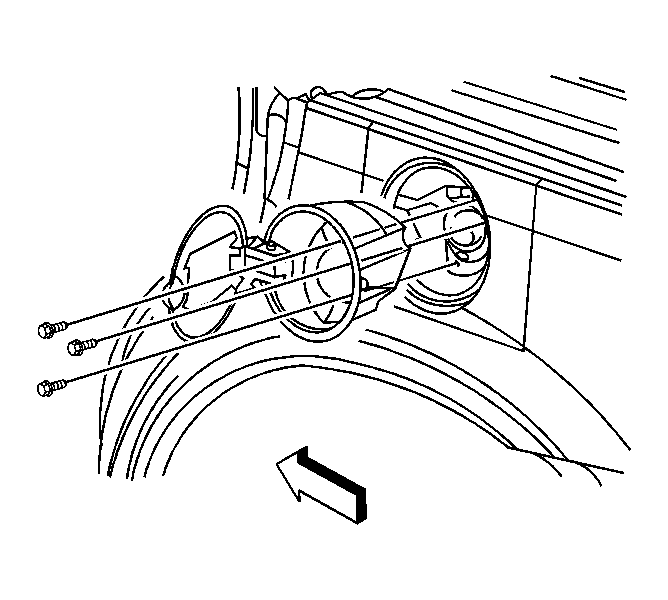

    9. Fig 3: Identifying Fill Pipe/Fuel Fill Pocket Bolts
    GM1682276Courtesy of GENERAL MOTORS CORP.
  9. Install the fuel fill pipe to fuel fill pocket bolts.

    Tighten:  Tighten the bolts to 2.5 N.m (22 lb in).

  10. Refill the fuel tank.
  11. Install the fuel fill cap.
  12. Inspect for fuel leaks.
