Installation Procedure

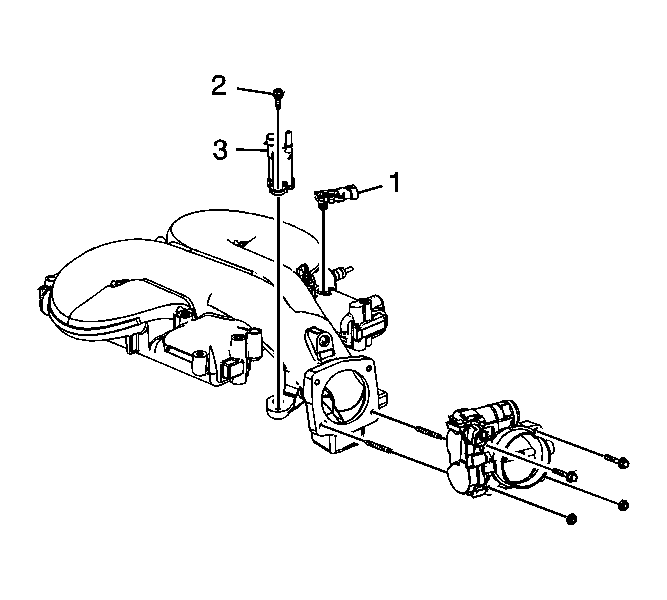

    Fig 1: Identifying Upper Intake Manifold Components
    GM1639213Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor seal, if necessary.
  2. Install the MAP sensor (1).

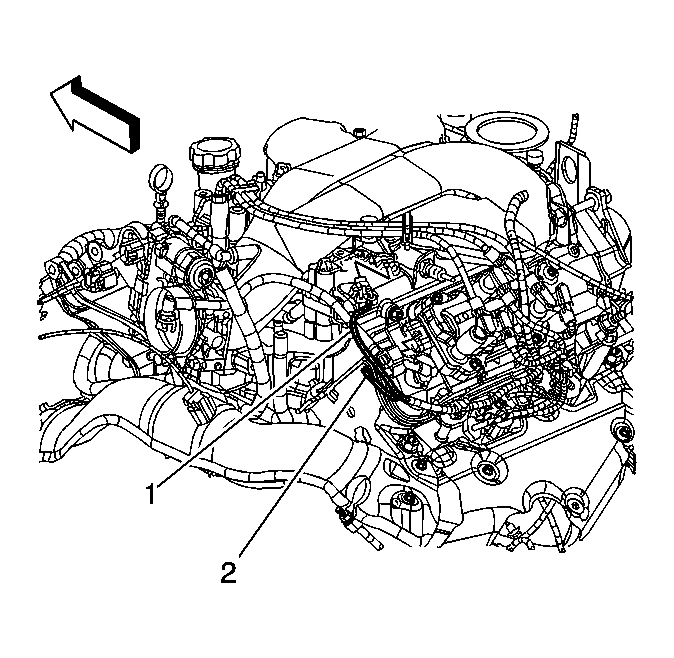

    3. Fig 2: Locating MAP Sensor Electrical Connector
    GM1675732Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the MAP sensor bracket and bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  4. Connect the engine harness electrical connector (1) to the MAP sensor.
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
