Removal Procedure

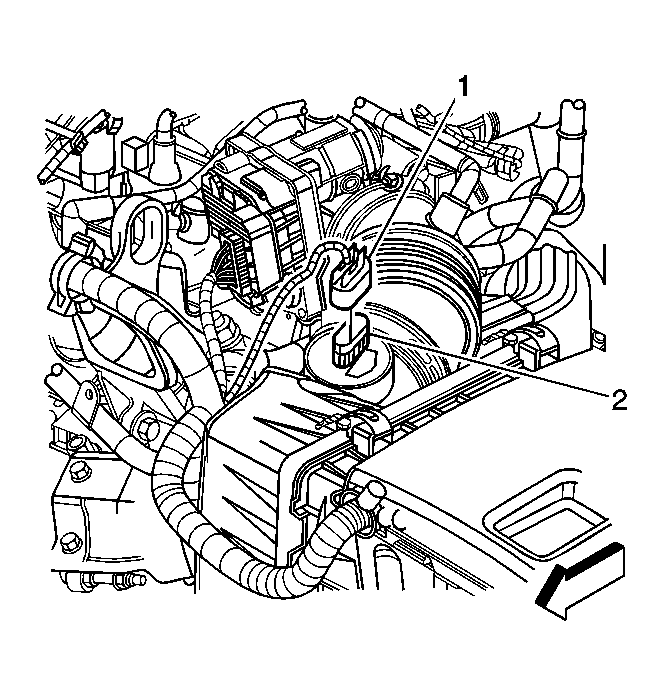

    Fig 1: Identifying Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor
    GM1544729Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine harness electrical connector (1) from the mass air flow (MAF)/intake air temperature (IAT) sensor.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  3. Remove the MAF/IAT sensor (2) bolts.
  4. Remove the MAF/IAT sensor (2) from the air filter housing.
