Engine Controls Schematics

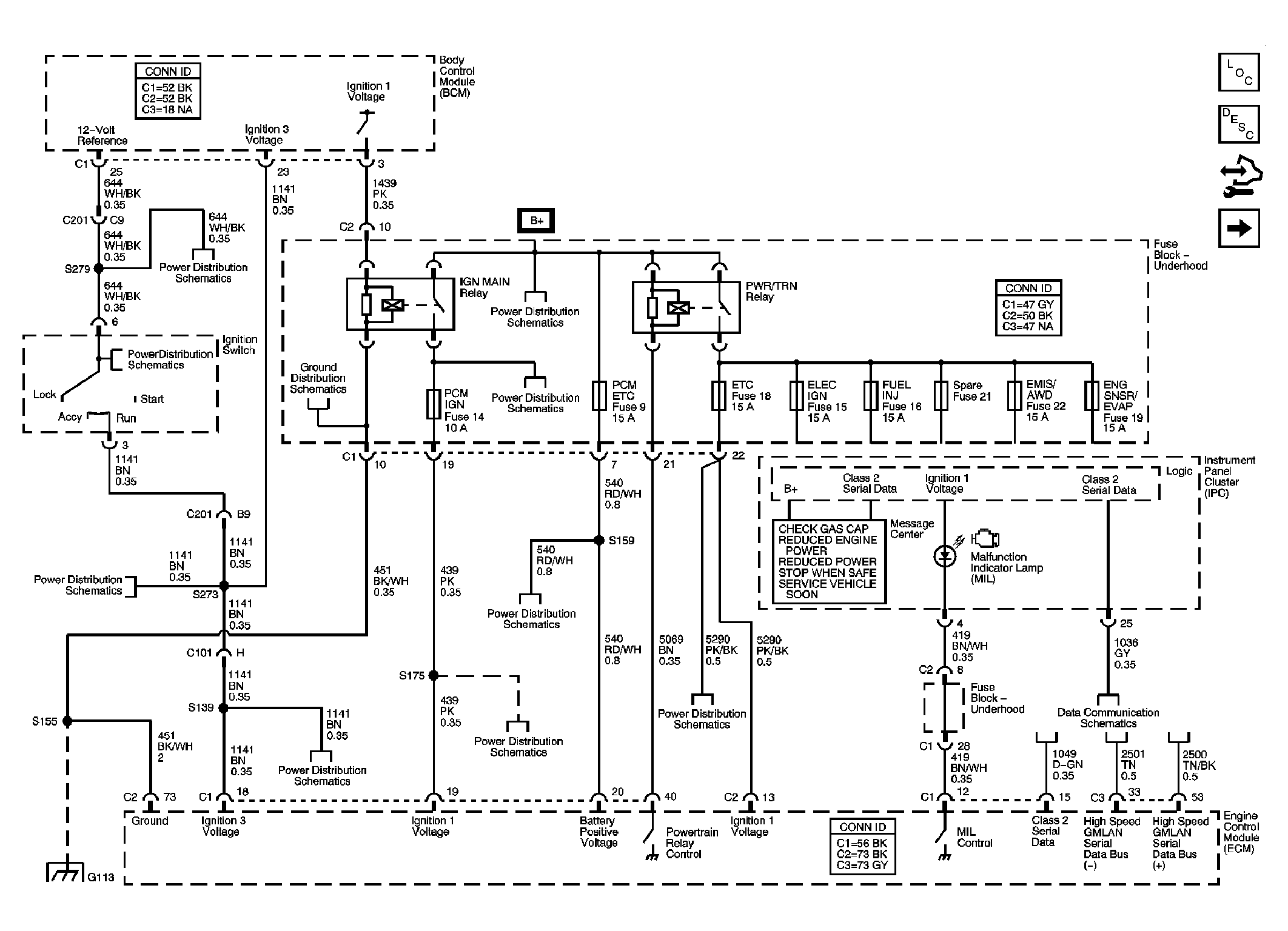

Fig 1: Module Power, Ground, Serial Data, and MIL
GM1740026Courtesy of GENERAL MOTORS CORP.

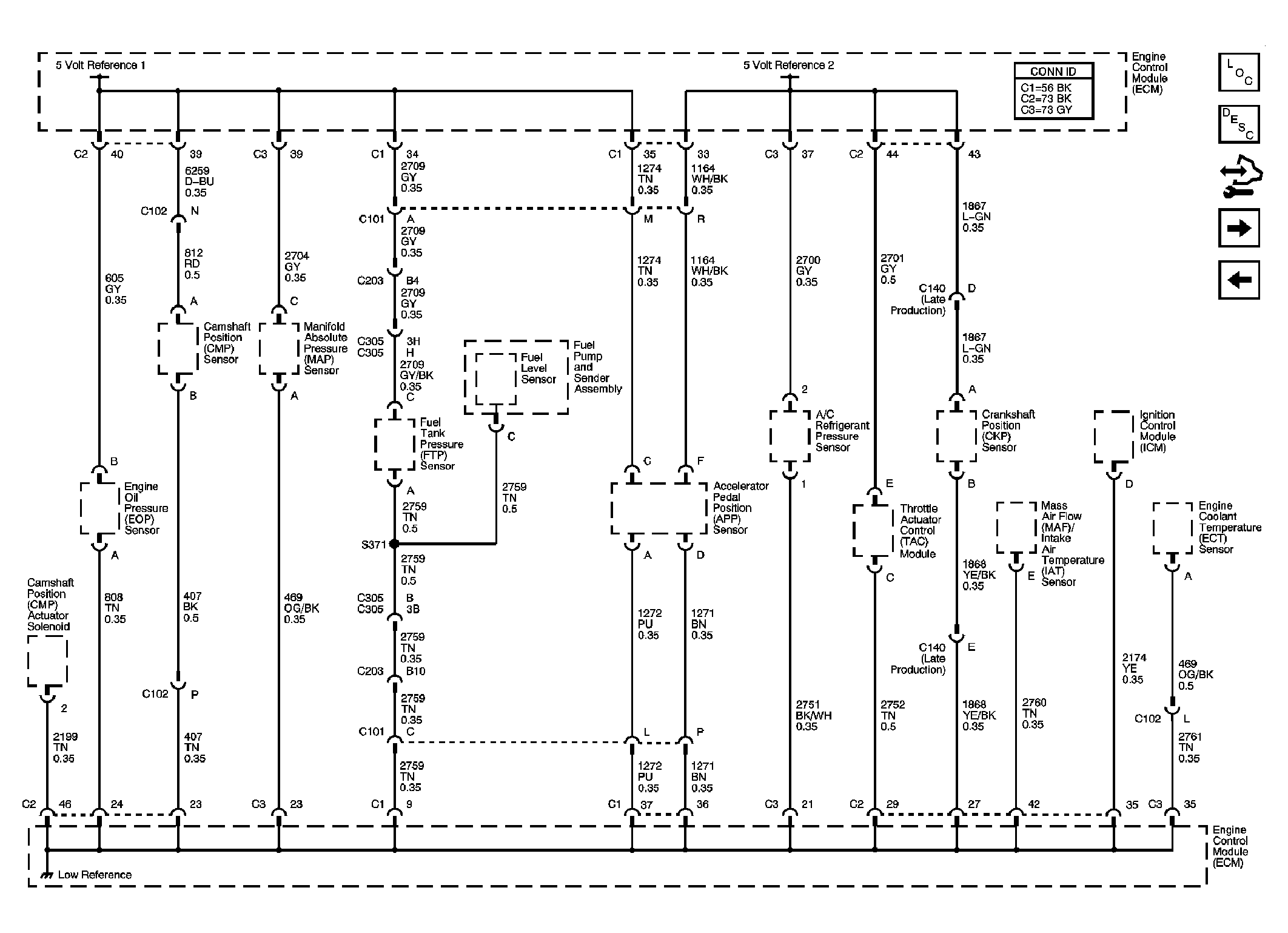

Fig 2: Engine Data Sensors - 5-Volt and Low Reference
GM1740029Courtesy of GENERAL MOTORS CORP.

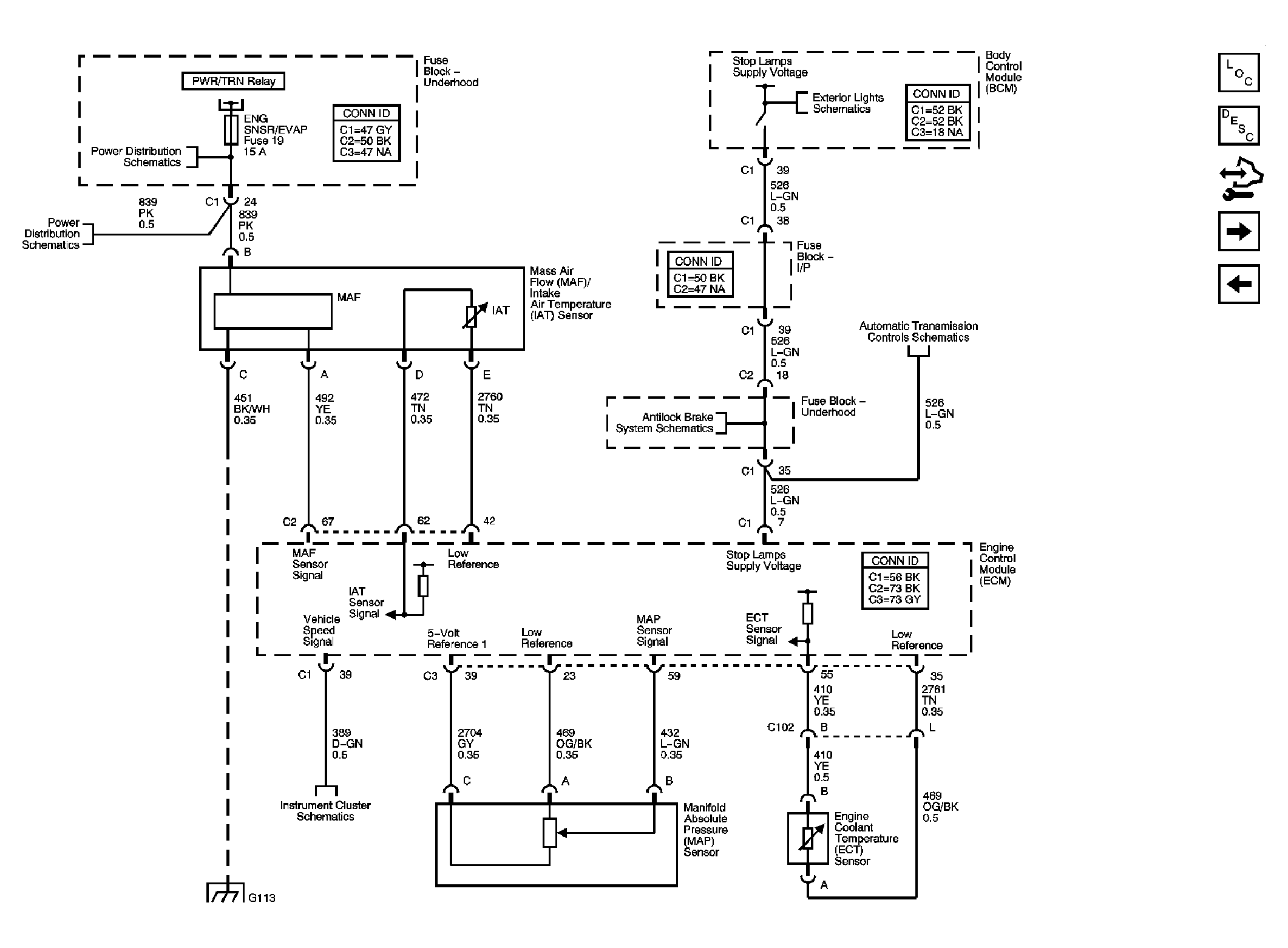

Fig 3: Engine Data Sensors - Pressure, Temperature, Extended Brake Travel, and VSS
GM1740030Courtesy of GENERAL MOTORS CORP.

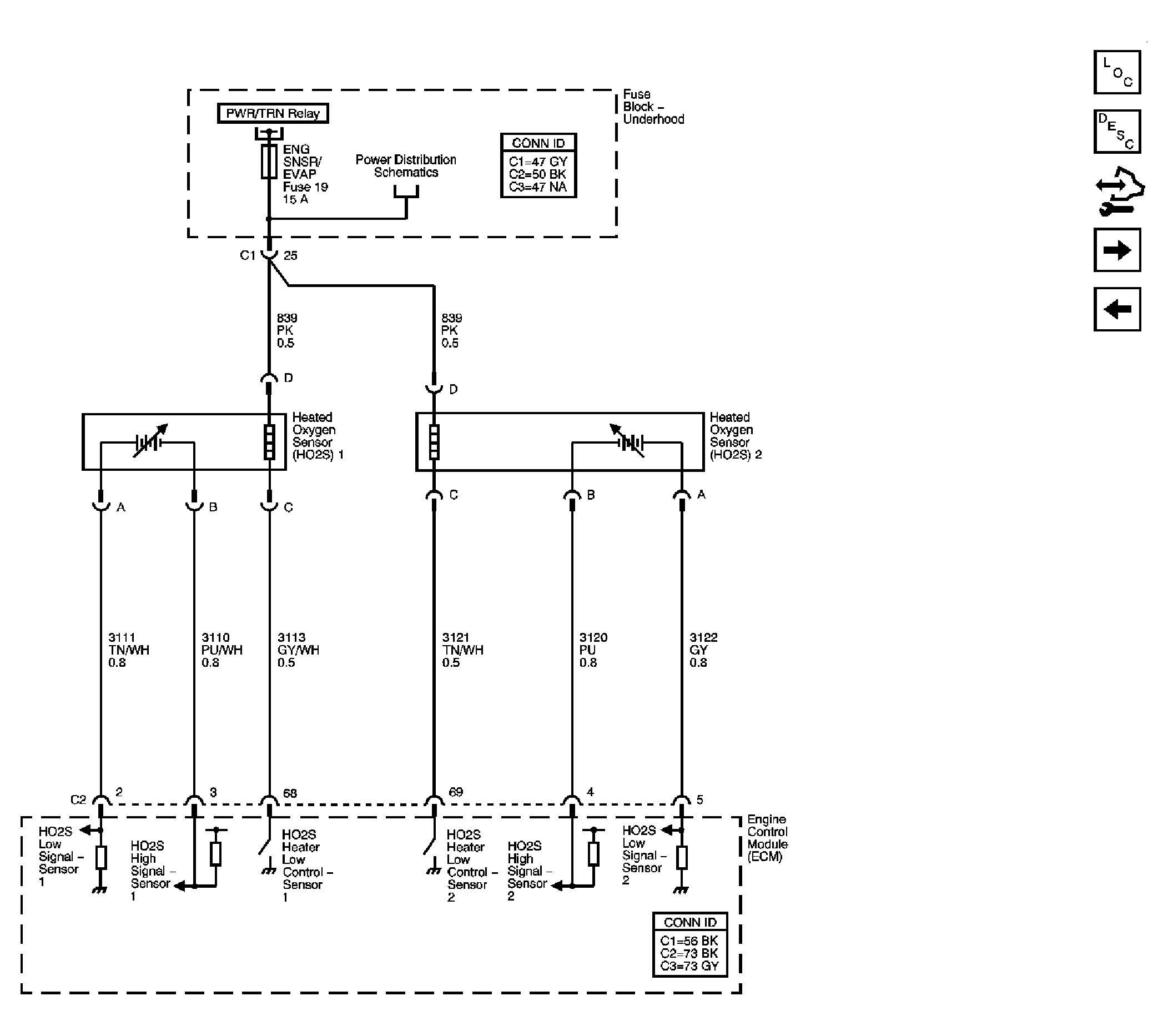

Fig 4: Engine Data Sensors - Oxygen Sensors
GM1740033Courtesy of GENERAL MOTORS CORP.

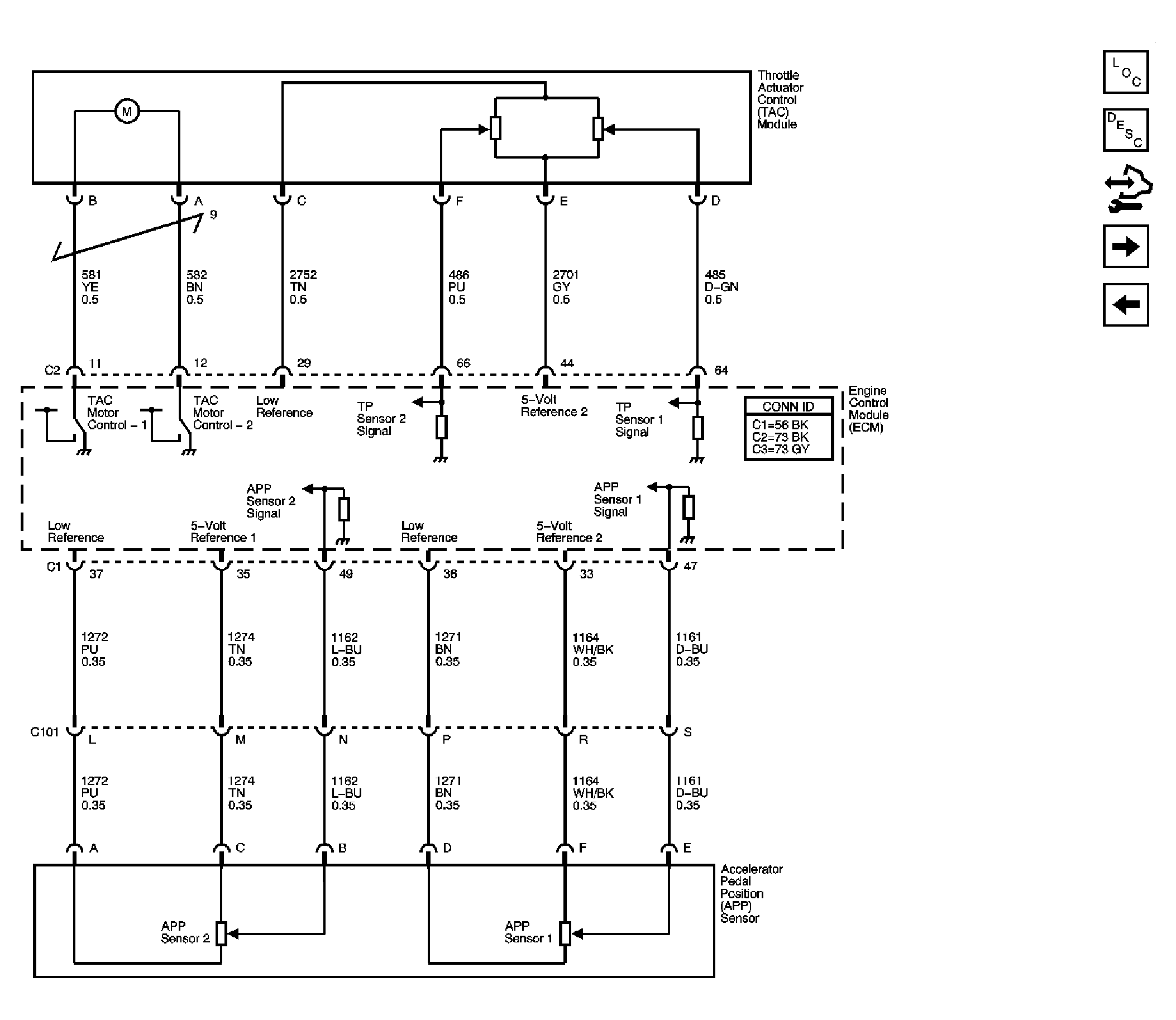

Fig 5: Engine Data Sensors - Throttle Actuator Controls
GM1740034Courtesy of GENERAL MOTORS CORP.

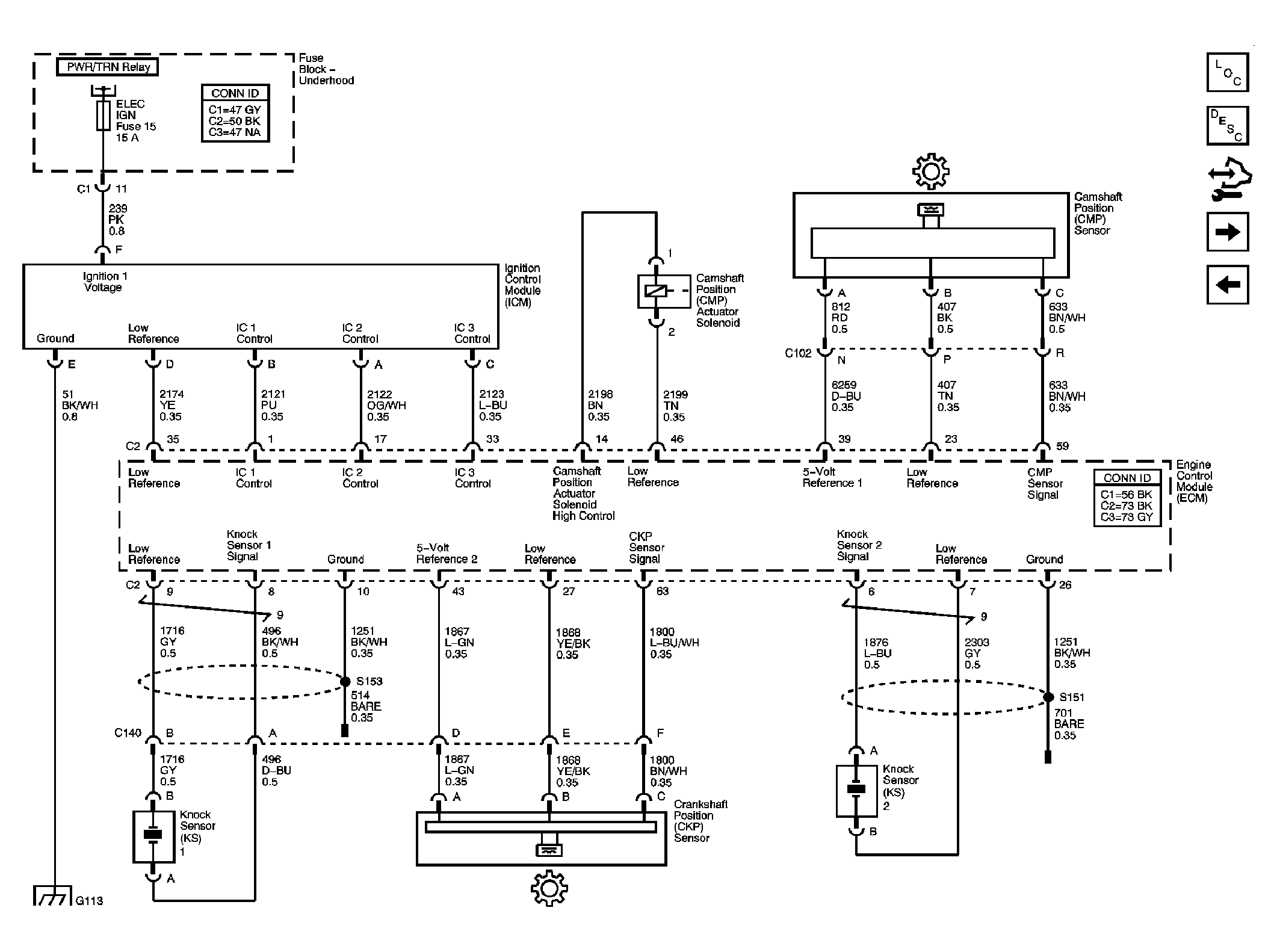

Fig 6: Ignition Controls and Camshaft Control
GM1740035Courtesy of GENERAL MOTORS CORP.

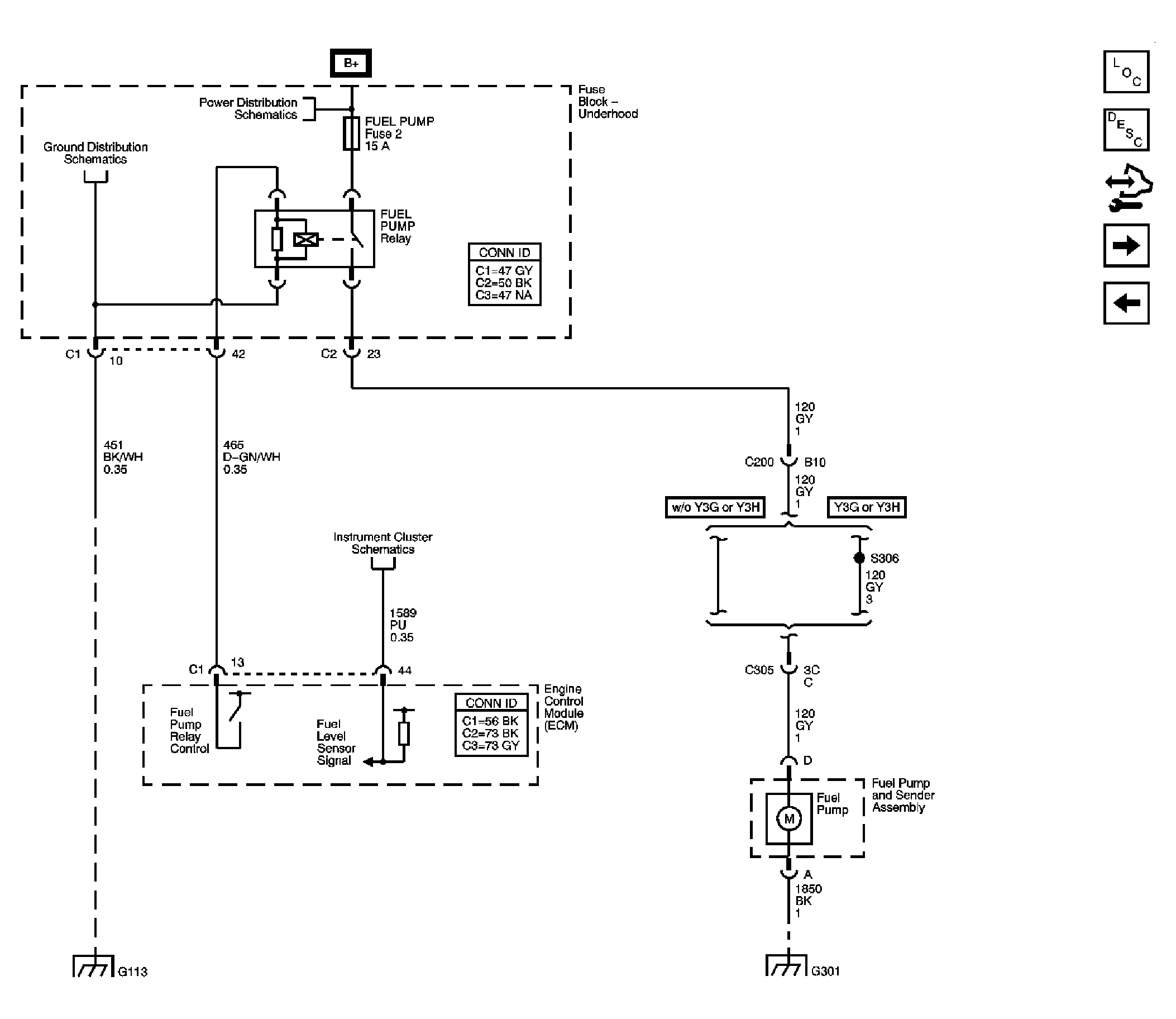

Fig 7: Fuel Controls - Fuel Pump Controls
GM1740036Courtesy of GENERAL MOTORS CORP.

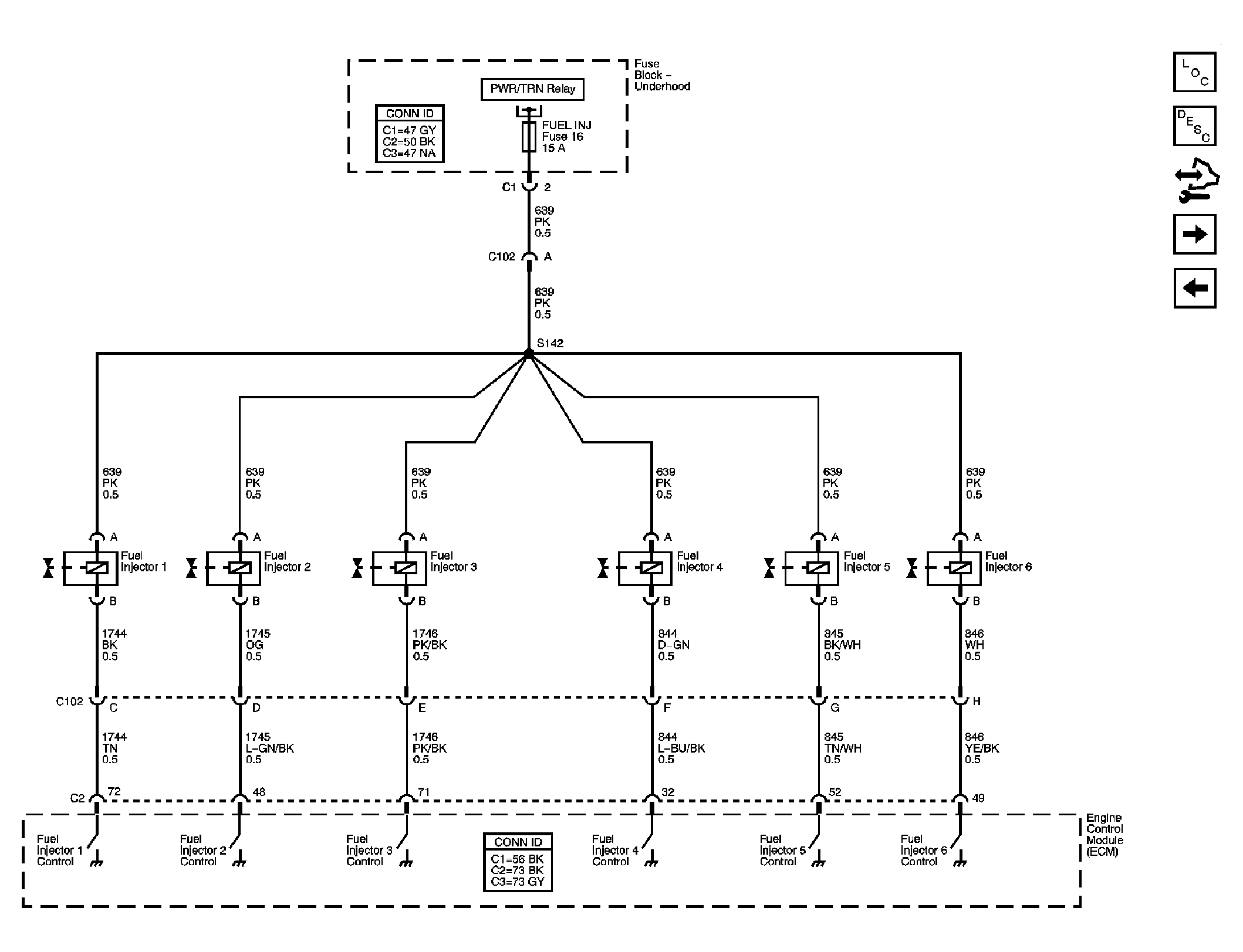

Fig 8: Fuel Controls - Fuel Injectors
GM1740038Courtesy of GENERAL MOTORS CORP.

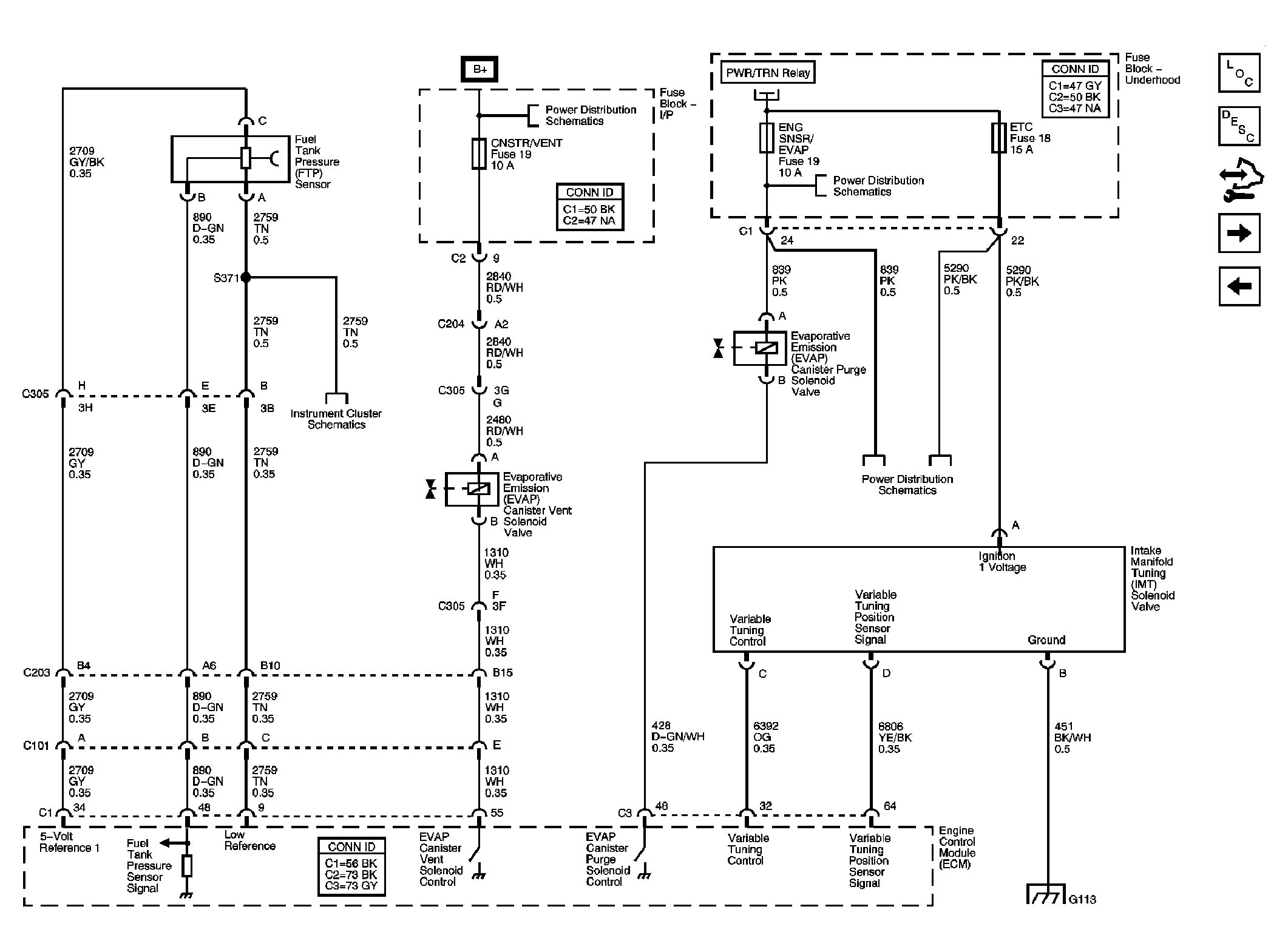

Fig 9: EVAP Controls and Manifold Tuning
GM1740039Courtesy of GENERAL MOTORS CORP.

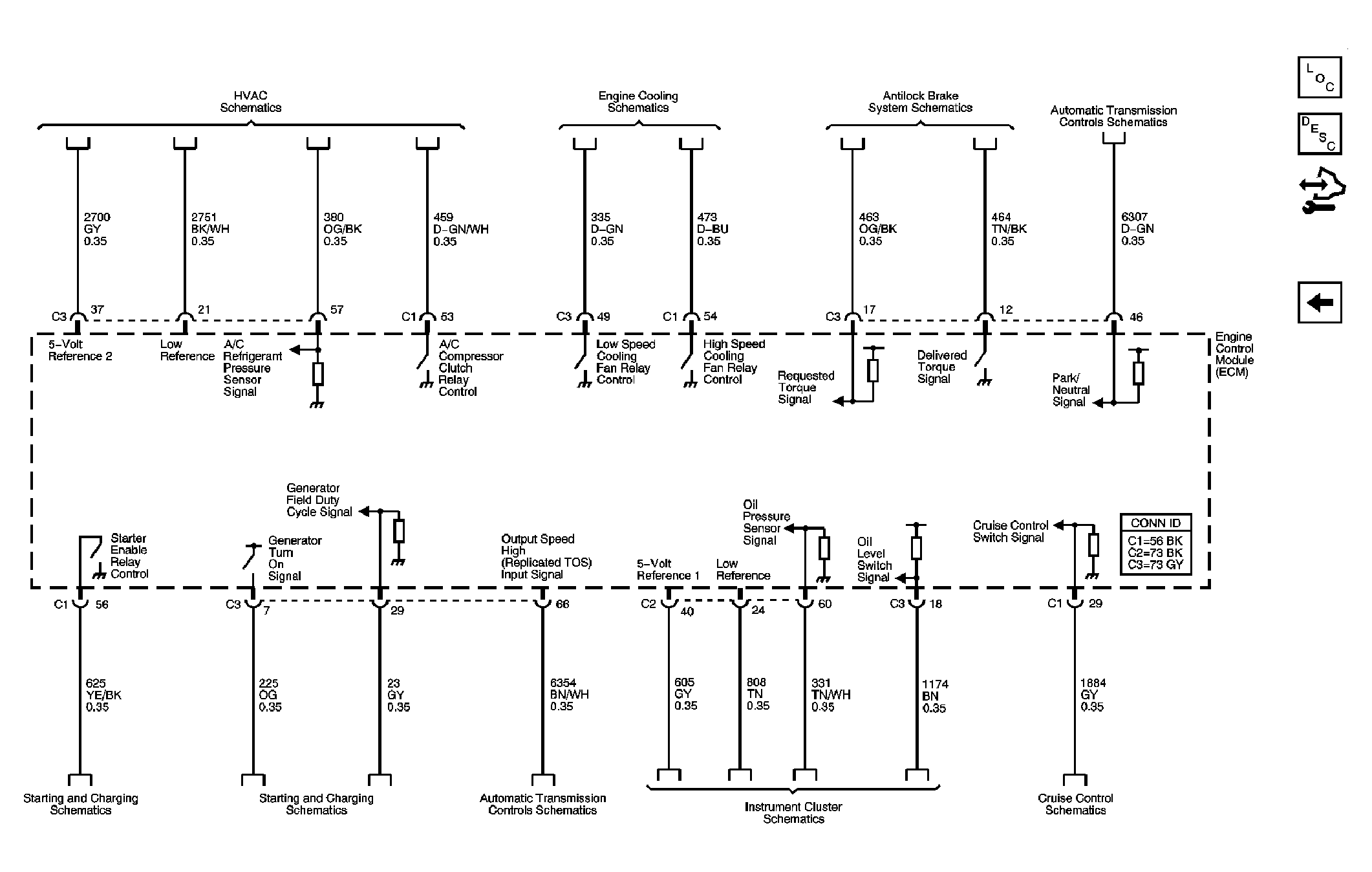

Fig 10: Controlled/Monitored Subsystem References
GM1740040Courtesy of GENERAL MOTORS CORP.
