Installation Procedure

  1. Position the power steering pump inlet pipe/hose to the vehicle.
    2. Fig 1: View Of Clamp, Power Steering Inlet Pipe/Hose And Cooler Pipe
    GM1831719Courtesy of GENERAL MOTORS CORP.
  2. Compress the clamp (1) and connect the power steering inlet pipe/hose (2) to the cooler pipe (3).
    3. NOTE: Refer to Fastener Notice .

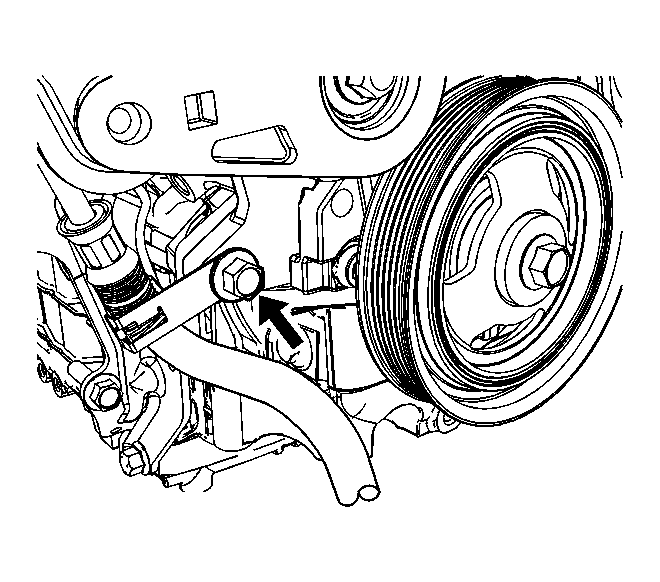

    Fig 2: View Of Power Steering Pump Inlet Pipe Routing Bolt At Engine Block
    GM1831886Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering pump inlet pipe routing bolt from the engine block.

    Tighten:  Tighten the power steering pump inlet pipe/hose routing bolt to 10 N.m (89 lb in).

  4. Remove the right side engine splash shield. Refer to Engine Splash Shield Replacement .
  5. Lower the vehicle.

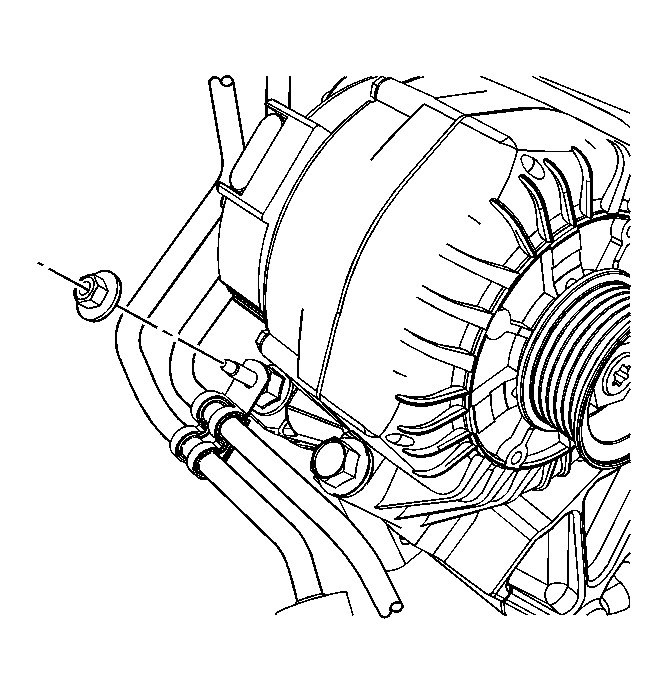

    6. Fig 3: View Of Power Steering Pump And Gear Inlet Pipe/Hoses Routing Clip Nut
    GM1831815Courtesy of GENERAL MOTORS CORP.
  6. Position the power steering pump inlet pipe/hose to the routing clip and install the nut.

    Tighten:  Tighten the power steering pipe/hose routing clip nut to 10 N.m (89 lb in).

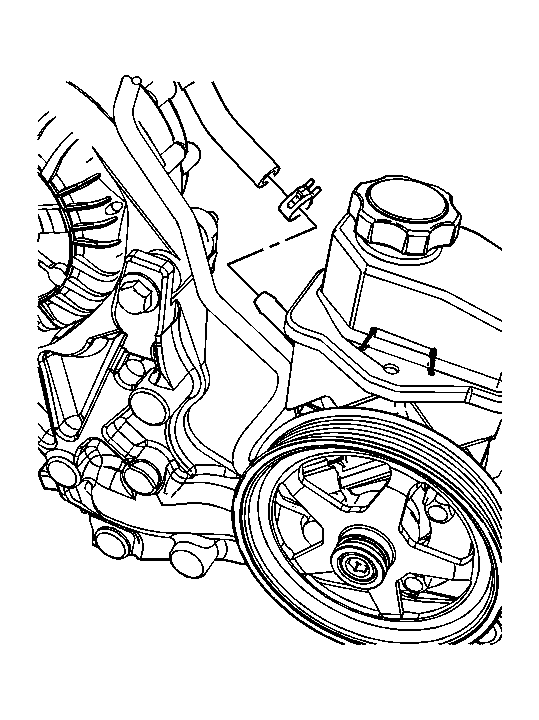

    7. Fig 4: View Of Power Steering Pump Inlet Pipe/Hos
    GM1831861Courtesy of GENERAL MOTORS CORP.
  7. Compress the clamp and connect the power steering pump inlet pipe/hose to the power steering reservoir.
  8. Remove the drain pan from under the vehicle.
  9. Install the drive belt. Refer to Drive Belt Replacement .
  10. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  11. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
