Power Steering Pump Bracket Replacement

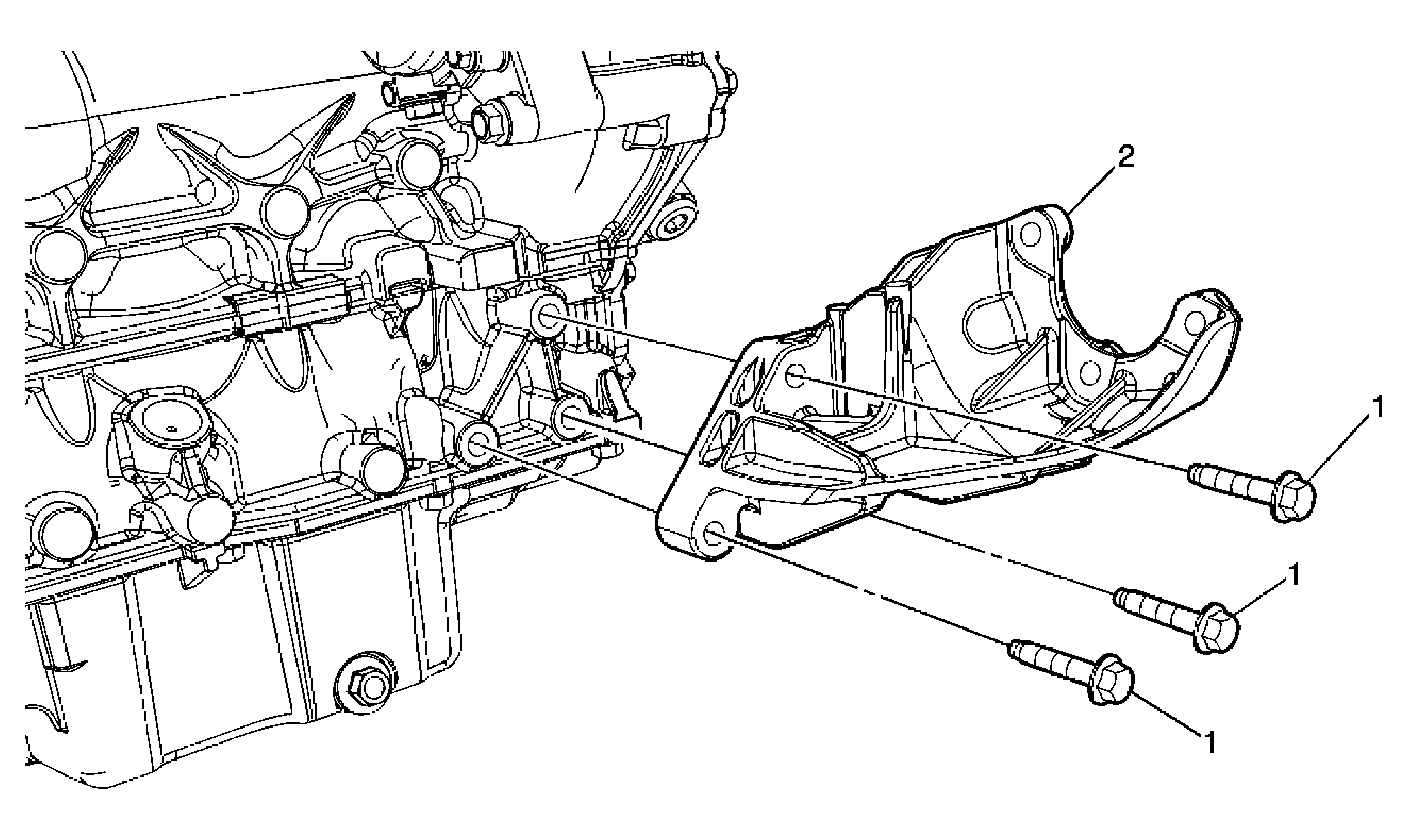

Fig 1: Power Steering Pump Bracket
GM1772550Courtesy of GENERAL MOTORS CORP.
Power Steering Pump Bracket Replacement

Callout Component Name
Preliminary Procedure:
Remove the power steering pump. Refer to Power Steering Pump Replacement .
1 Power Steering Pump Bracket Bolts (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  58 N.m (43 lb ft)
2 Power Steering Pump Bracket
