Power Steering Pump Replacement

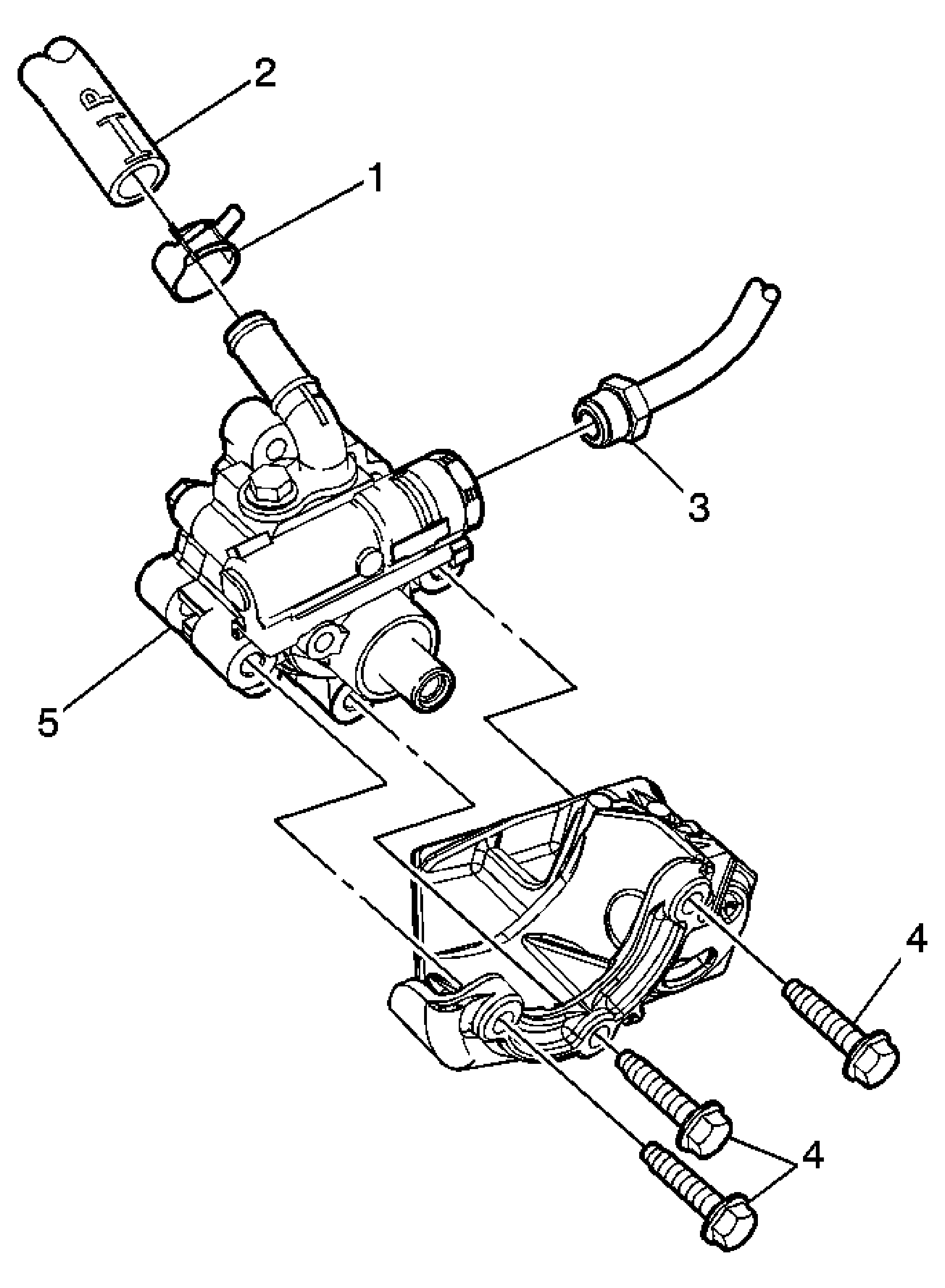

Fig 1: Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Power Steering Reservoir Outlet Hose Clamp Procedure: Remove as much power steering fluid as possible from the power steering fluid reservoir.
2	Power Steering Reservoir Outlet Hose
3	Power Steering Gear Inlet Hose Fitting NOTE: Refer to Fastener Notice . Tighten: 27 N.m (20 lb ft)
4	Power Steering Pump Bolts (Qty: 3) Tighten: 22 N.m (16 lb ft)
5	Power Steering Pump Procedure Remove the power steering pump from the top of the vehicle. Fill and bleed the power steering system. Refer to Power Steering System Bleeding
