Front Seat Belt Buckle Replacement

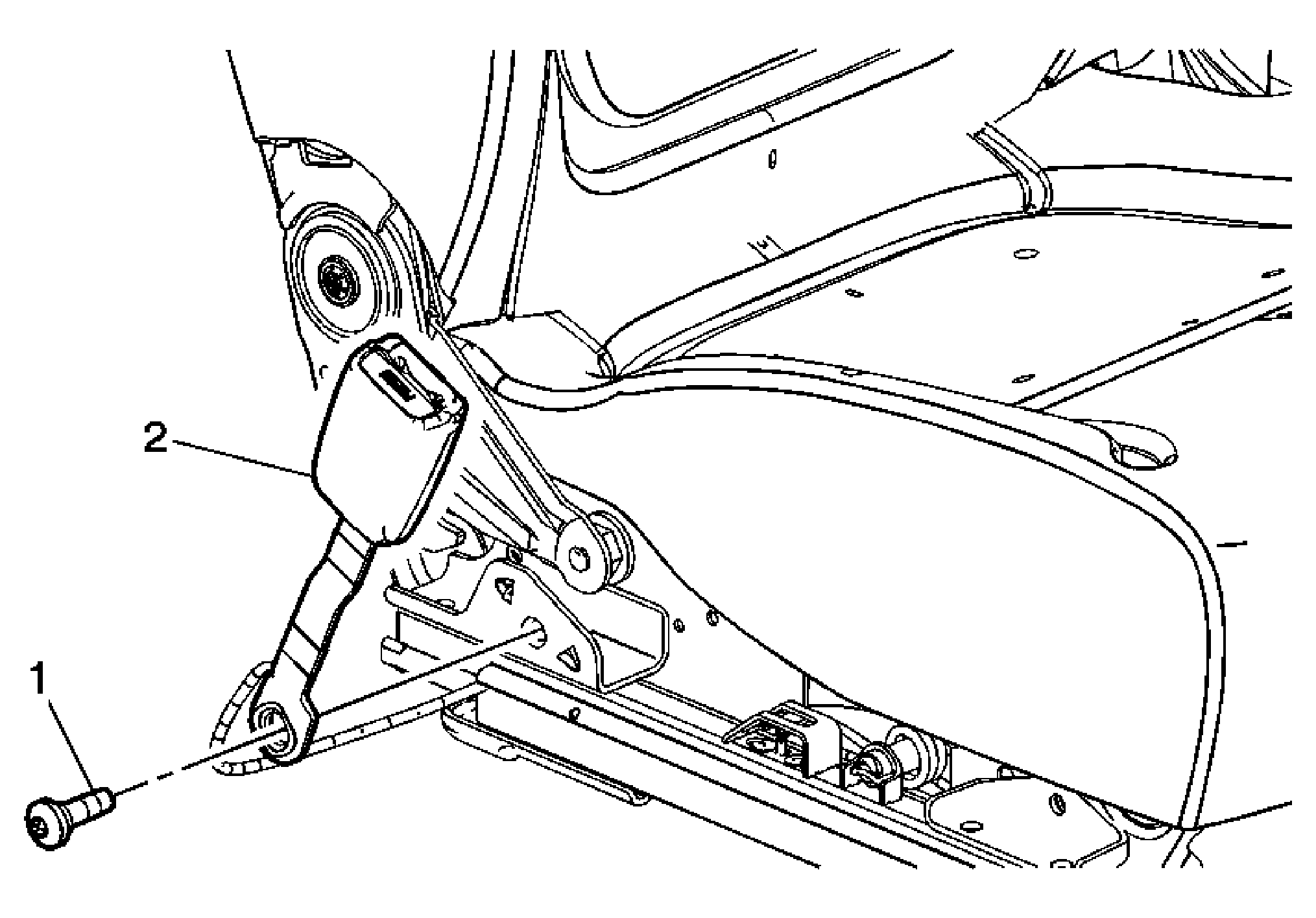

Fig 1: Seat Belt Buckle - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedure: Remove the front seat. Refer to Seat Replacement .
1	Bolt, Seat Belt Buckle Tighten: 45 N.m (33 lb ft)
2	Belt, Seat Buckle Assembly
