Steering Gear Replacement

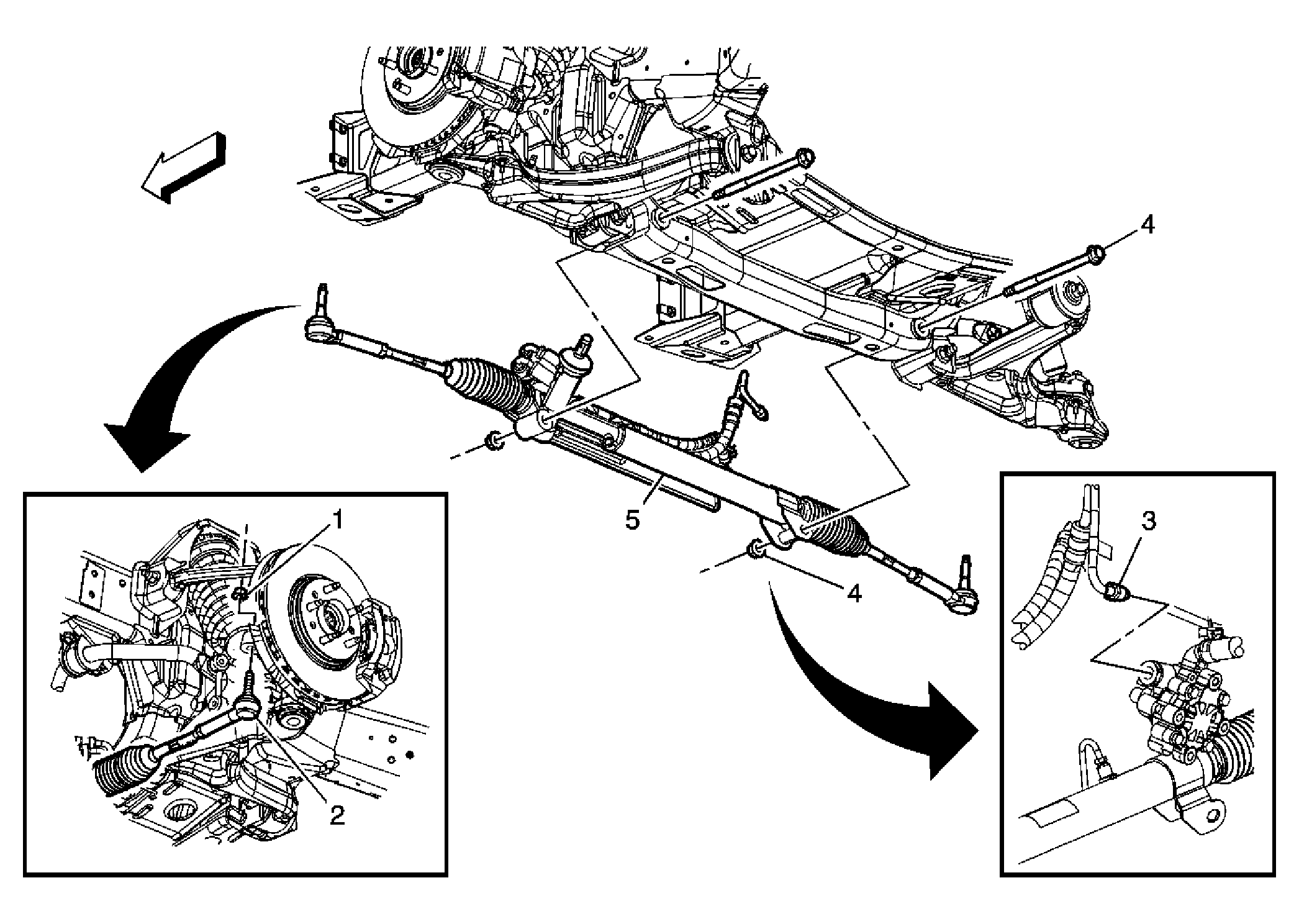

Fig 1: Power Steering Gear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Secure the steering wheel utilizing a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components: The steering column The intermediate shaft The steering gear After disconnecting these components, do not move the front tires and wheels. Failure to follow these procedures may cause improper alignment of some components during installation and result in possible damage to the SIR coil. Preliminary Procedure: Remove the front tire/wheel assemblies. Refer to Tire and Wheel Removal and Installation
1	Steering Linkage Outer Tie Rod Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 30 N.m (22 lb ft) plus an additional 115 degrees
2	Steering Linkage Outer Tie Rod Ends (Qty: 2) Procedure: Refer to Rack and Pinion Outer Tie Rod End Replacement for removal.
3	Steering Gear Inlet and Outlet Hose Fittings (Qty: 2) Procedure Place drain pans under the vehicle as needed to catch any power steering fluid. Drain as much power steering fluid as possible from the power steering system. Tighten: 27 N.m (20 lb ft)
4	Steering Gear Bolts/Nuts (Qty: 2) Tighten: 60 N.m (44 lb ft)
5	Steering Gear Procedure Remove the intermediate steering shaft lower bolt from the steering gear. Refer to Intermediate Steering Shaft Replacement (good) . Fill and bleed the power steering system. Refer to Power Steering System Bleeding . Adjust the front toe. Refer to Front Toe Adjustment .
