Heated Glass Element

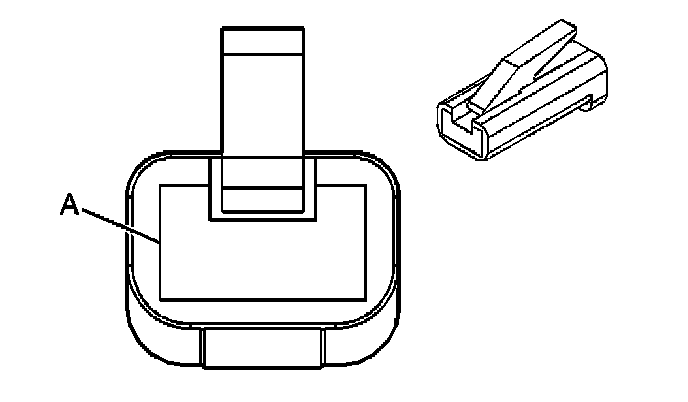

Window Systems Connector End Views

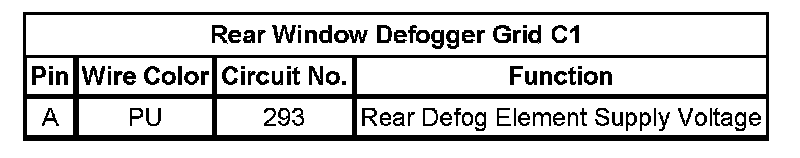

Rear Window Defogger Grid C1

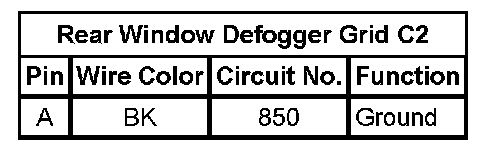

Rear Window Defogger Grid C2
