Impact Sensor

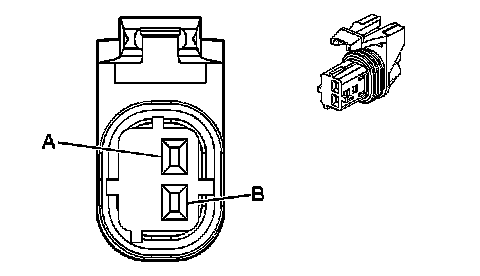

SIR Connector End Views

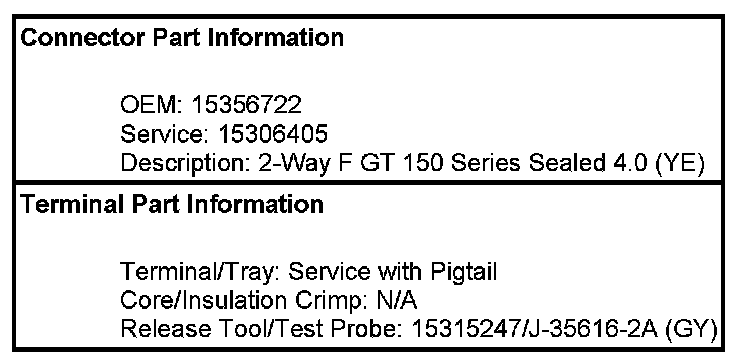

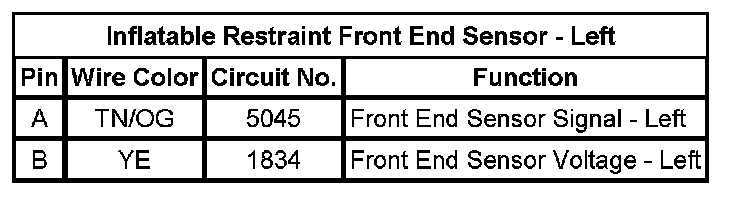

Inflatable Restraint Front End Sensor - Left

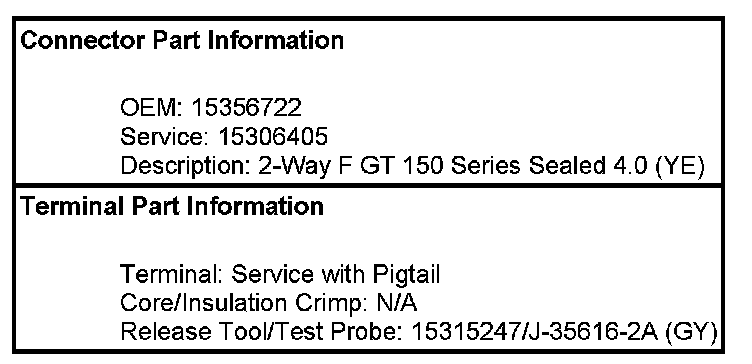

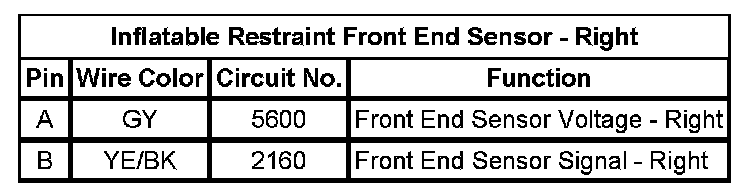

Inflatable Restraint Front End Sensor - Right
