Power Window Motor



Window Systems Connector End Views

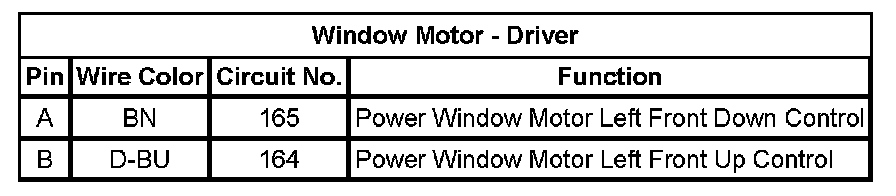

Window Motor - Driver

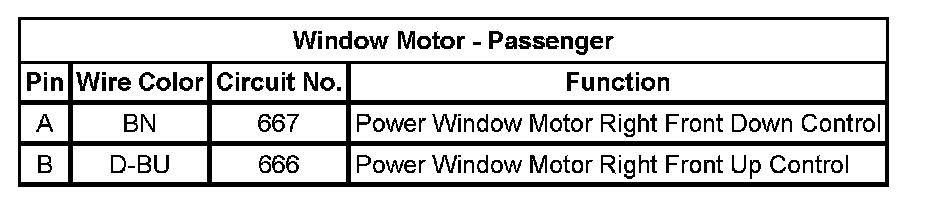

Window Motor - Passenger
