Windows: Locations

Window Systems Component Views

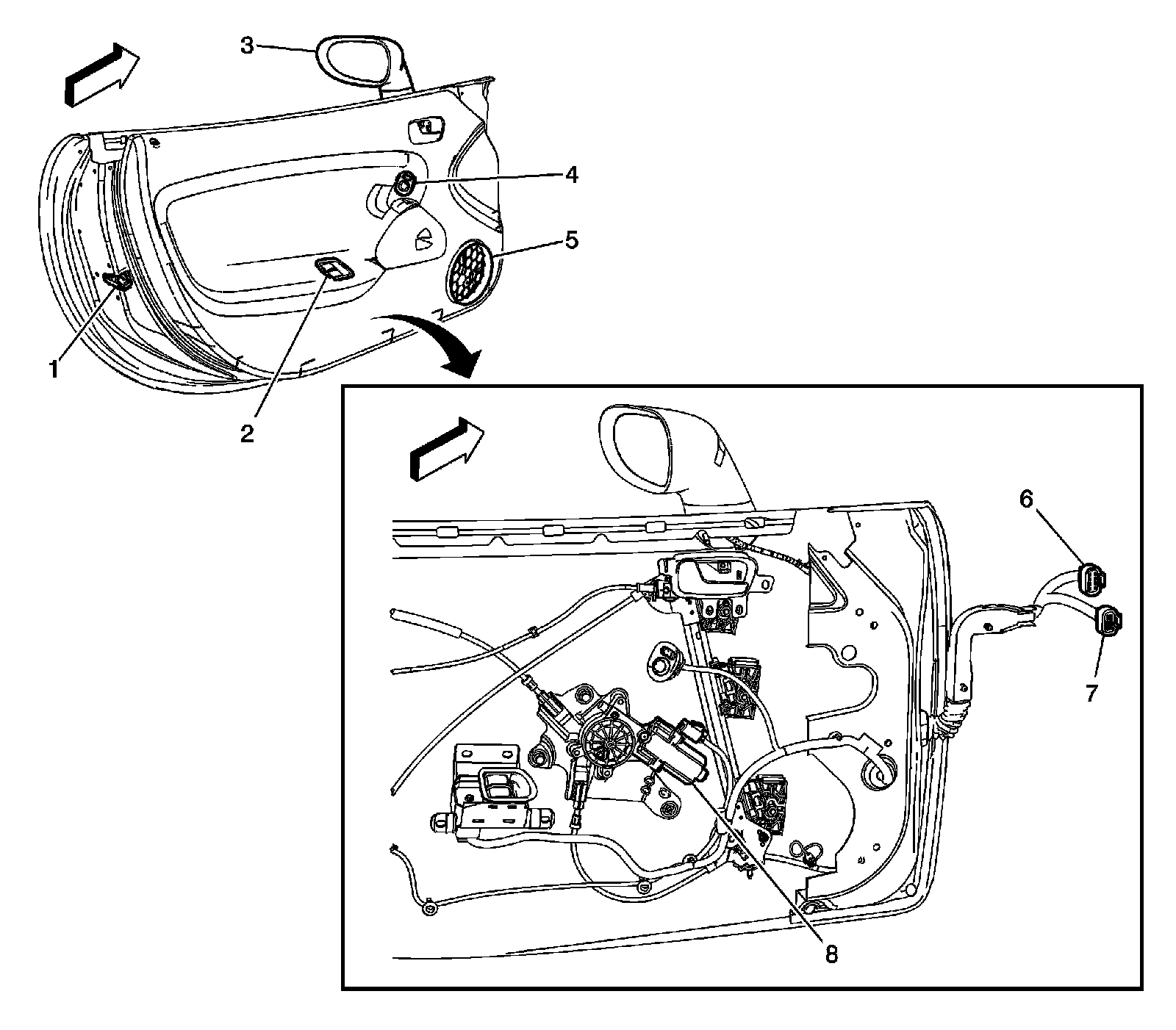

Driver Door Components




1 - Door Lock Actuator - Driver
2 - Window Switch - Driver (A31)
3 - Outside Rearview Mirror - Driver (D48)
4 - Outside Rearview Mirror Switch (D48)
5 - Speaker - LF Door
6 - C166
7 - C165
8 - Window Motor - Driver (A31)

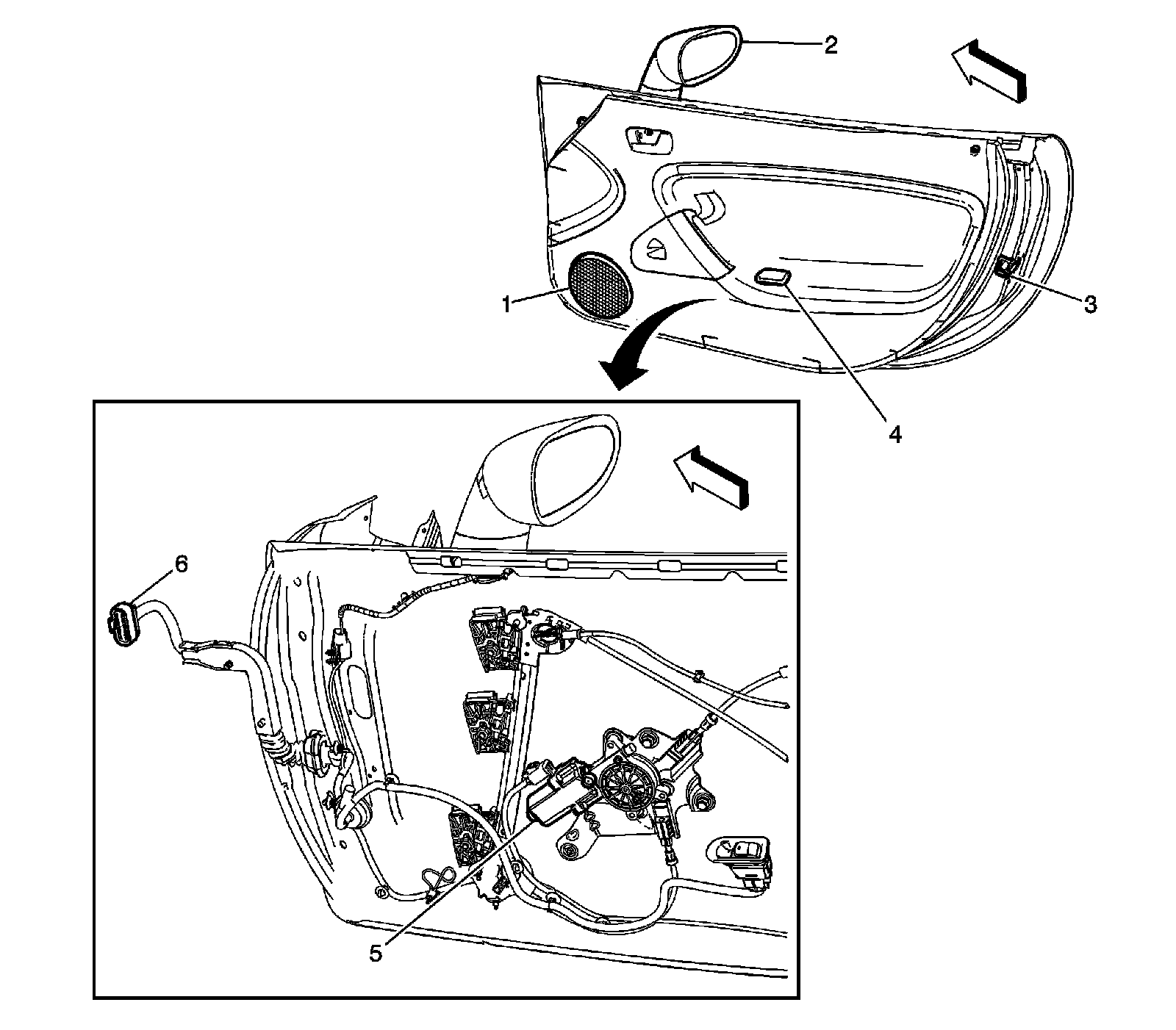

Passenger Door Components




1 - Speaker - RF Door
2 - Outside Rearview Mirror - Passenger (D48)
3 - Door Lock Actuator - Passenger
4 - Window Switch - Passenger (A31)
5 - Window Motor - Passenger (A31)
6 - C167

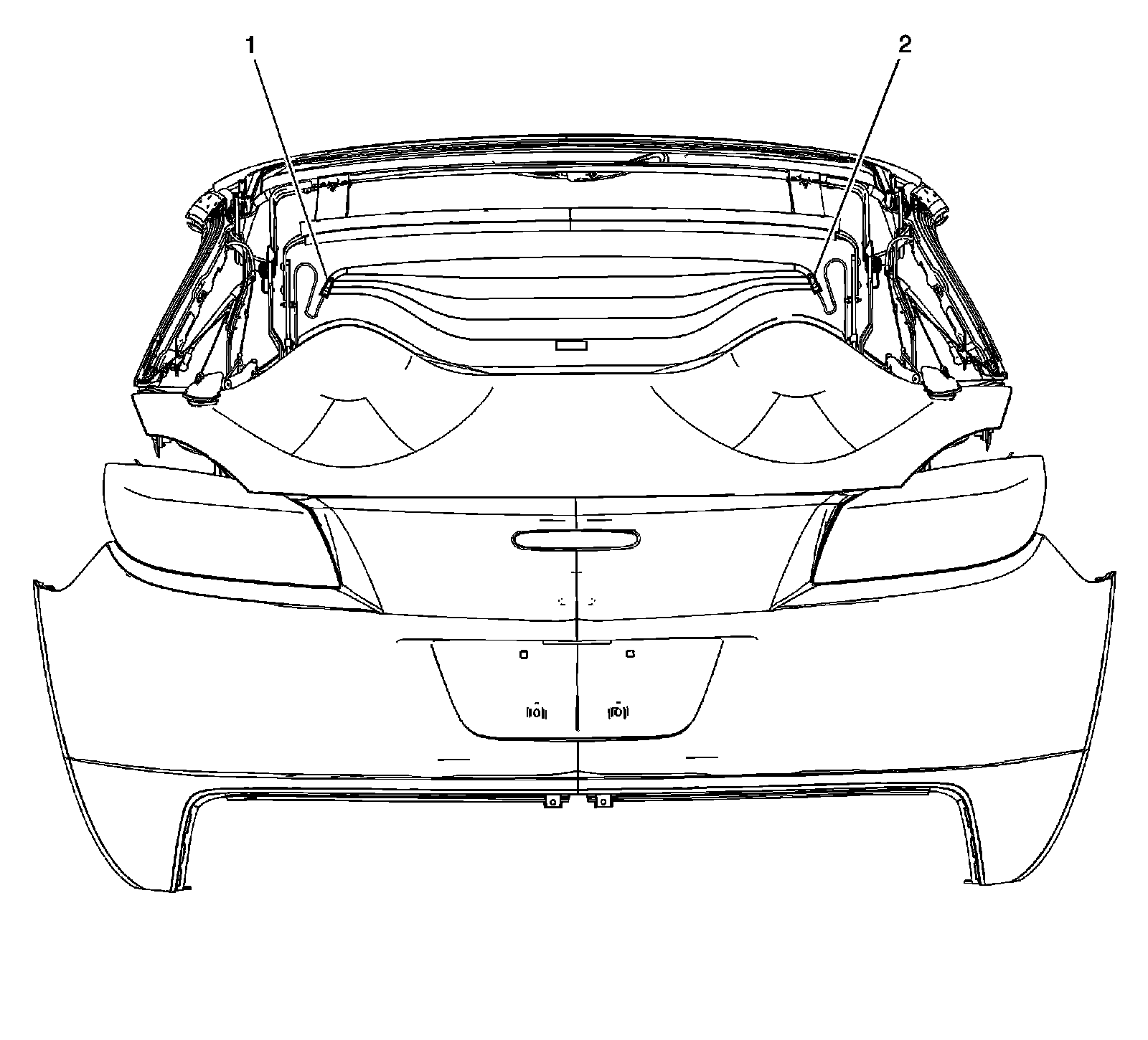

Center of Rear Window




1 - Rear Window Defogger Grid C1
2 - Rear Window Defogger Grid C2
