Seat Temperature Control Module: Locations

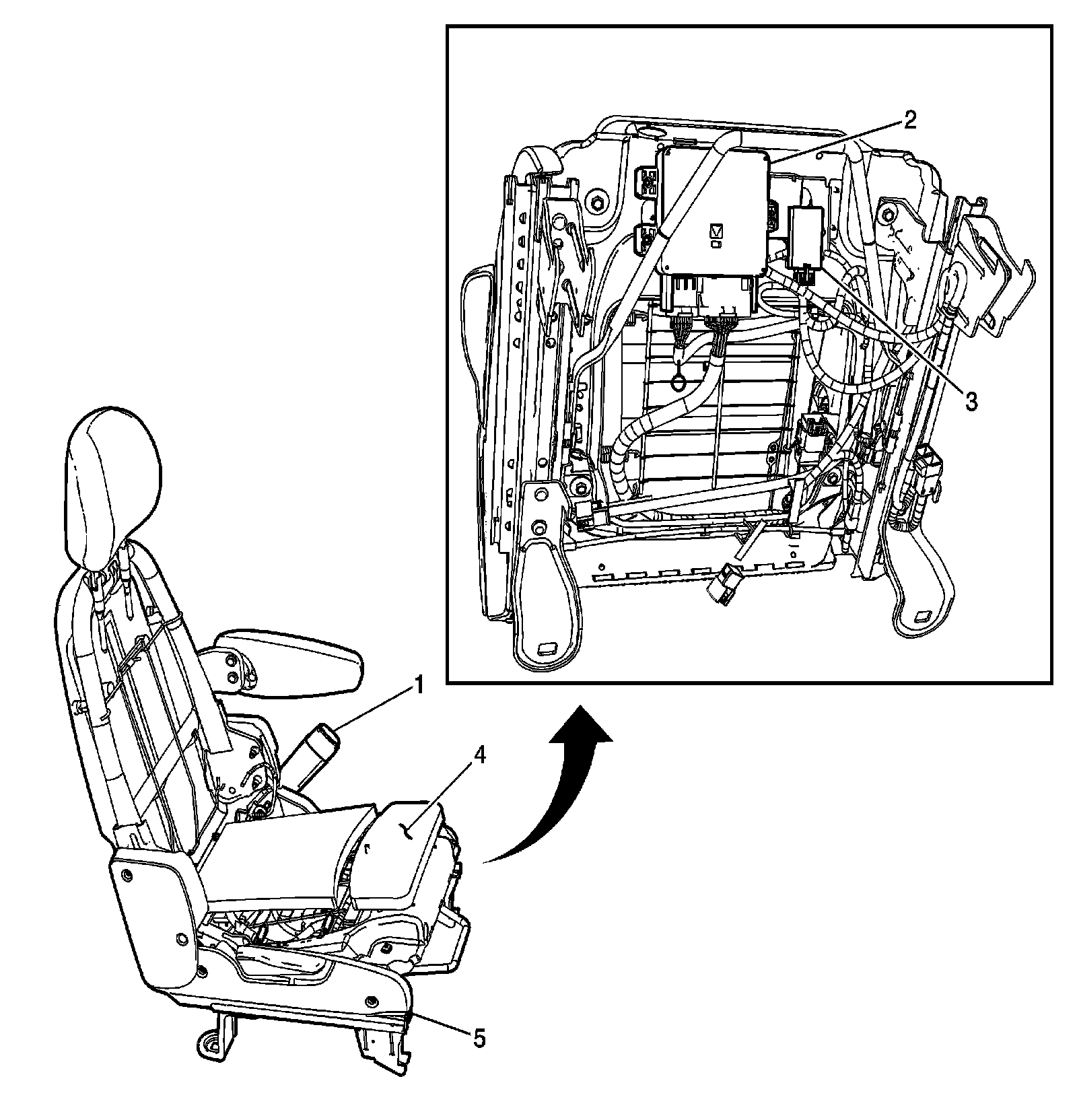

Heated/Cooled Seat Component Views

Under the Passenger Seat




1 - Seat Belt Switch
2 - Inflatable Restraint Passenger Presence System (PPS) Module
3 - Heated Seat Module (KA1)
4 - Inflatable Restraint Passenger Presence System (PPS) Sensor
5 - Passenger Seat
