Seat Temperature Control Module: Service and Repair

Front Seat Heater Control Module Replacement

Removal Procedure

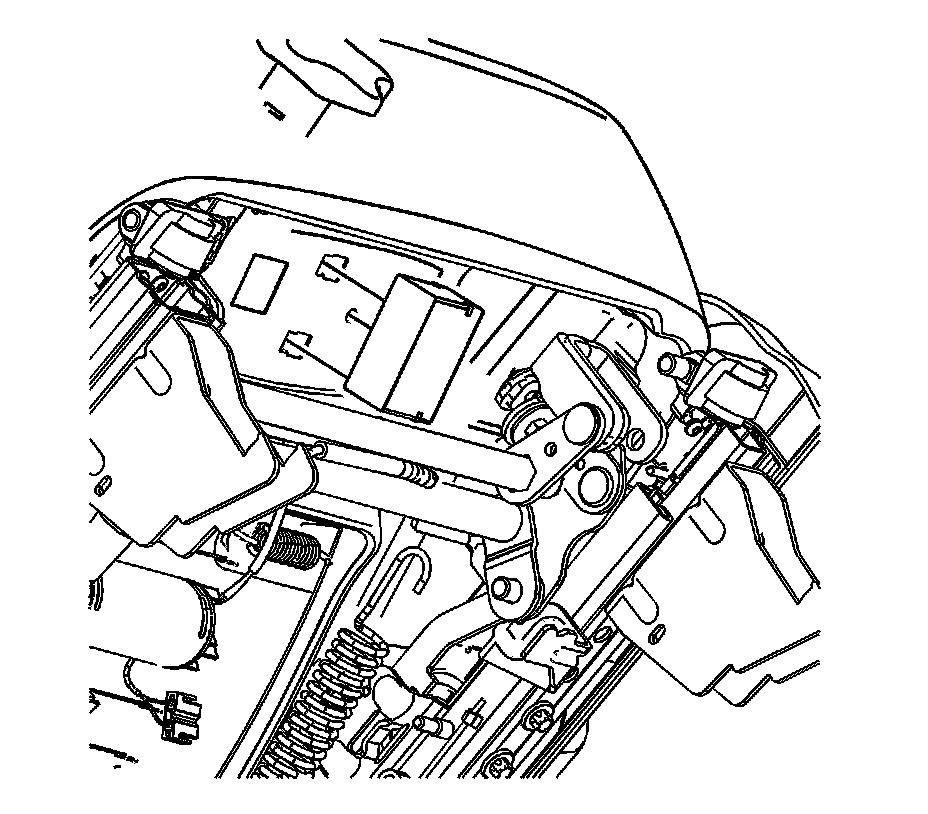

1. Remove the heated seat module retainer.

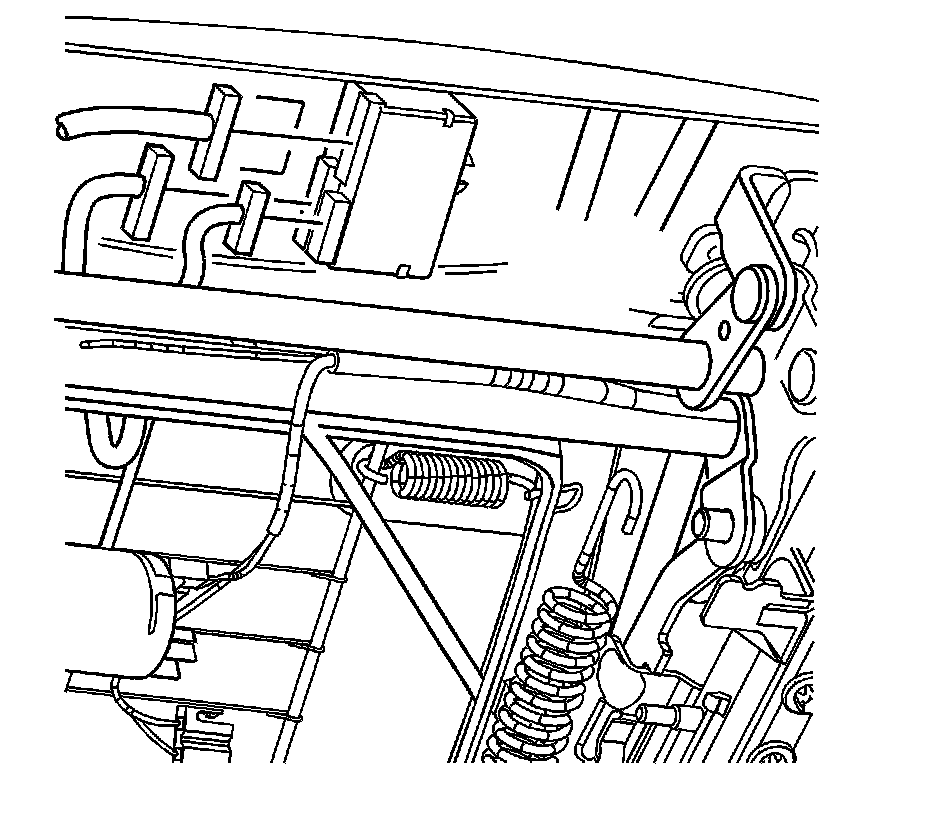

2. Disconnect the electrical connectors from the heated seat module.

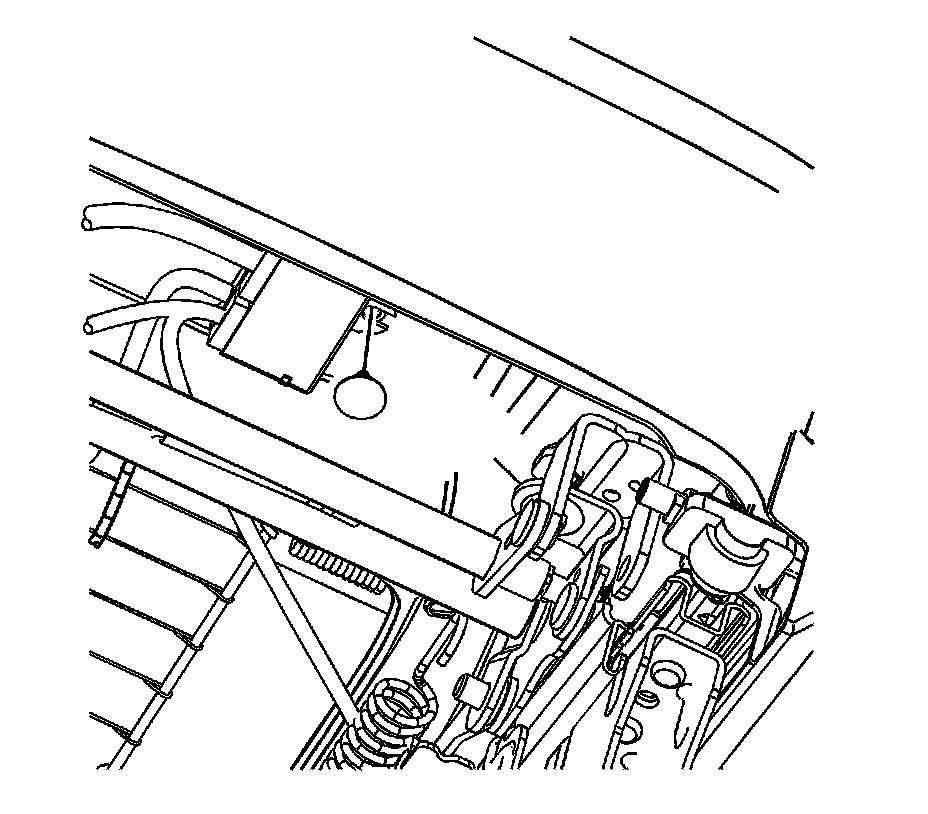

3. Remove the module.

Installation Procedure

1. Connect the electrical connector to the heated seat module.




2. Install the module with the retainer to the seat pan.
3. Test for proper operation of the seat heater.
4. Refer to Control Module References for programming and setup information. Programming and Relearning
