Control Module, A/T
Automatic Transmission Related Connector End Views

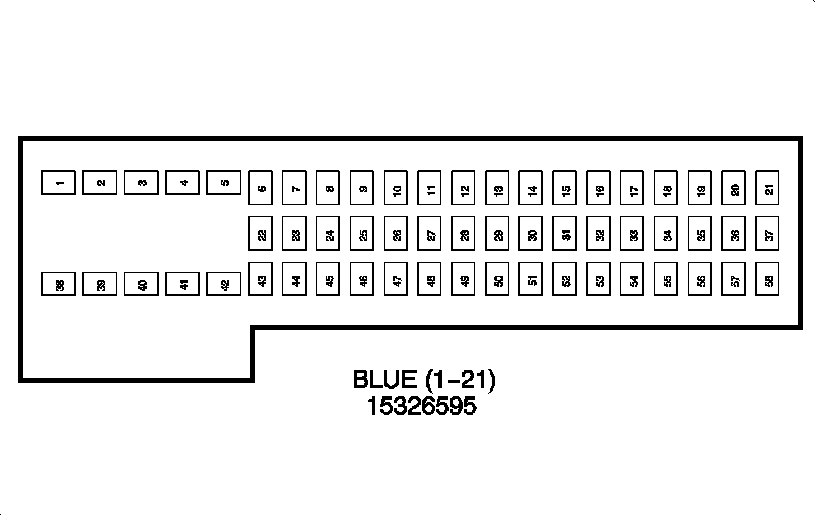

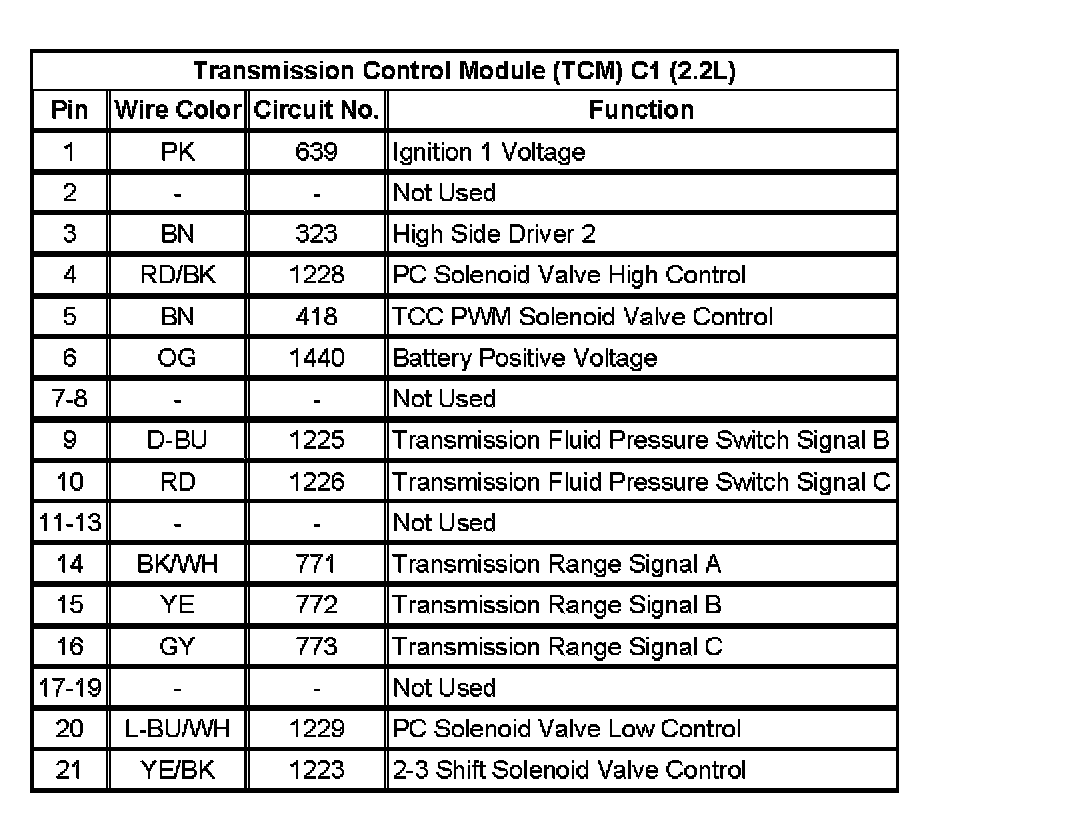

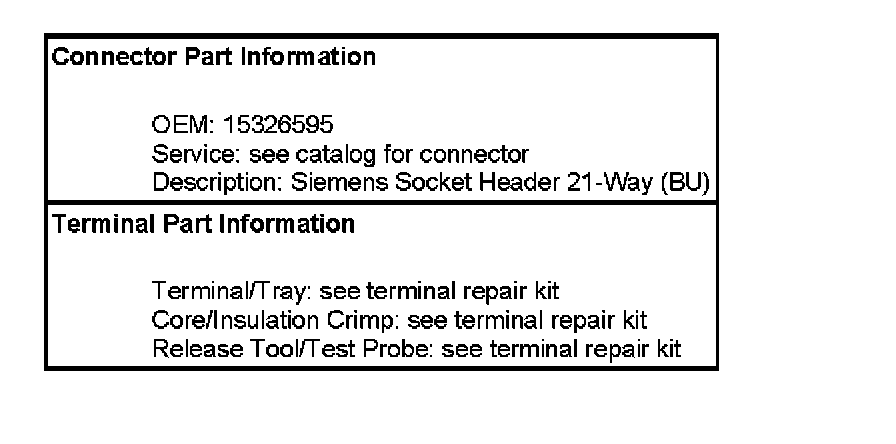

Transmission Control Module (TCM) C1 (2.2L):

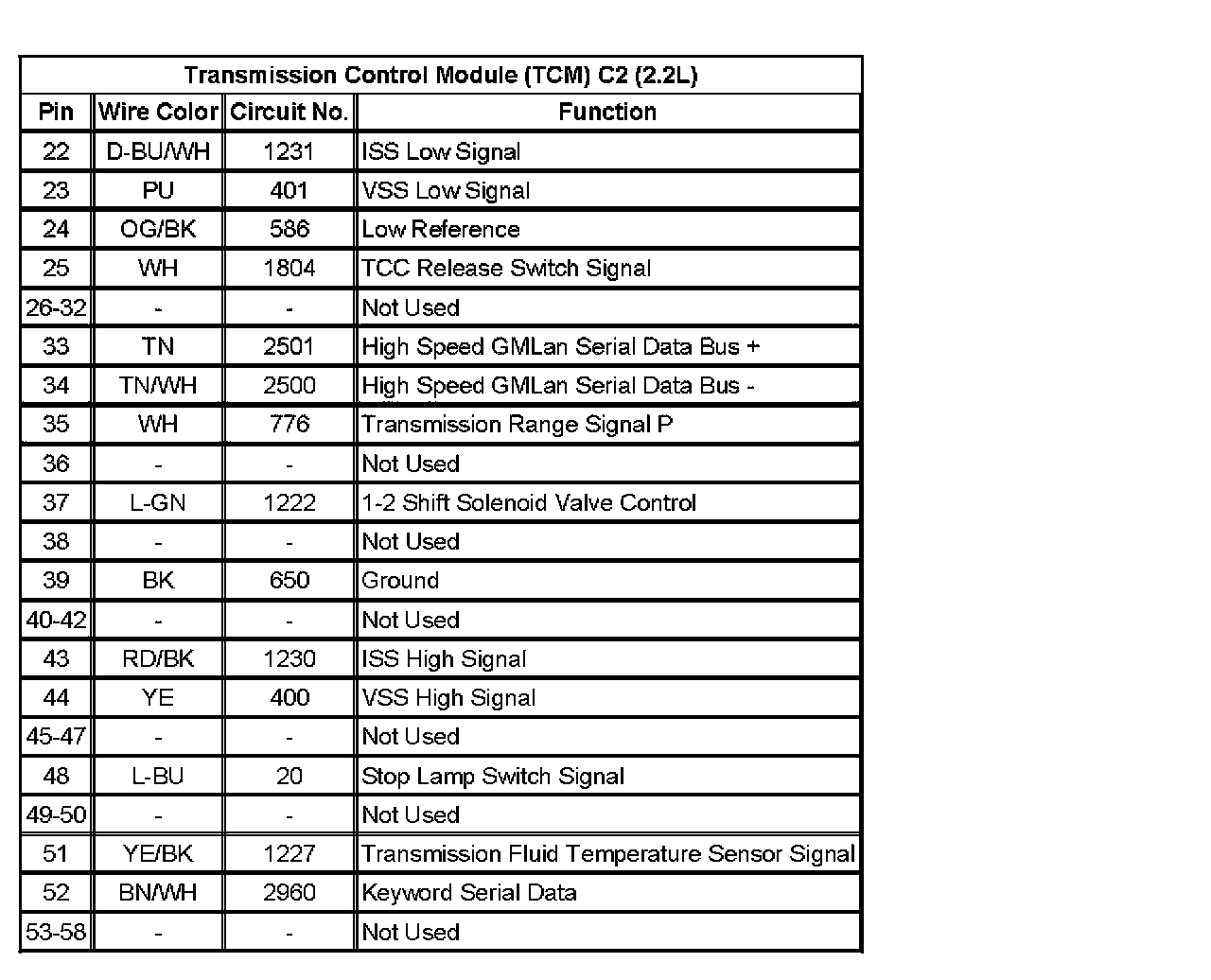

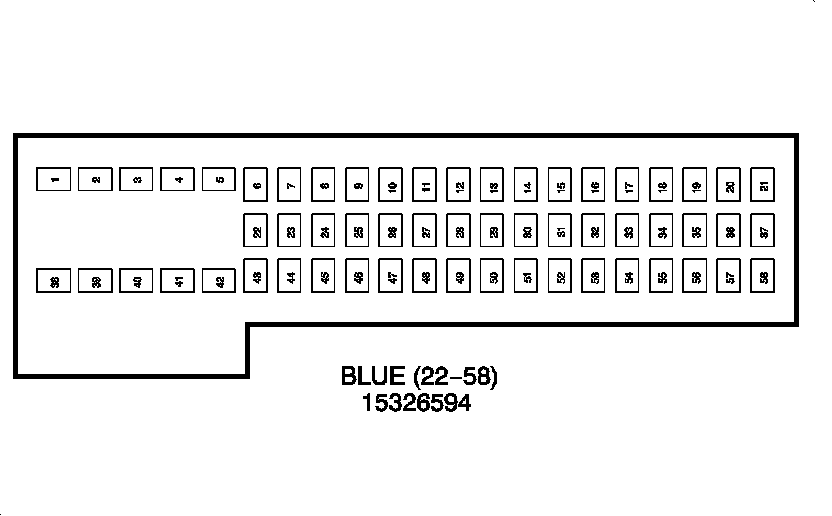

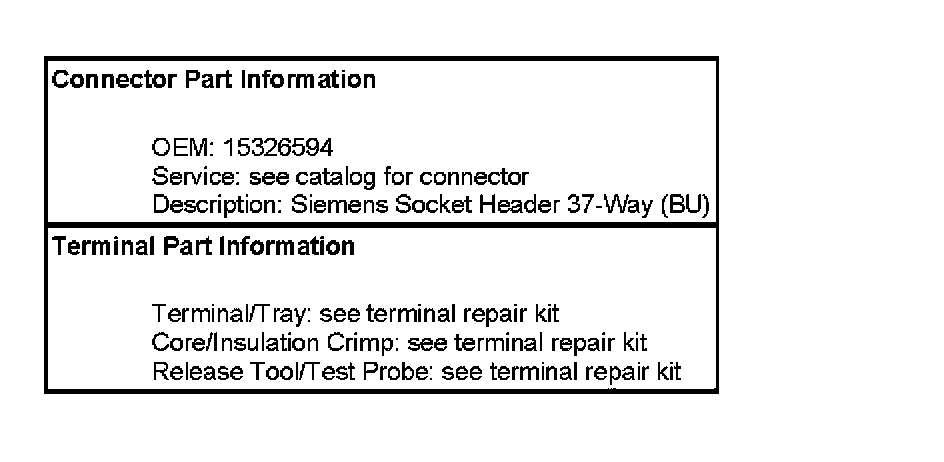

Transmission Control Module (TCM) C2 (2.2L):
