System Diagram



Cruise Control Connector End Views

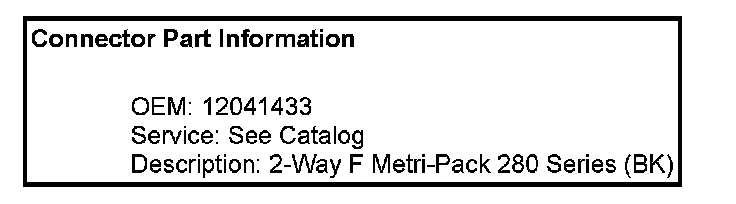

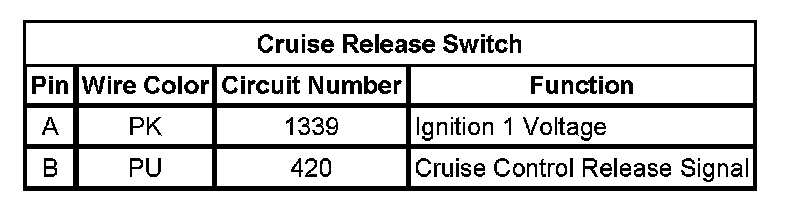

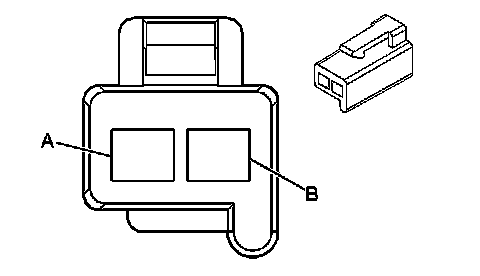

Cruise Release Switch

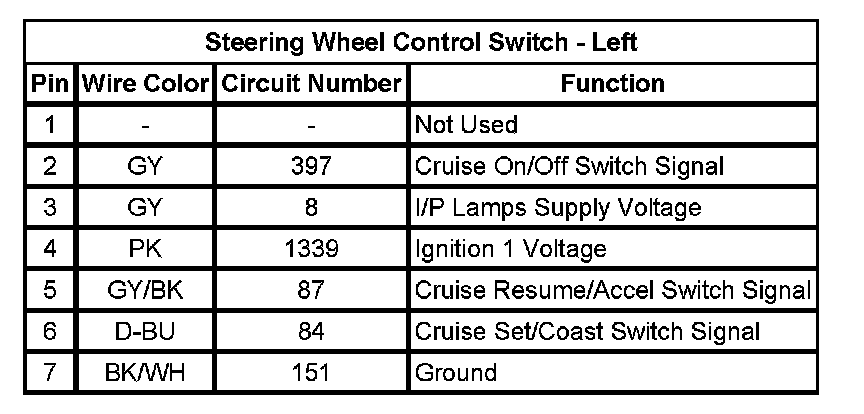

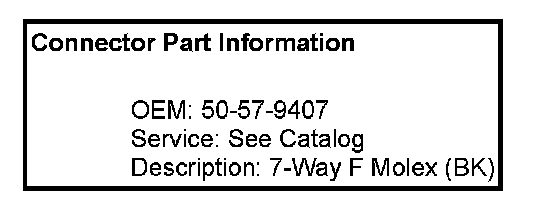

Steering Wheel Control Switch - Left

Steering Wheel Controls - Left:

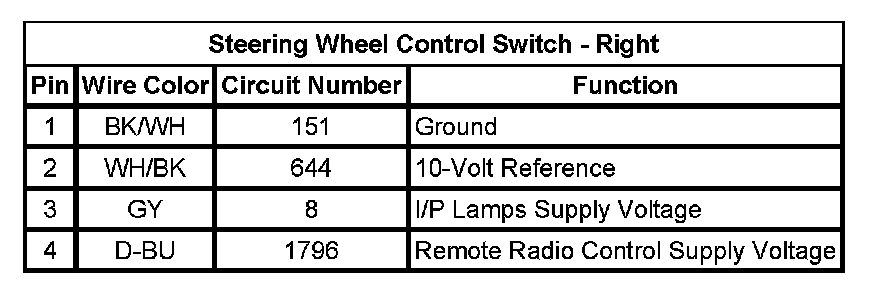

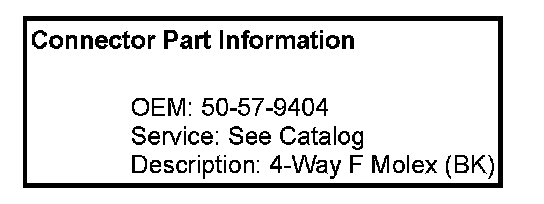

Steering Wheel Control Switch - Right

Steering Wheel Controls - Right (UK3):
