Secondary/Configurable Control Connector End Views



Secondary/Configurable Control Connector End Views

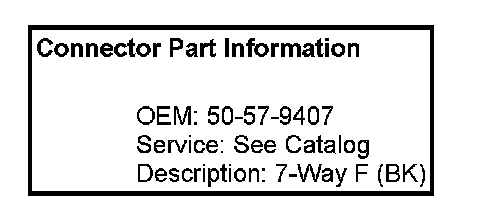

Steering Wheel Control Switch - Left

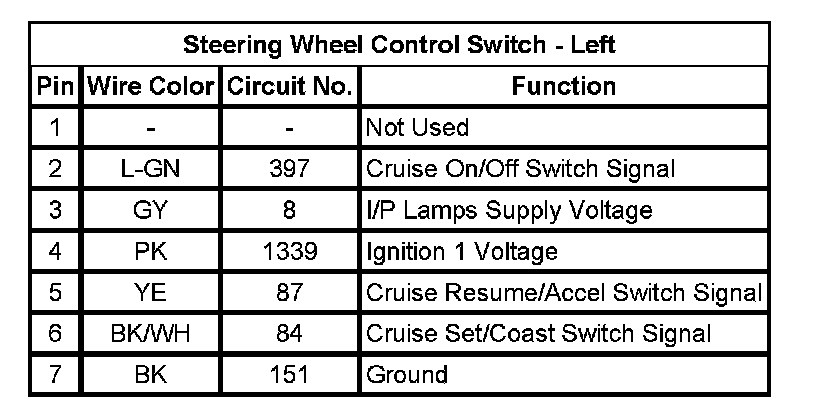

Steering Wheel Controls - Left:

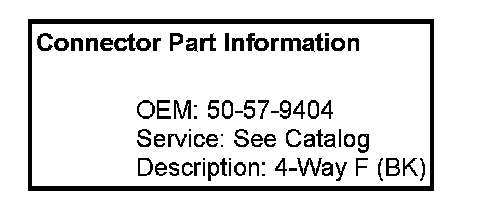

Steering Wheel Control Switch - Right

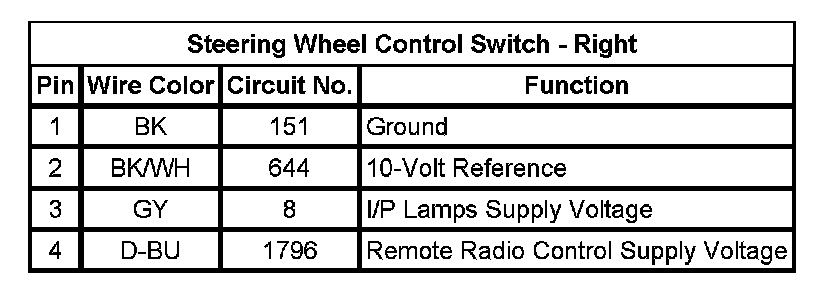

Steering Wheel Controls - Right (UK3):
