System Diagram



Power Steering Connector End Views

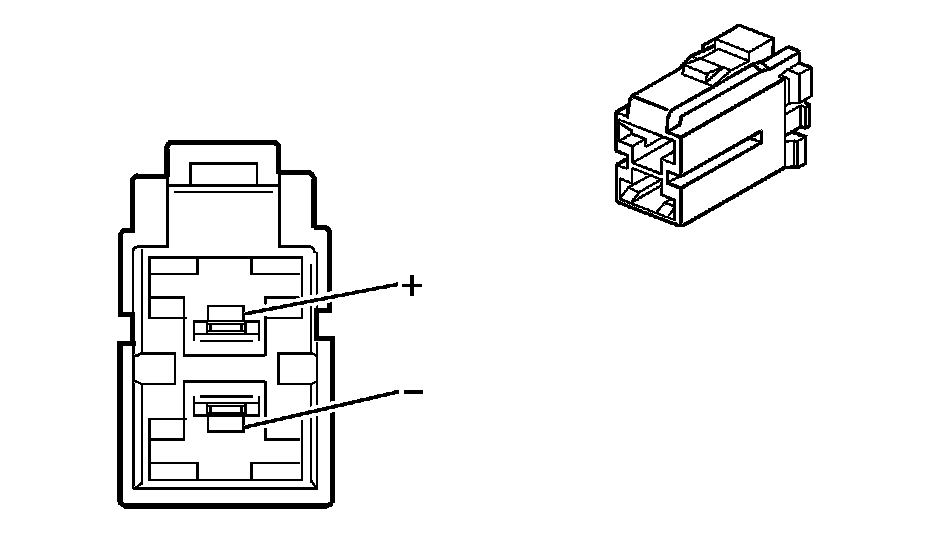

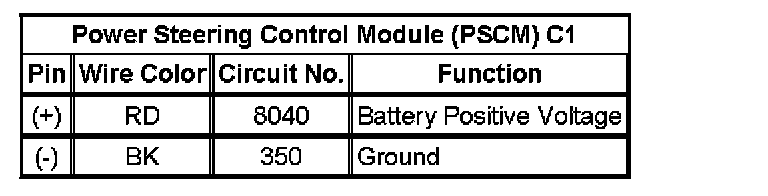

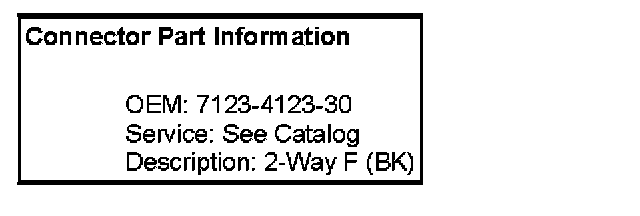

Power Steering Control Module (PSCM) C1:

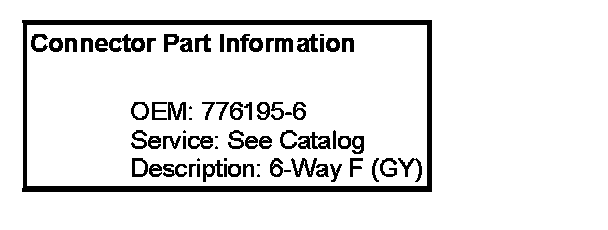

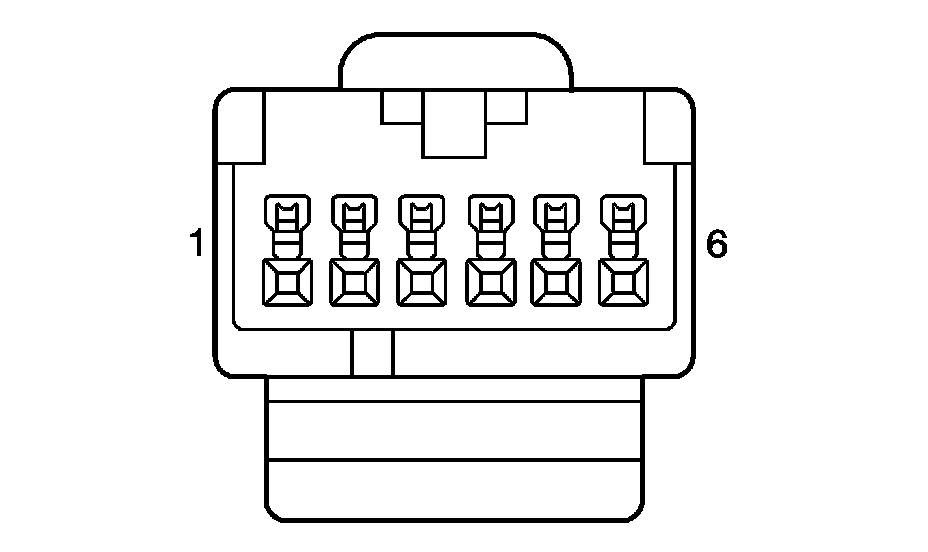

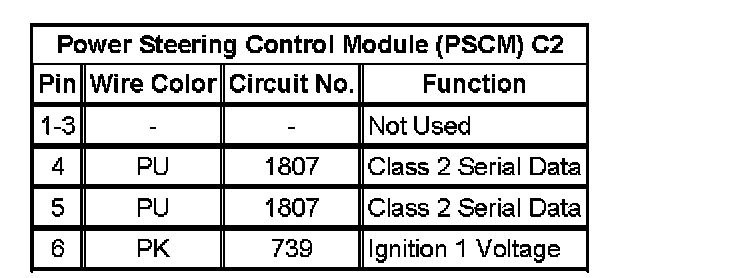

Power Steering Control Module (PSCM) C2:

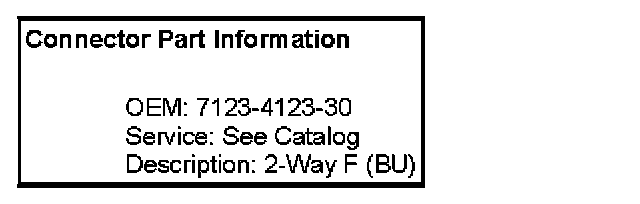

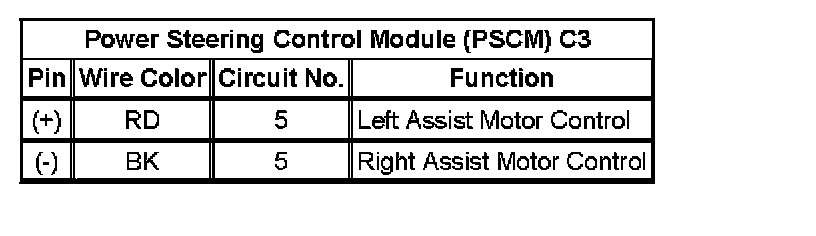

Power Steering Control Module (PSCM) C3:
