Sunroof / Moonroof Module



Sunroof Connector End Views

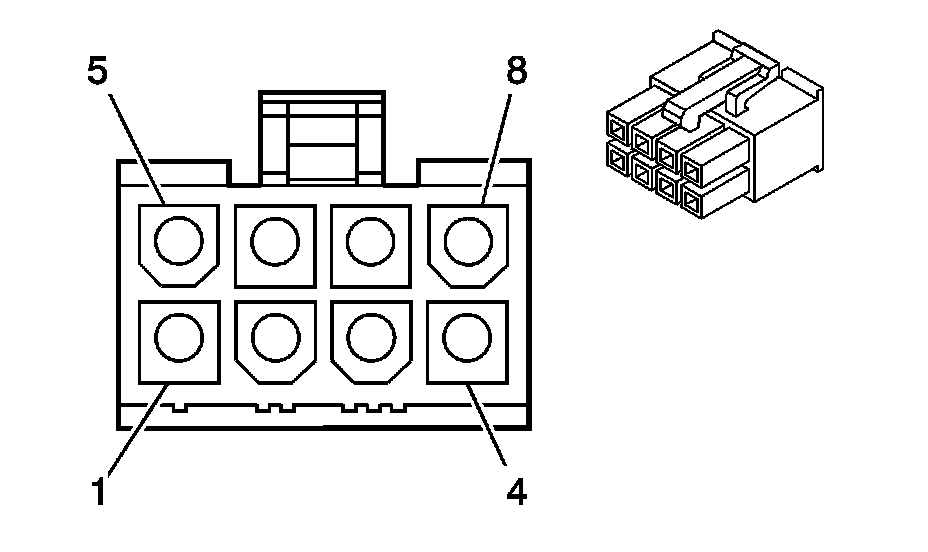

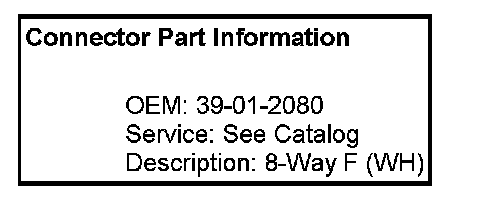

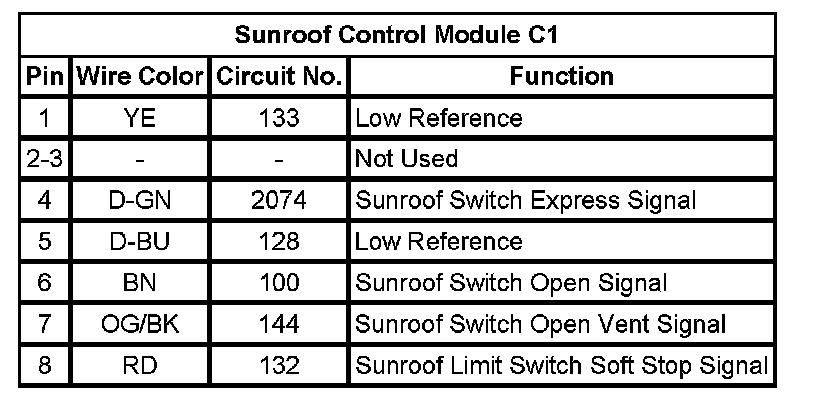

Sunroof Control Module C1

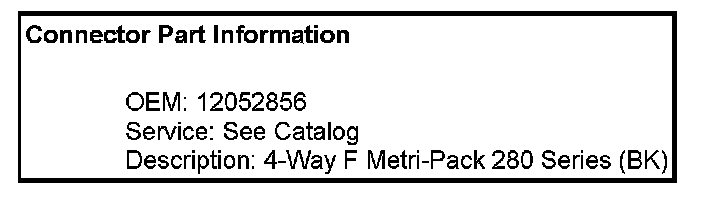

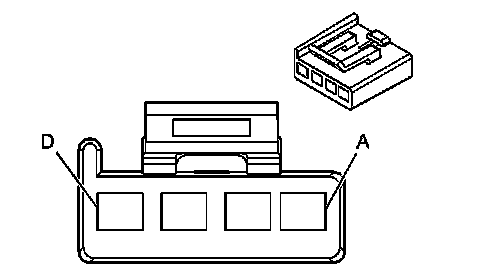

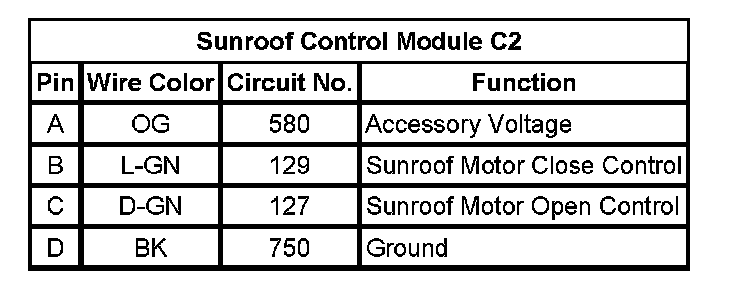

Sunroof Control Module C2

Transfer Case Shift Control Module - C3:
