Information Bus



Data Communication Schematics

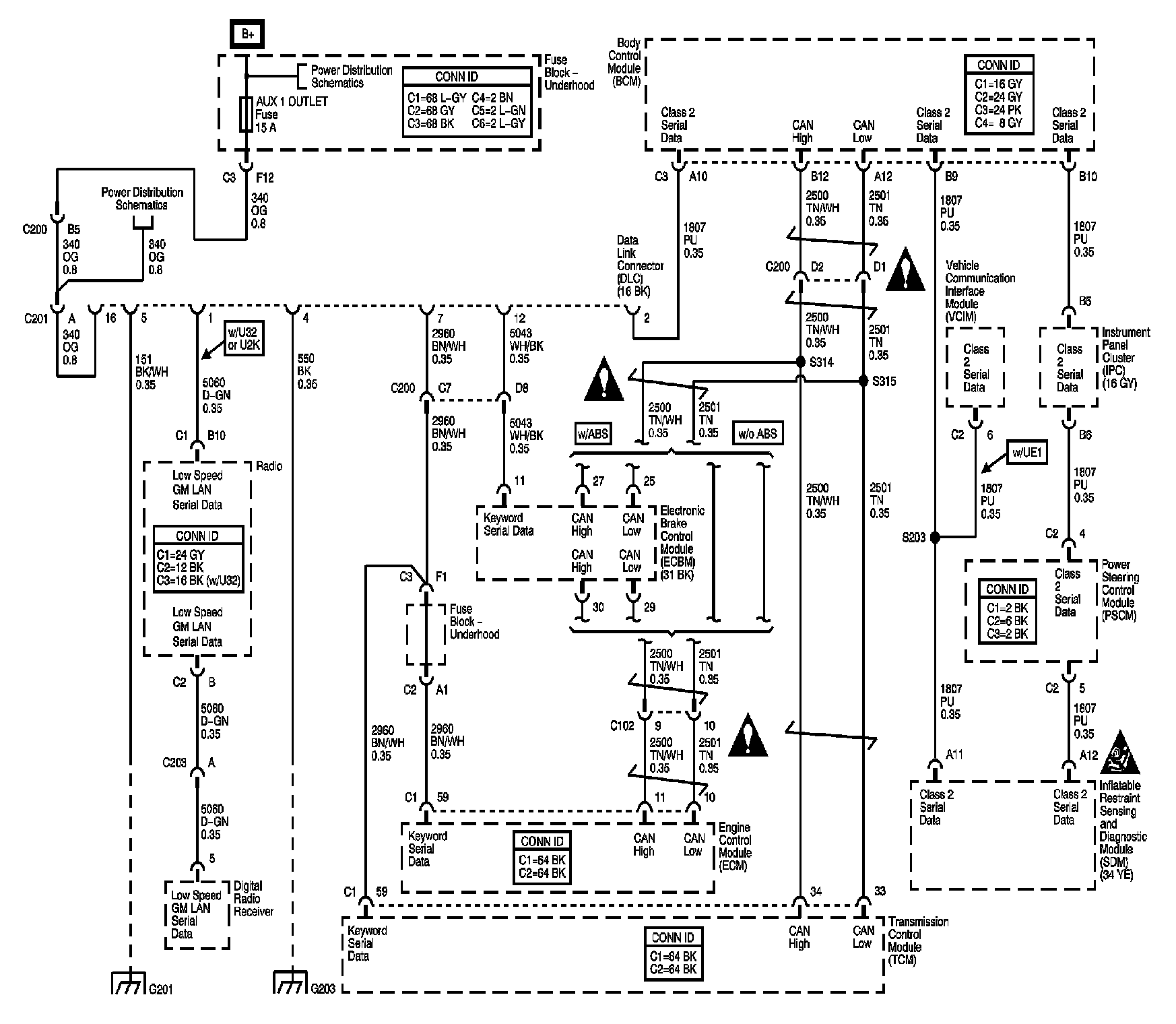

Automatic Transmission

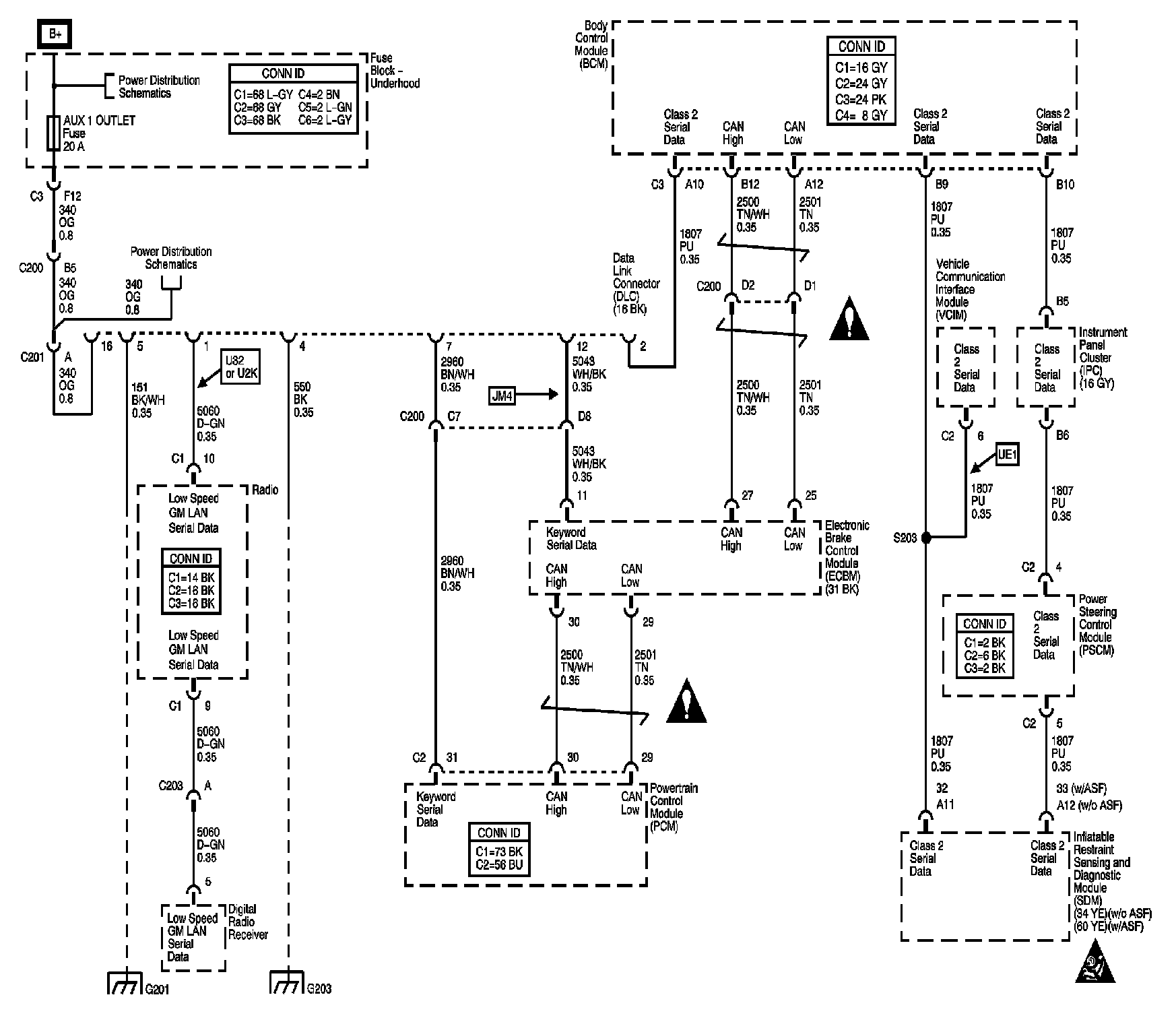

Manual Transmission

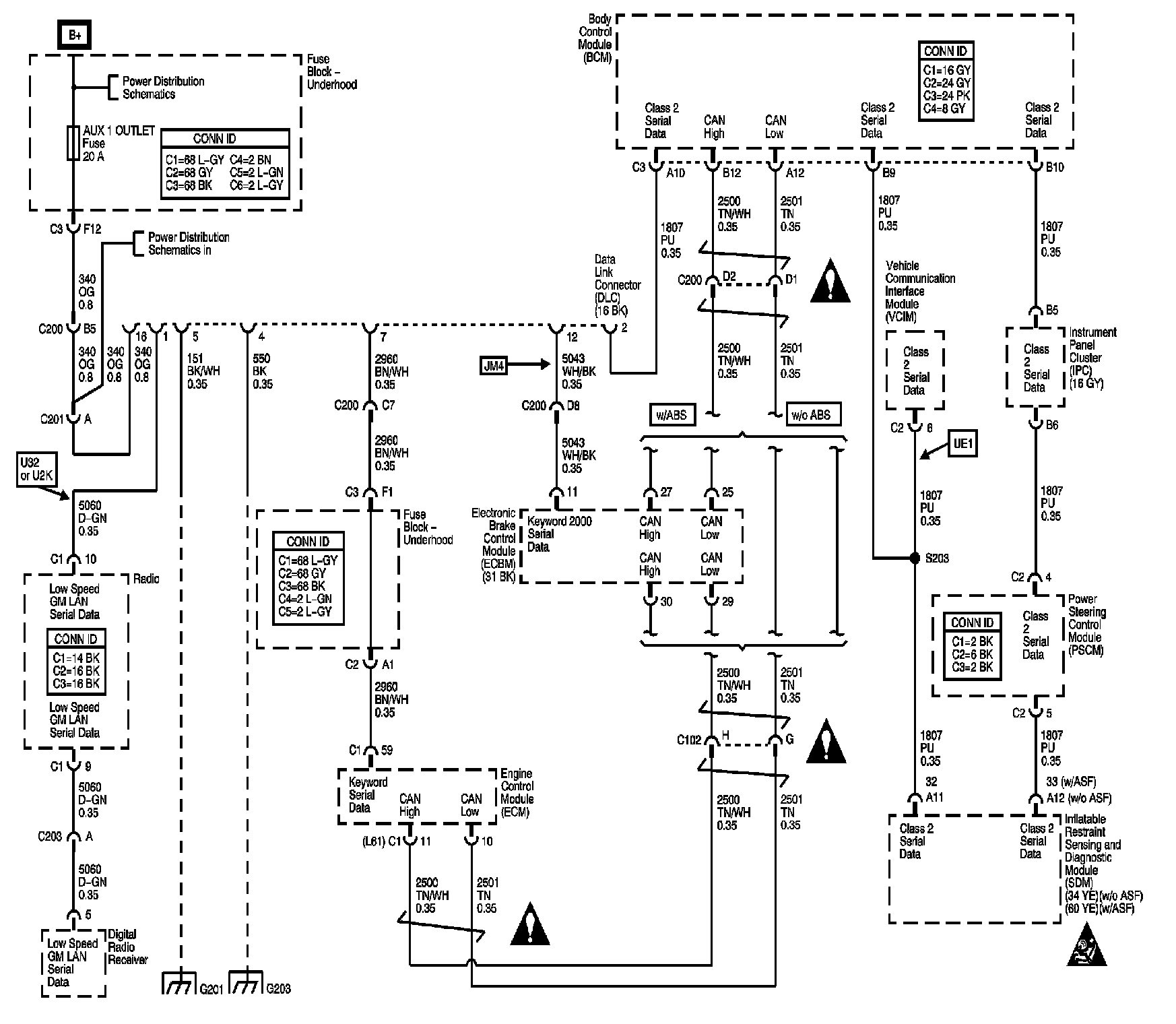

Data Link (L61)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
