Lamp Views

Harness Routing Views

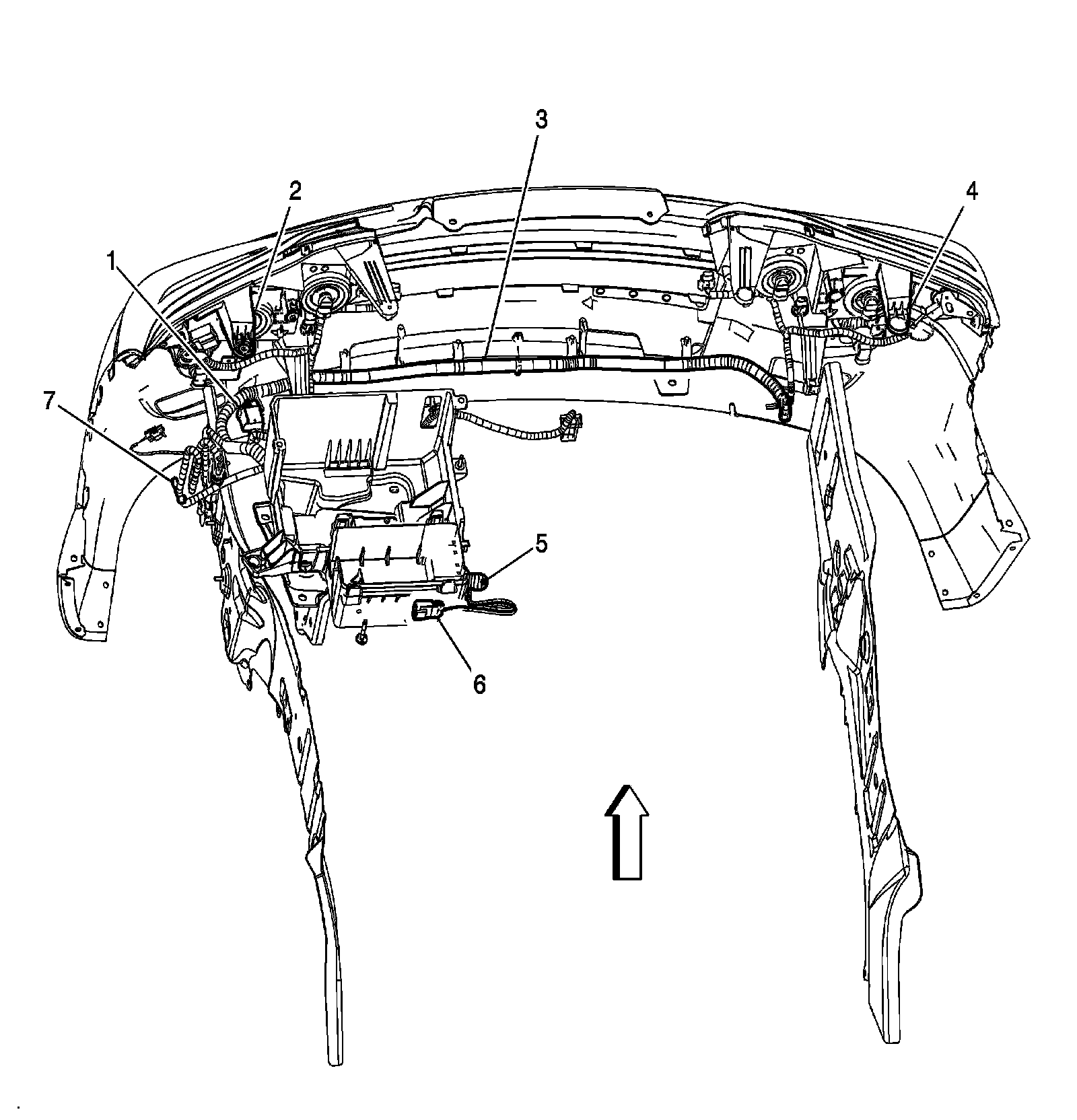

Forward Lamp Harness Routing (L61)




1 - Splice Pack SP101
2 - Headlamp Assembly-Left
3 - Forward Lamp Harness (L61)
4 - Headlamp Assembly-Right
5 - S111 (L61)
6 - C106
7 - G101
