Rear Toe Adjustment

Rear Toe Adjustment

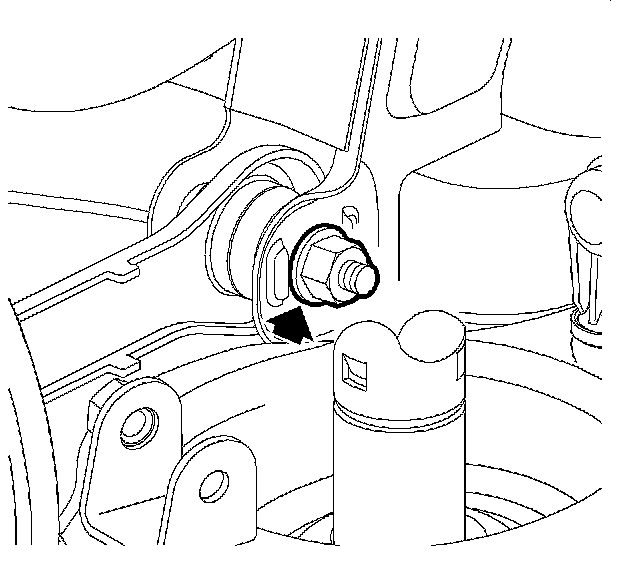

1. Loosen the toe link-to-frame fastener enough to allow for movement.

Important: The frame of the vehicle is slotted, a cam nut is available for service if required.

2. Rotate the toe link cam nut in the direction necessary to correct the toe angle.
3. Snug the toe link-to-frame fastener, do not tighten at this time.
4. Reinspect the rear toe specifications and adjust as necessary.

Notice: Refer to Fastener Notice.

5. Hold the nut and tighten the link-to-frame fastener bolt.

Tighten the bolt to 110 N.m (81 lb ft).

6. Repeat the procedure for the other rear wheel.
