Fuel Level Sensor Replacement (Primary)

Fuel Level Sensor Replacement (Primary)

Removal Procedure






Important: There are 2 fuel level sender unit and float assemblies in the fuel tank. There is 1 located on each fuel pump module. The fuel level sender unit and float is NOT the same for each of the fuel pump modules.

1. Remove the fuel tank.
2. Remove the fuel pump module.
3. Disconnect the fuel level sender unit and float electrical connector from the underside of the top of the pump module.

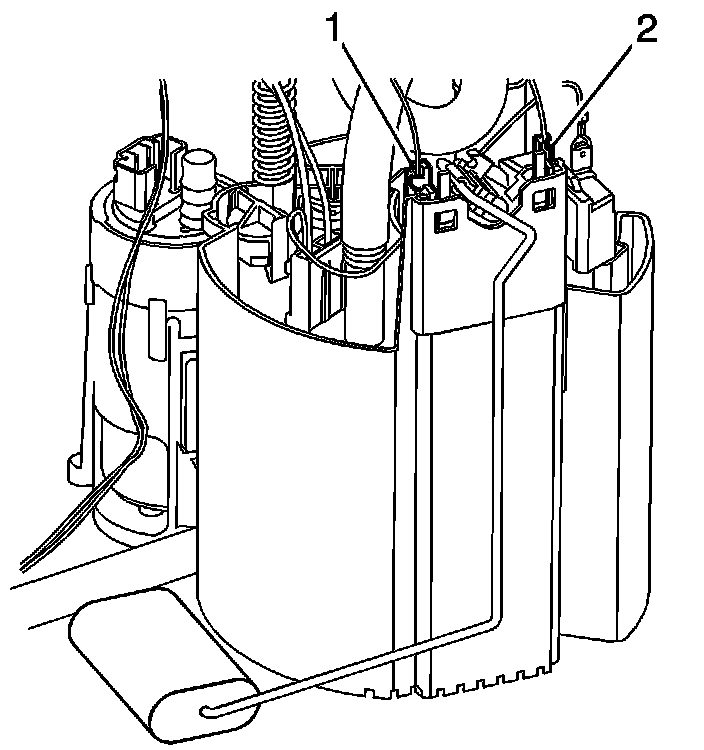

4. Release the retaining tabs (1, 2) and remove the level sensor by sliding up.

Installation Procedure




1. Install the fuel level sender unit and float onto the fuel pump module. Make sure that the sender cap snaps into place (1, 2).
2. Connect the fuel level sender unit and float electrical connector.
3. Install the fuel pump module into the fuel tank.
4. Install the fuel tank.
