5AT - Automatic Transmission

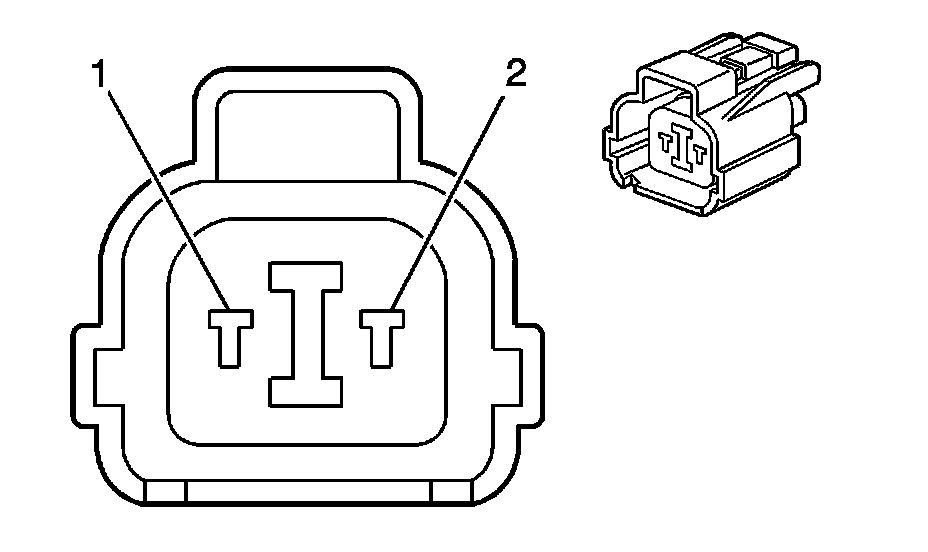

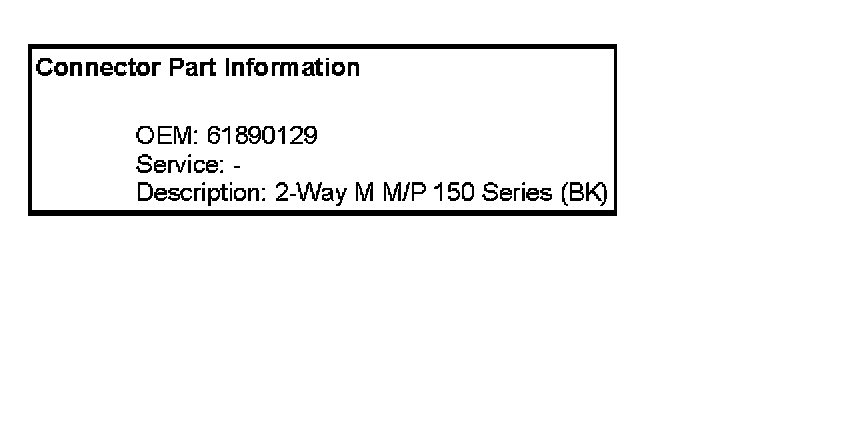

Automatic Transmission Related Connector End Views

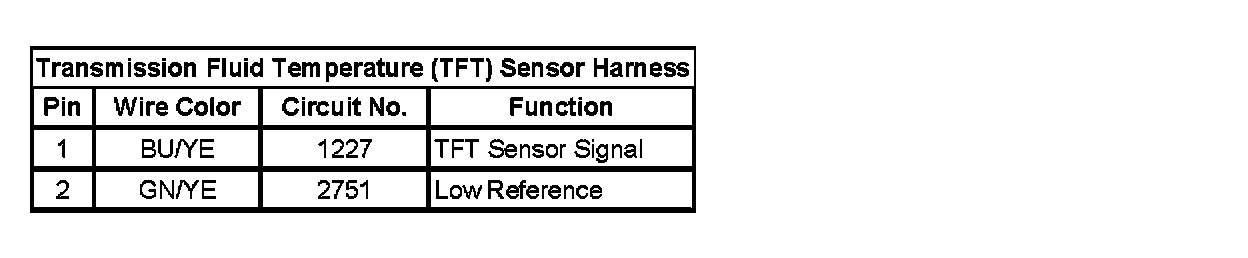

Transmission Fluid Temperature (TFT) Sensor Harness:
