Vehicle Speed Sensor: Locations

Engine Controls Component Views

Rear of Engine




1 - Evaporative Emissions (EVAP) Canister Purge Solenoid
2 - Vehicle Speed Sensor (VSS)
3 - Heated Oxygen Sensor (HO2S) 2
4 - Heated Oxygen Sensor (HO2S) 1
5 - Park/Neutral Position (PNP) Switch
6 - Engine Coolant Temperature (ECT) Sensor
7 - G107

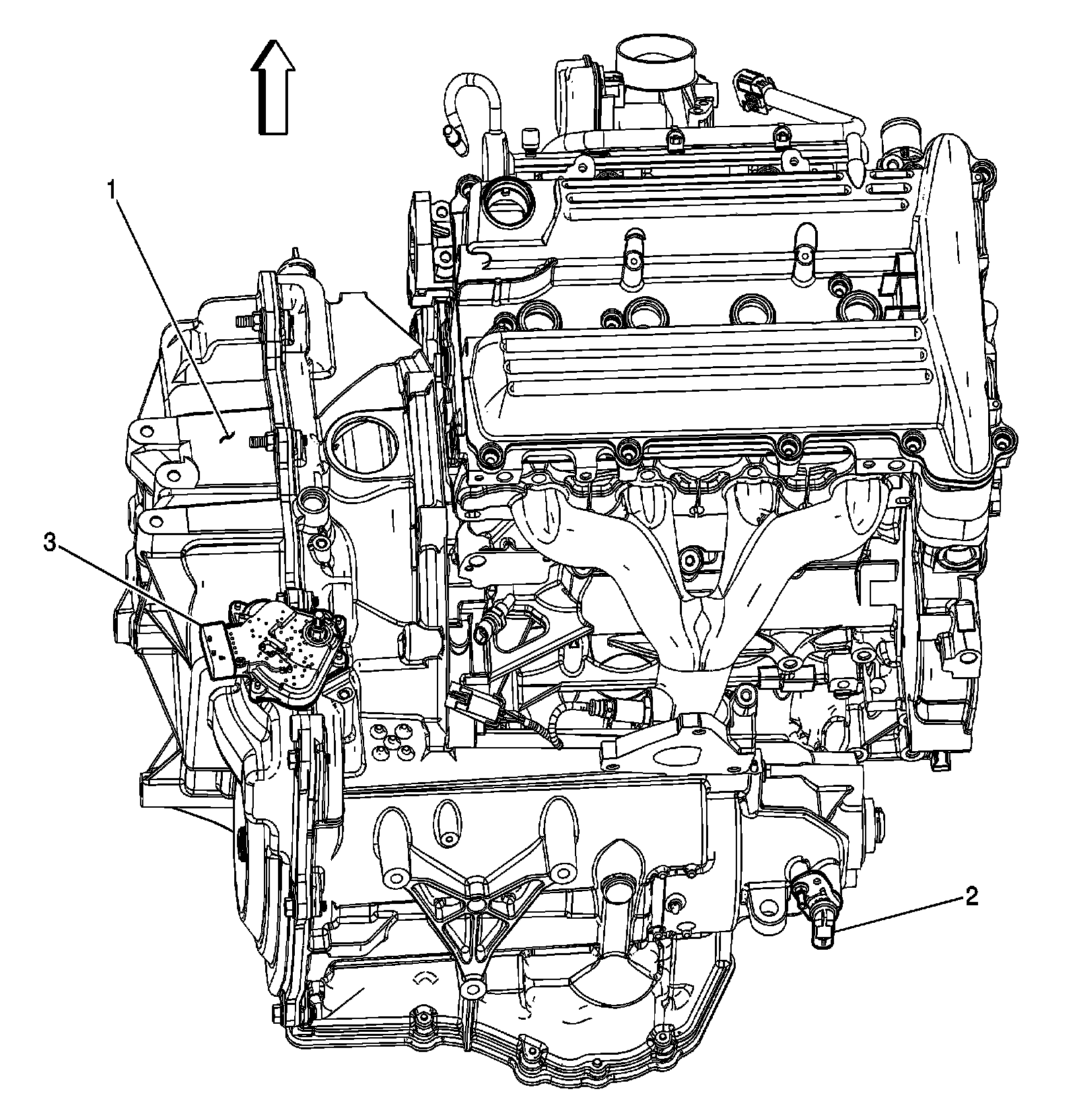

Transmission Components - 4T45-E




1 - Transmission - 4T45-E
2 - Vehicle Speed Sensor (VSS)
3 - Park Neutral Position (PNP) Switch
