Connector Views



Engine Electrical Connector End Views

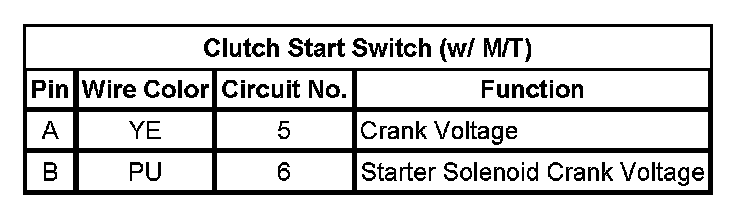

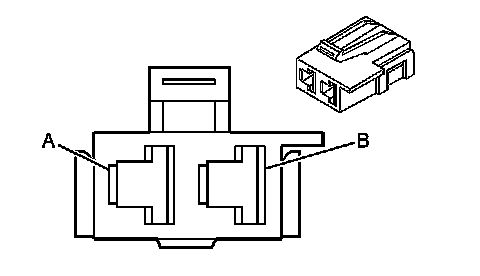

Clutch Start Switch (w/ M/T)

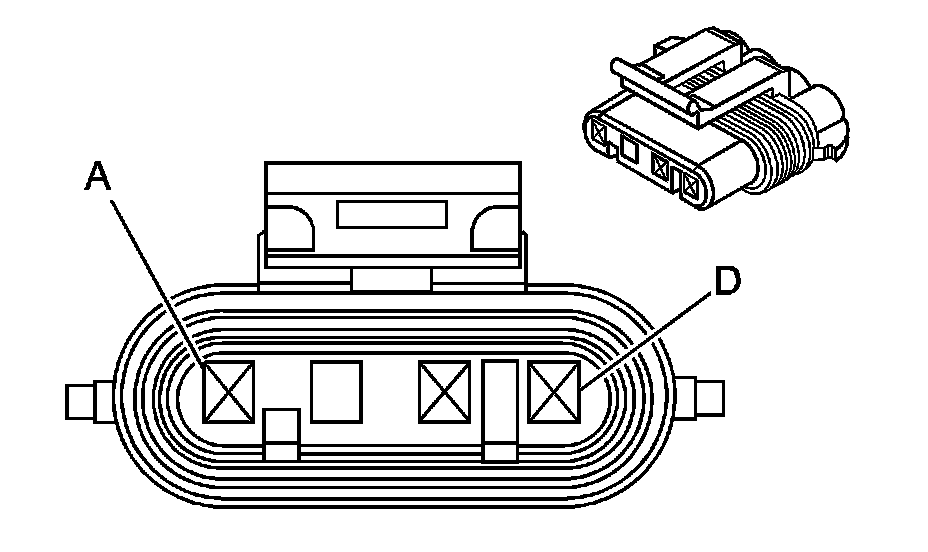

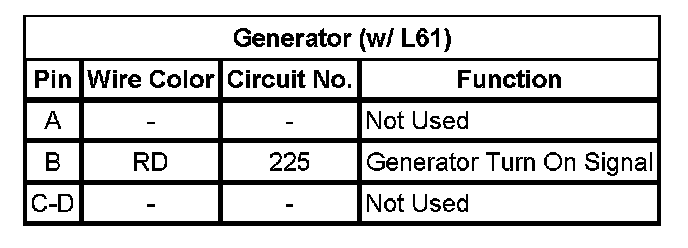

Generator (w/ L61)

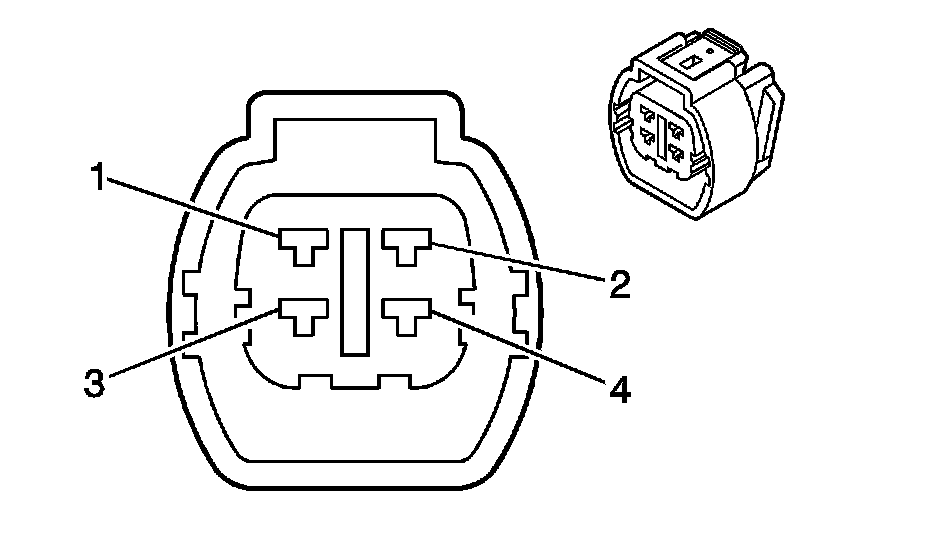

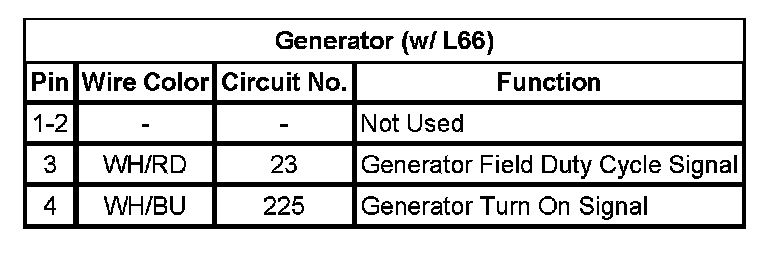

Generator (w/ L66)

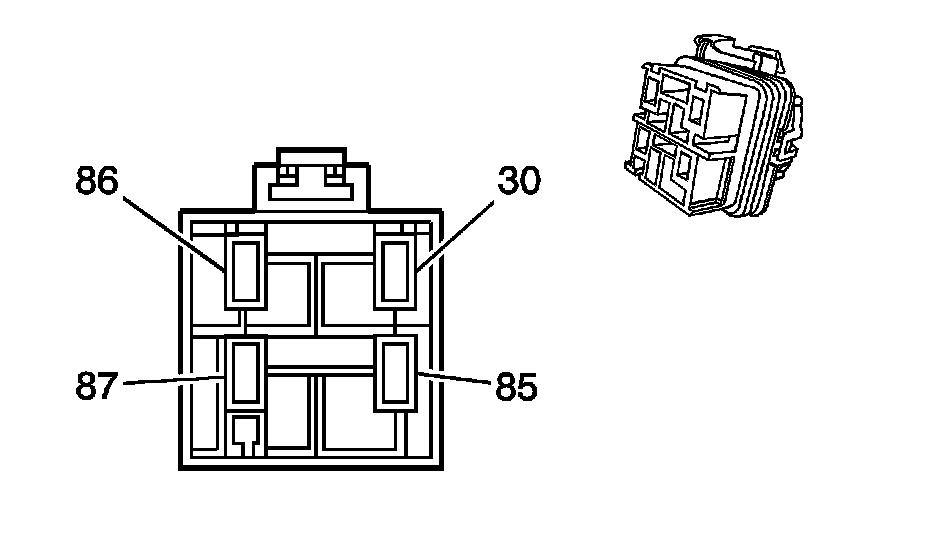

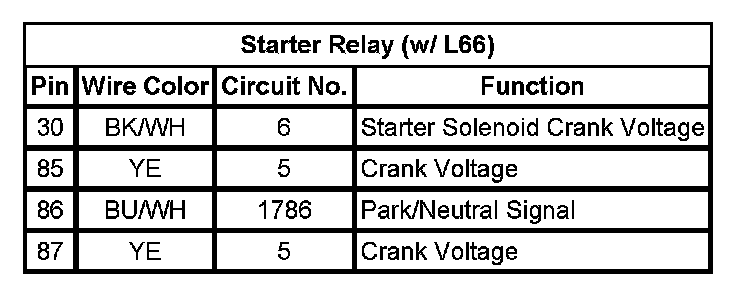

Starter Relay (w/ L66)
