Remote Function Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

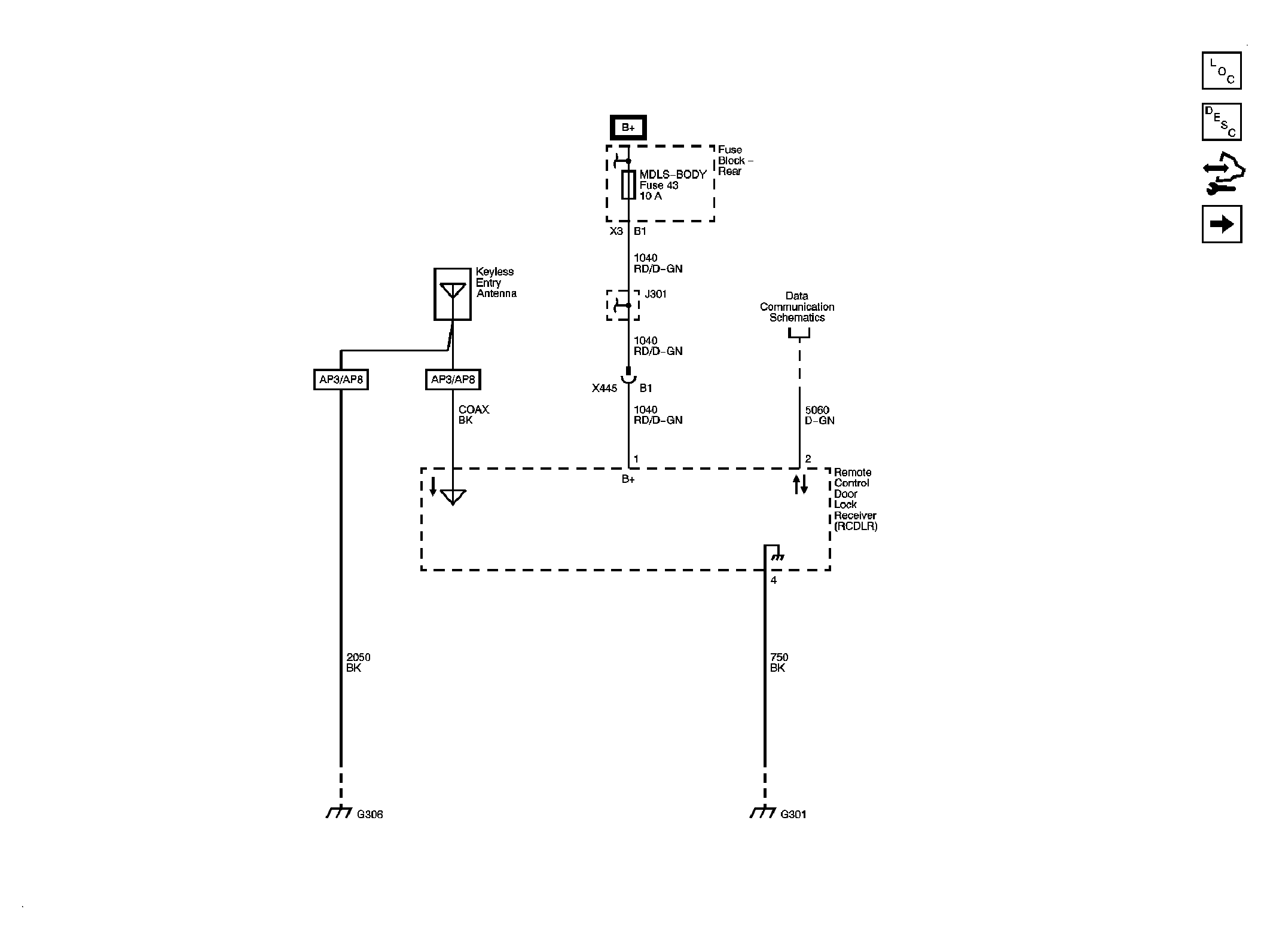

Fig 1: Remote Control Door Lock Receiver (RCDLR)

Courtesy of GENERAL MOTORS CORP.

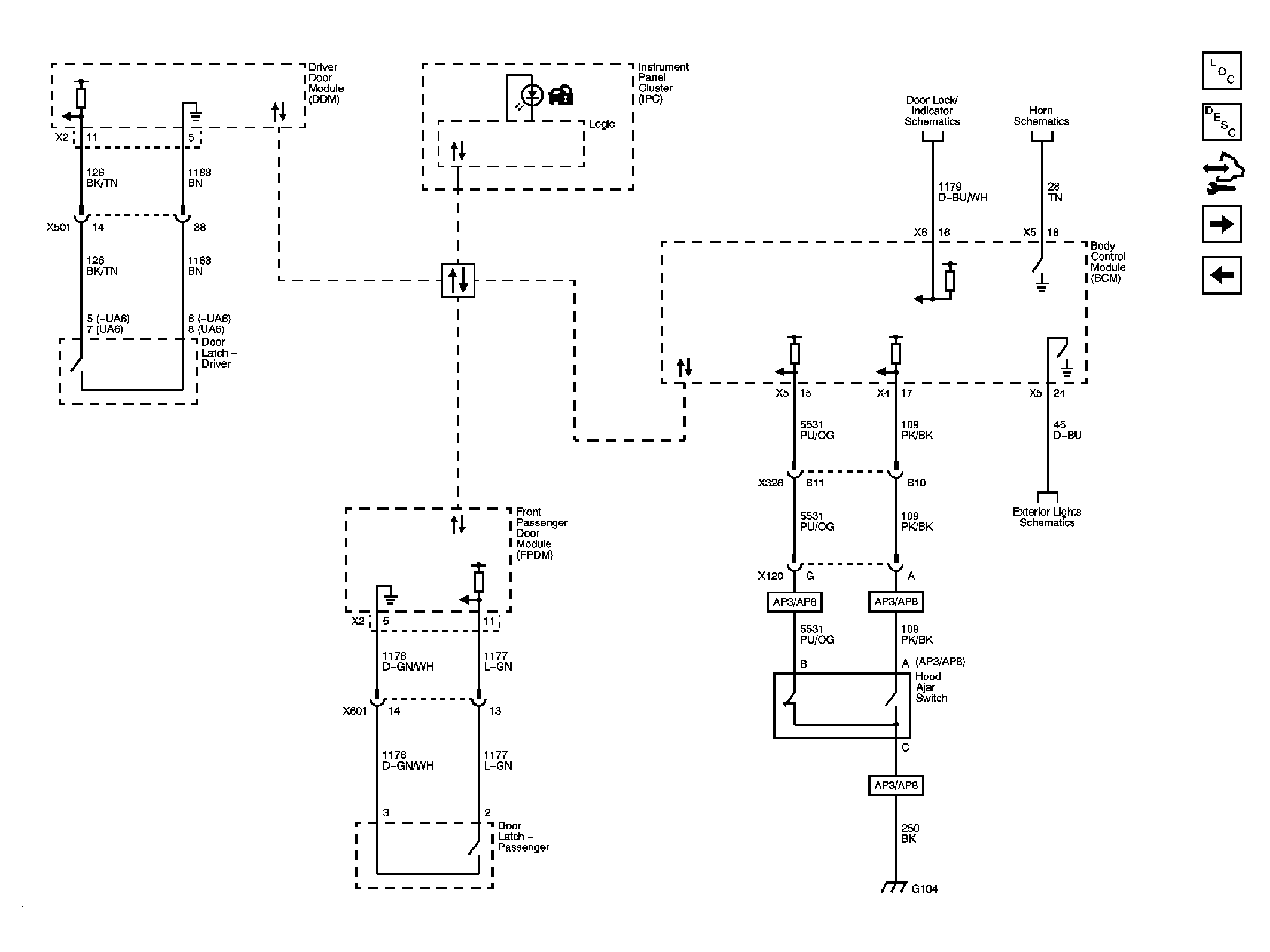

Fig 2: Door Latch Assemblies and Hood Ajar Switch

Courtesy of GENERAL MOTORS CORP.

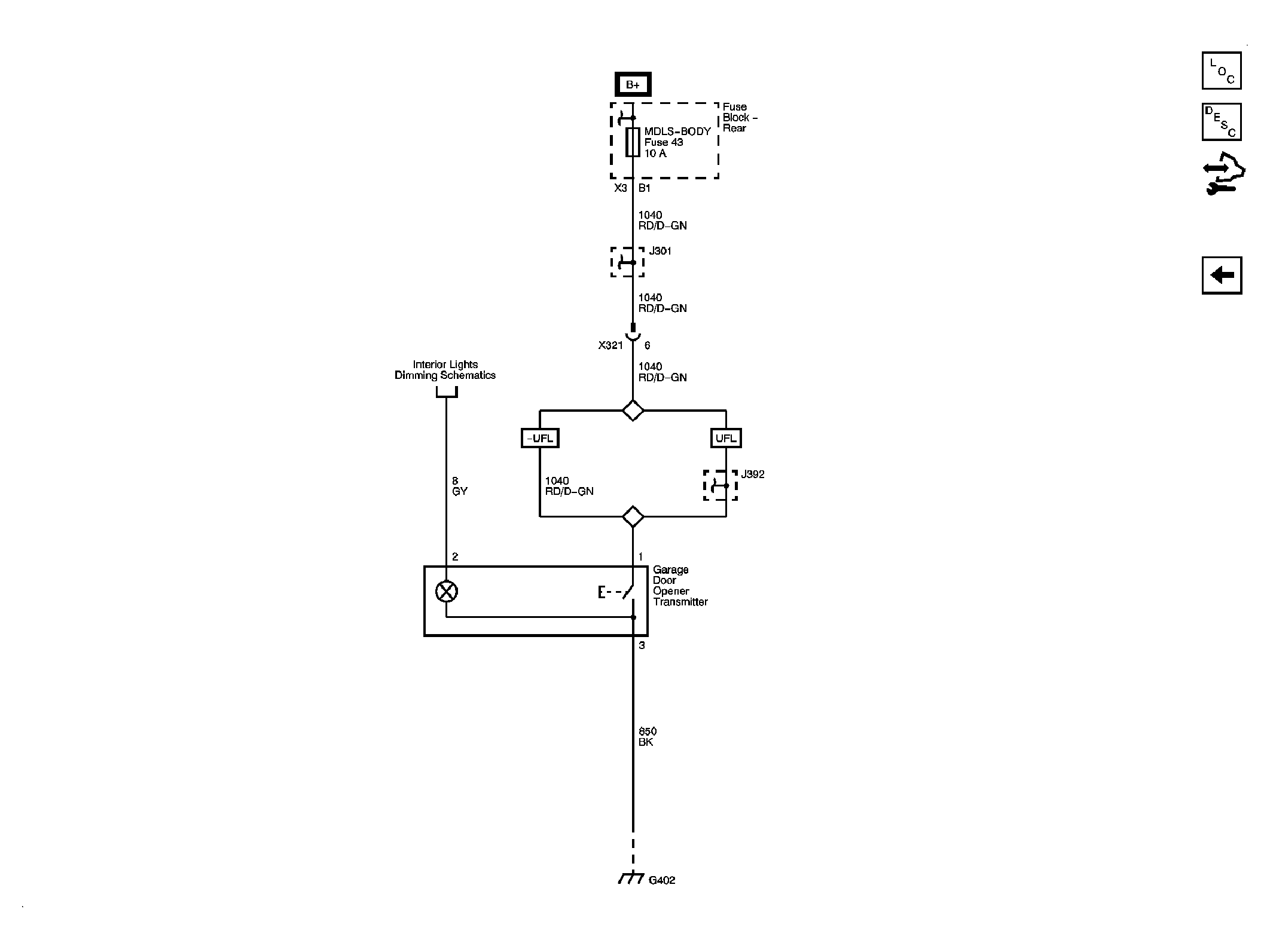

Fig 3: Garage Door Opener

Courtesy of GENERAL MOTORS CORP.
