Impact Sensor



Component Connector End Views

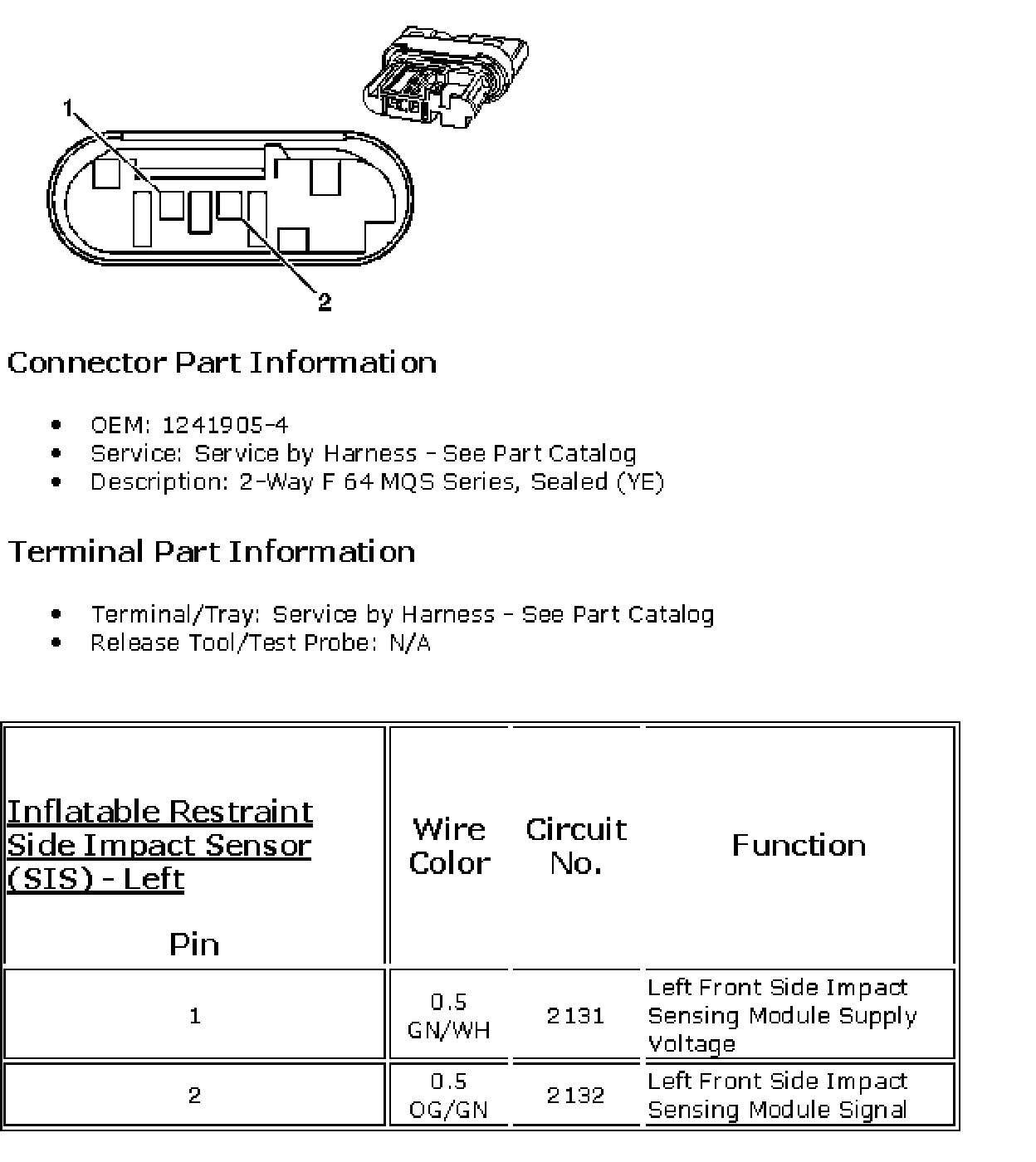

Inflatable Restraint Side Impact Sensor (SIS) - Left

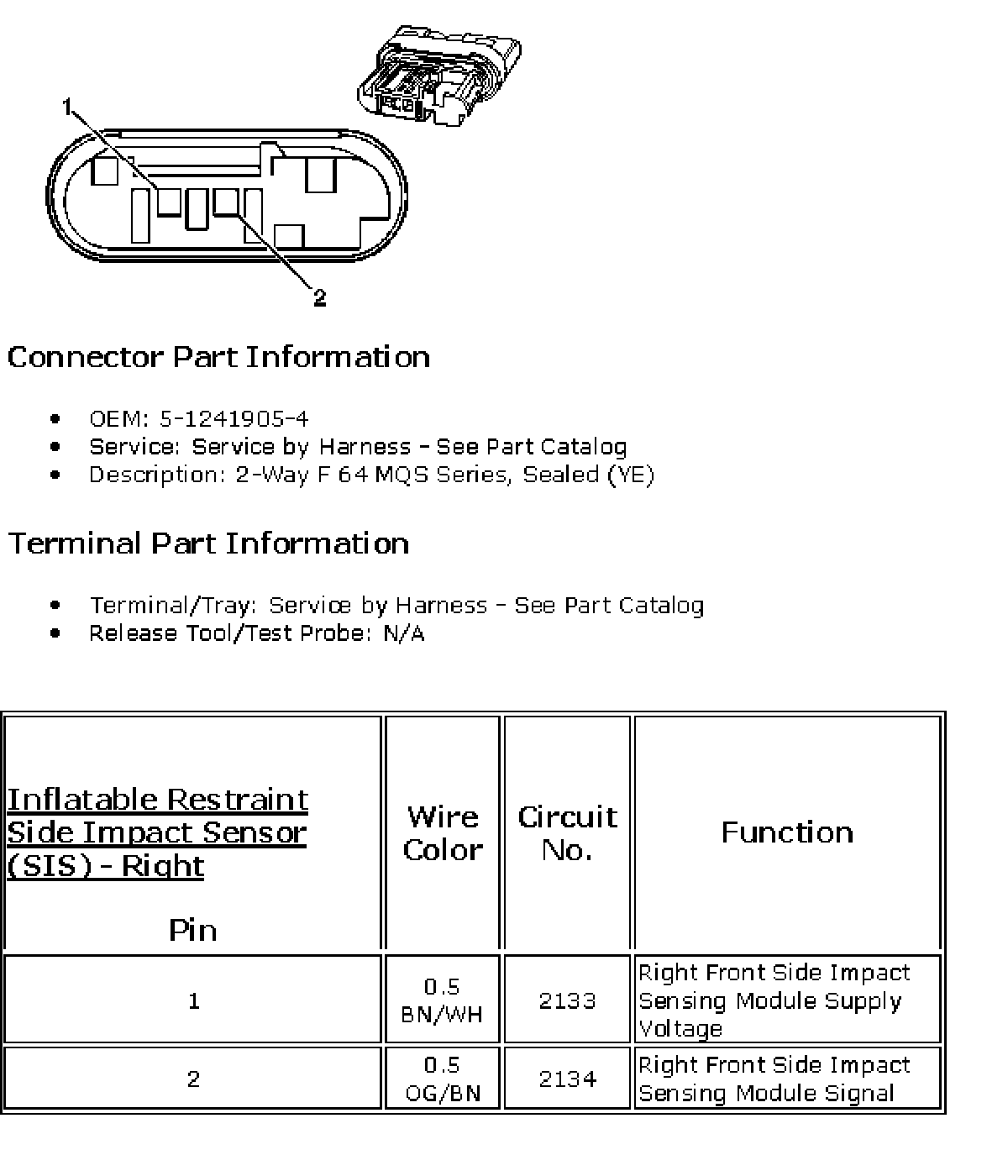

Inflatable Restraint Side Impact Sensor (SIS) - Right








Component Connector End Views

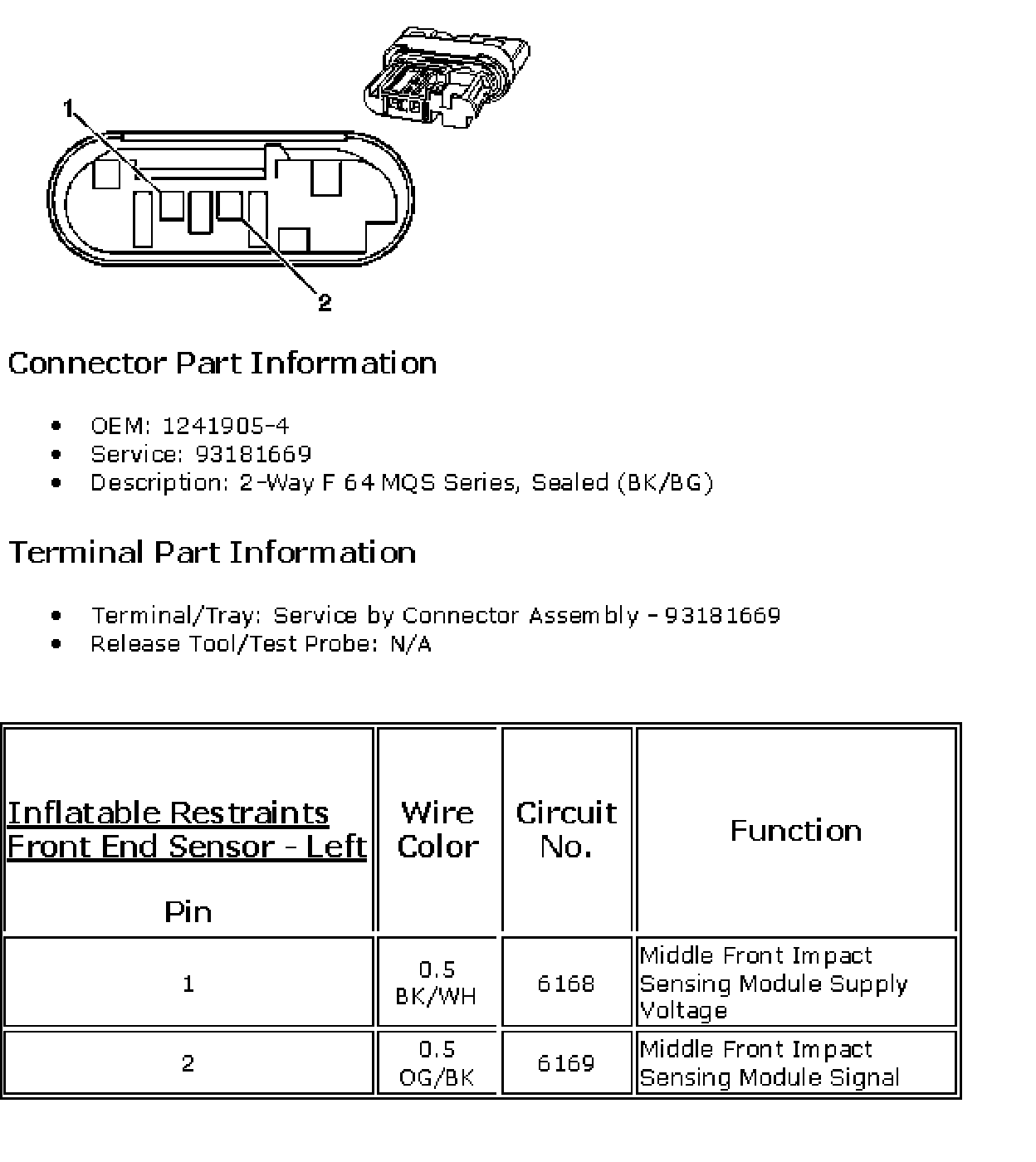

Inflatable Restraints Front End Sensor - Left

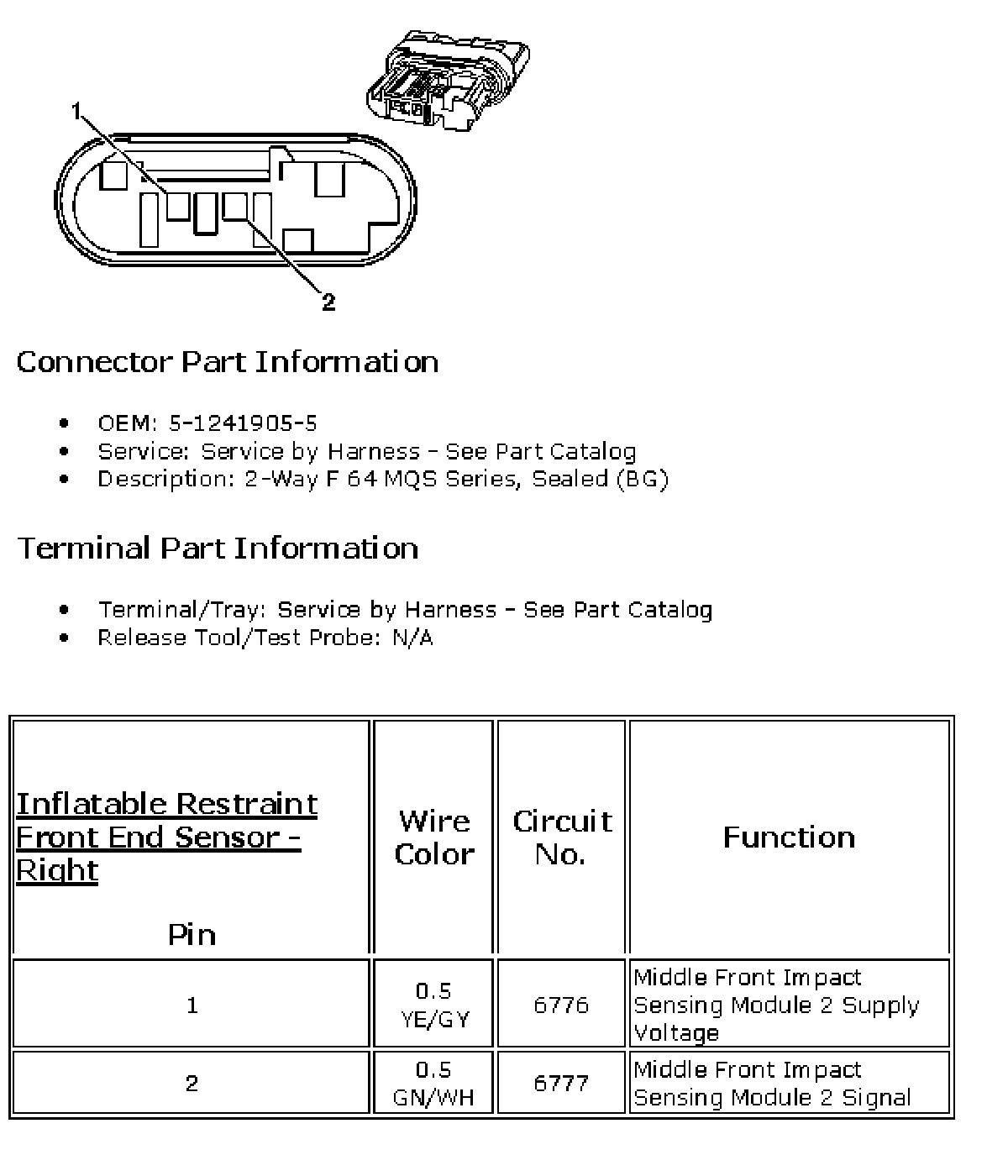

Inflatable Restraint Front End Sensor - Right
