Steering Control Module



Component Connector End Views

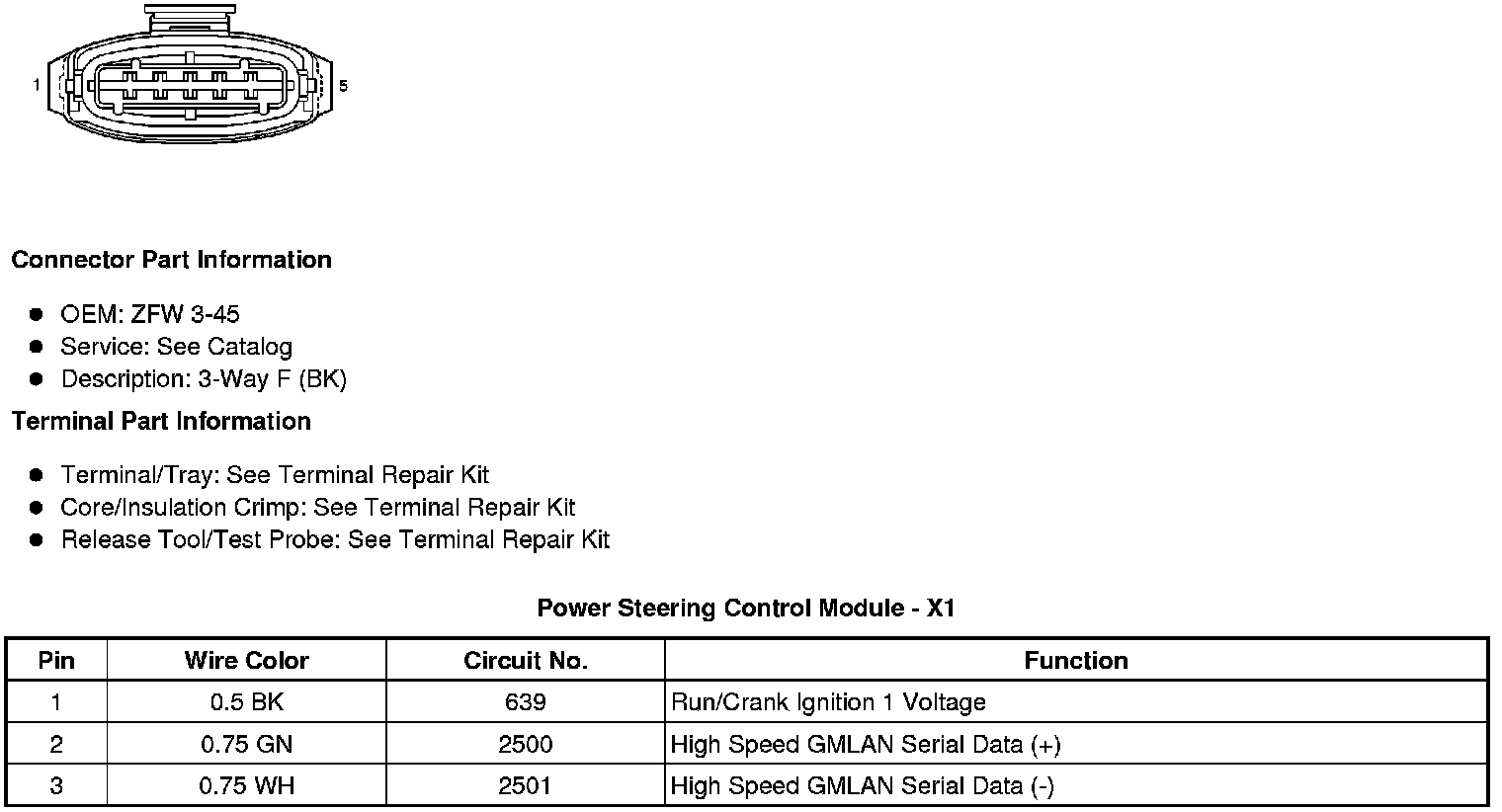

Power Steering Control Module - X1

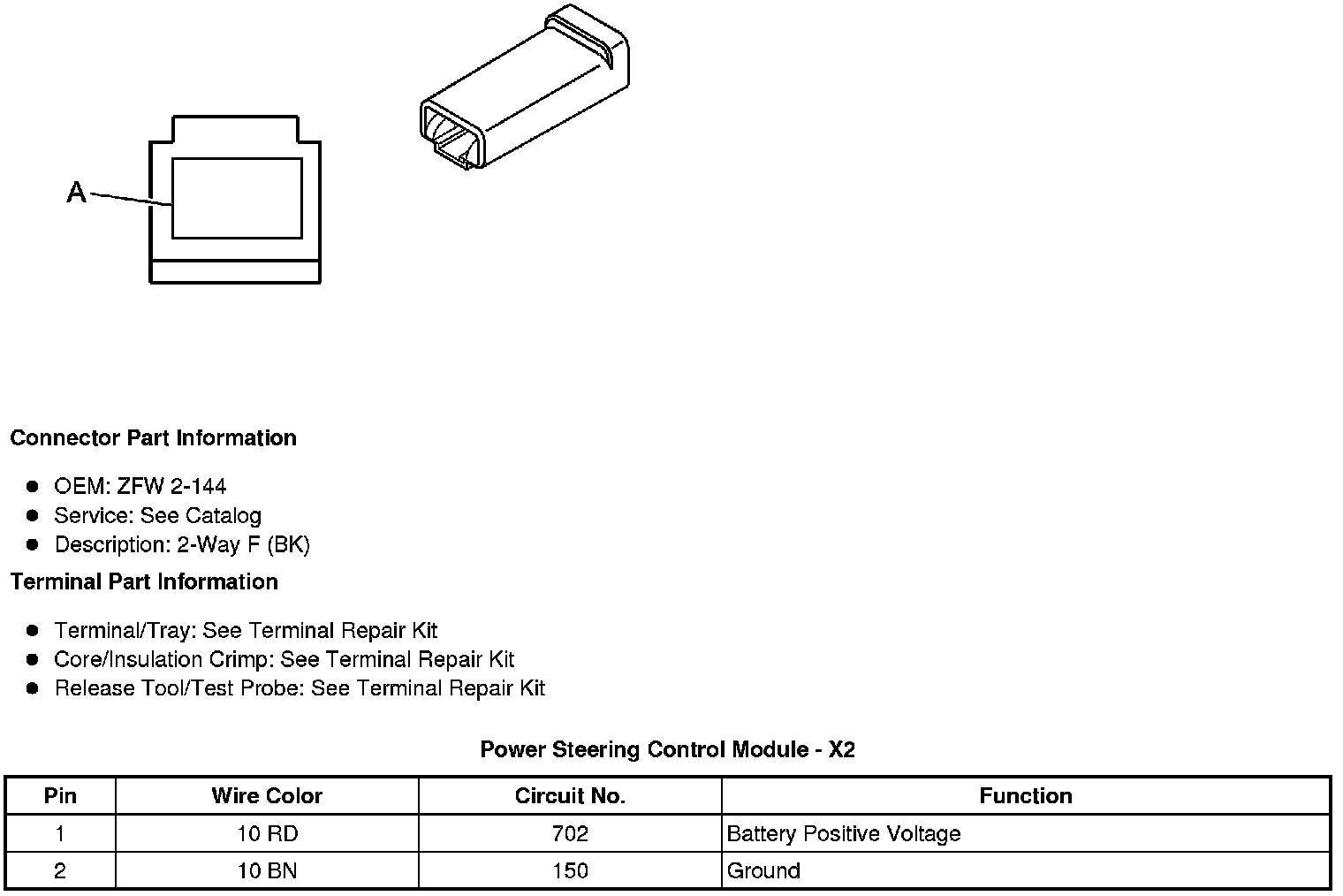

Power Steering Control Module - X2
