Variable Induction Control Valve



Component Connector End Views

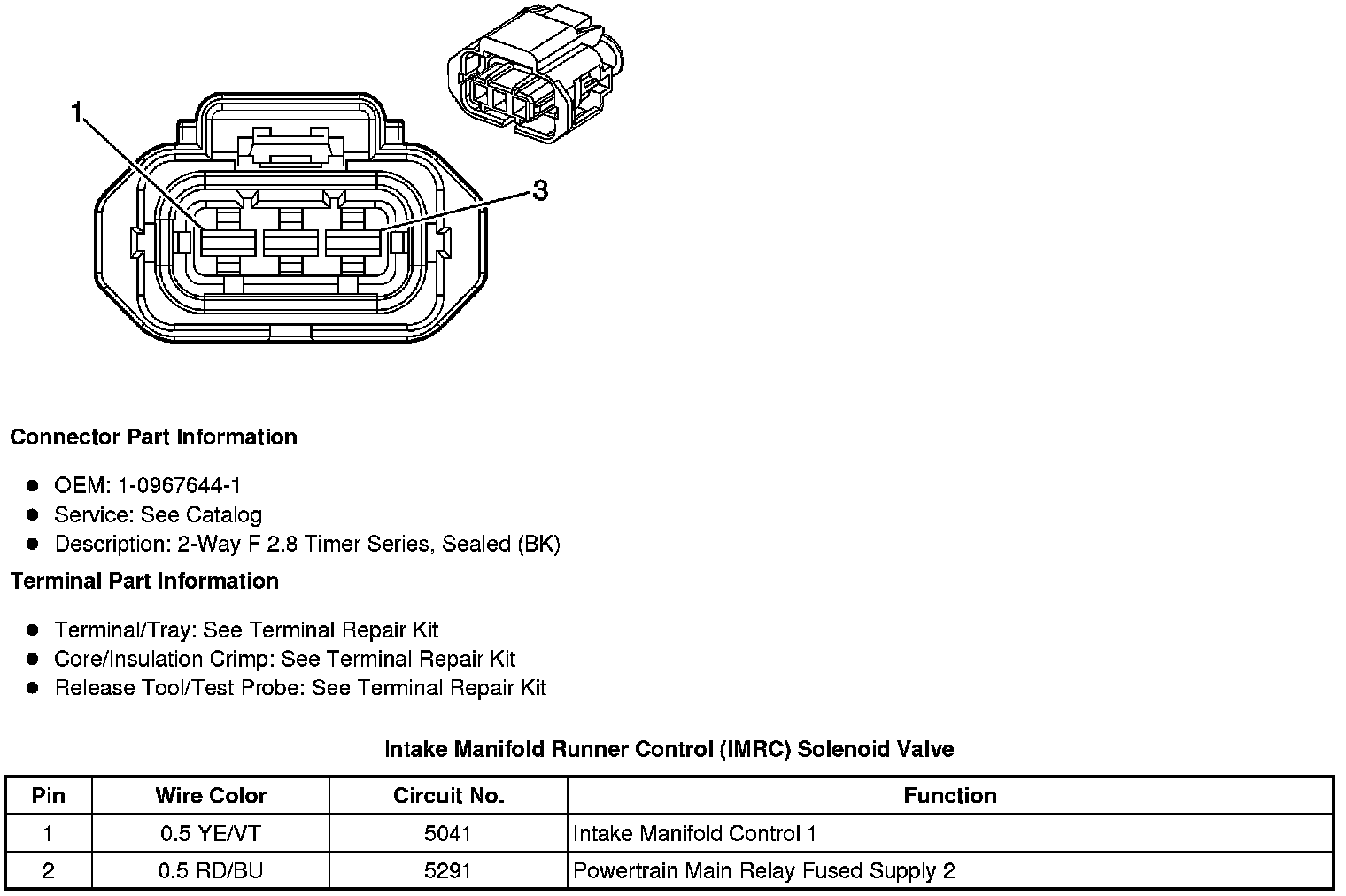

Intake Manifold Runner Control (IMRC) Solenoid Valve

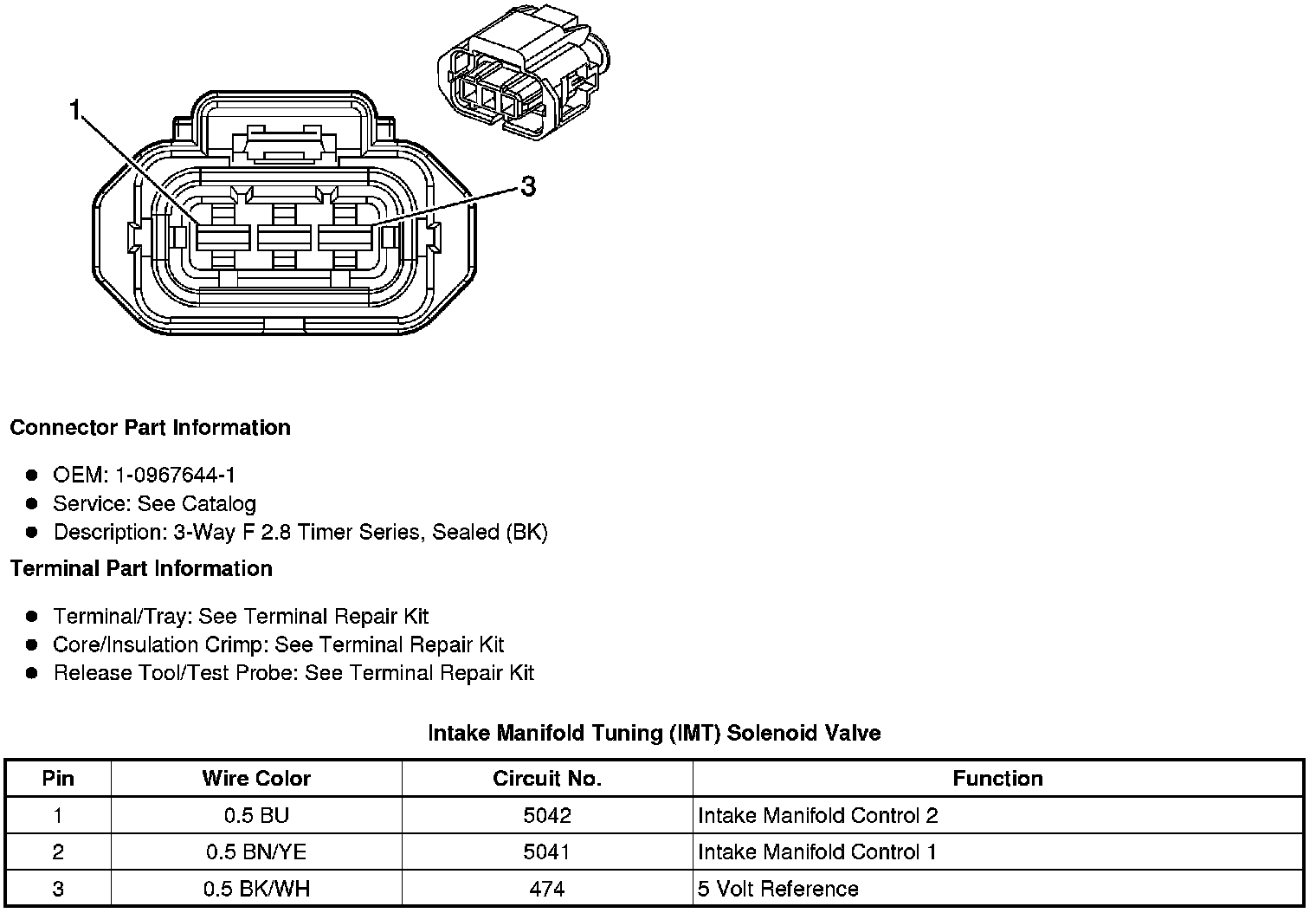

Intake Manifold Tuning (IMT) Solenoid Valve
