Transmission Position Sensor/Switch: Locations

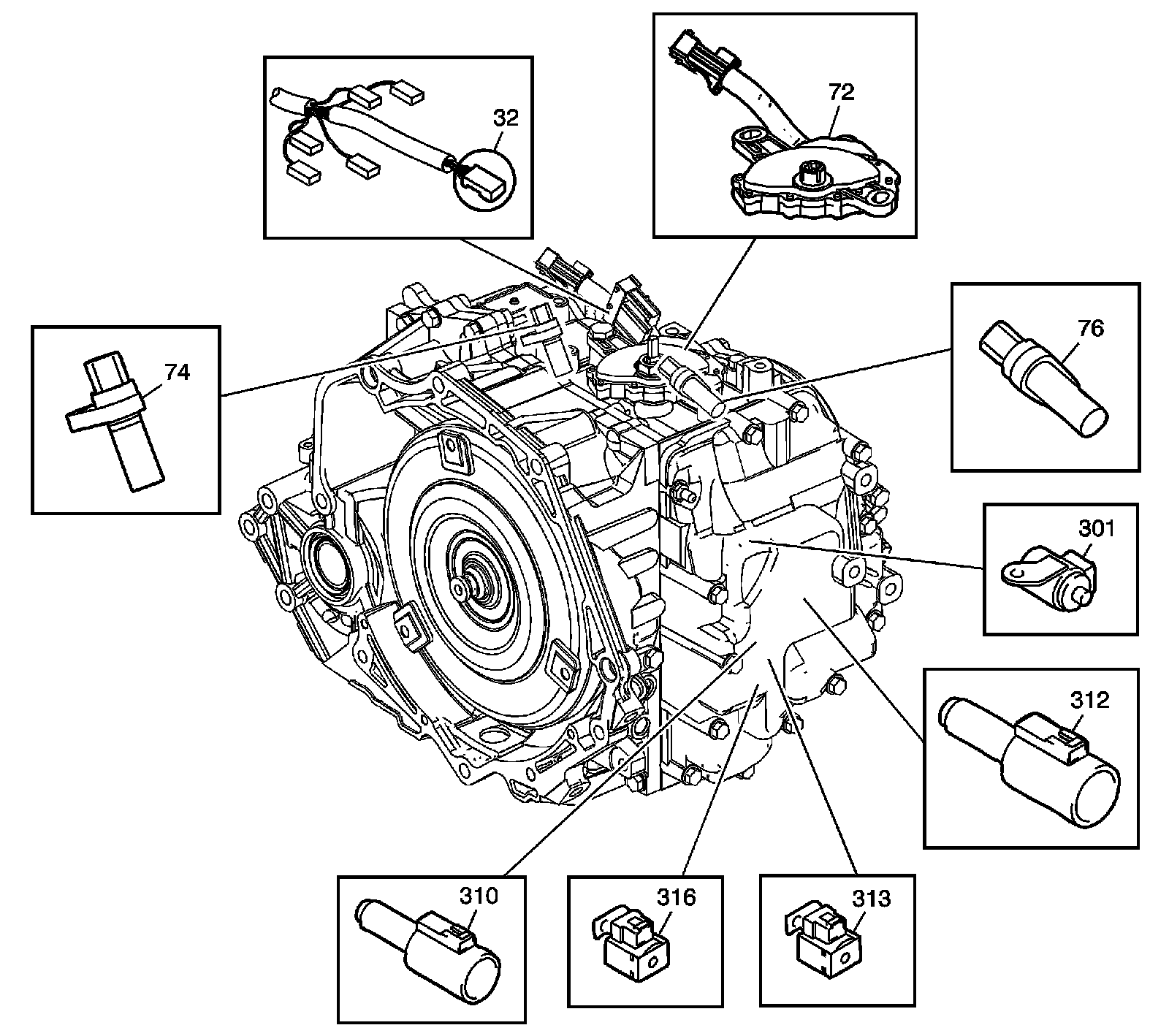

Automatic Transmission Electronic Component Views

Electronic Components View




32 - Transmission Fluid Temperature Sensor
72 - Park/Neutral Position Switch
74 - Transmission Output Speed Sensor Assembly
76 - Transmission Input Speed Sensor Assembly
301 - Neutral Switching Solenoid Valve
310 - Lock Up Control Solenoid (SLU)
312 - Line Pressure Control Solenoid Valve Assembly (SLT)
313 - 2-3, 3-4 Shift Solenoid Valve Assembly (S1)
316 - 1-2/3-4 Shift Solenoid Valve Assembly (S2)



Powertrain Component Views

Automatic Transmission




1 - Park/Neutral Position (PNP) Switch
2 - X121
3 - Output Speed Sensor
4 - Input Speed Sensor
