Installation Procedure

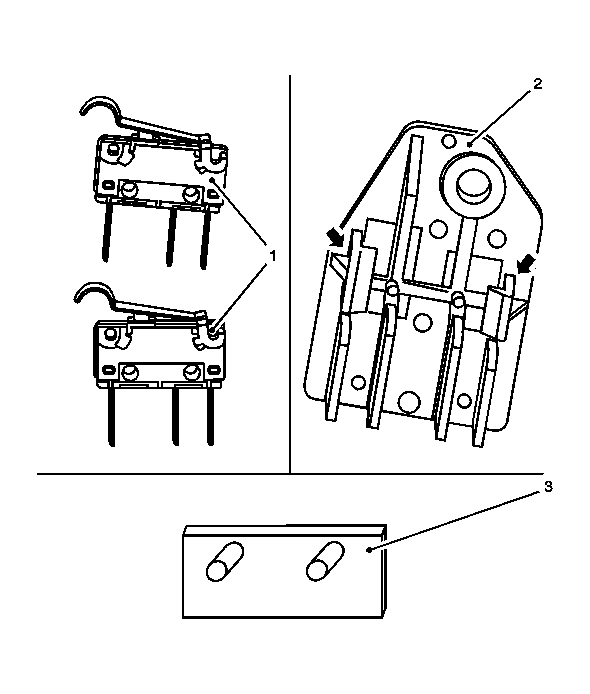

Fig 1: View Of 2 Shift Lock Actuator From The Bracket

Courtesy of GENERAL MOTORS CORP.

Install the 2 shift lock actuator (1) to the bracket (2).
- Insert the 2 shift lock actuator with the spacer plate (3).
- The 2 locks must engage.

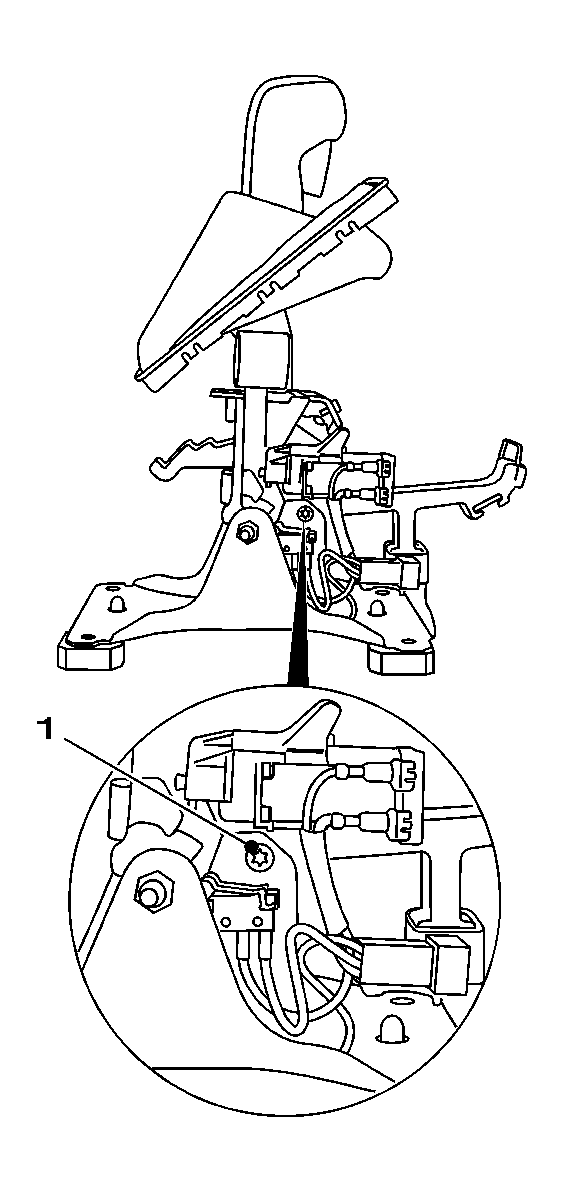

Fig 2: View Of Shift Lock Actuator Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

IMPORTANT: Note configuration of cables.

Install the 2 shift lock actuator to the selector lever assembly.
Connect the 4 wiring plugs to the shift lock actuator.

Tighten: Tighten the bolt (1).
Install the selector lever assembly.
- Insert the selector lever assembly.
  Tighten: Tighten the 4 bolts (2) to 5 N.m (44 lb in).
- Connect the wiring harness plug (1).

Fig 3: View Of Selector Actuator Cable And Retaining Clamp

Courtesy of GENERAL MOTORS CORP.

Install the selector actuator cable (2) to the selector lever.
- Install the selector lever to the bracket.
- Install the retaining clamp (1).
Install the front floor console. Refer to Front Floor Console Replacement .
Check the selector lever safety functions.
For reprogramming procedures, refer to Control Module References .
