Installation Procedure

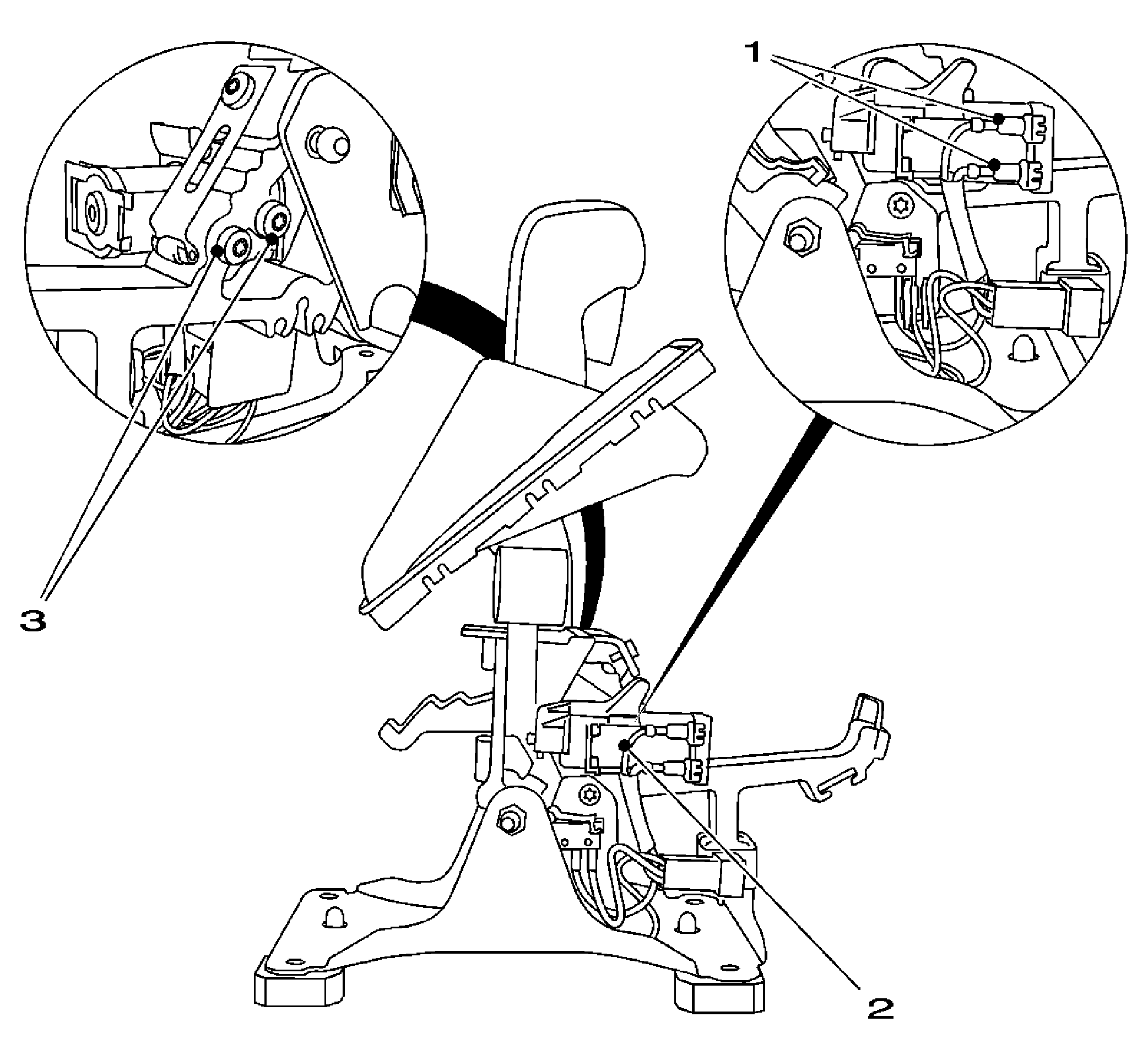

Fig 1: View Of Lock Control Solenoid Selector Lever Lock

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

IMPORTANT: Note the configuration of cables.

Install the lock control solenoid for the selector lever lock (2).
- Insert the lock control solenoid for the selector lever lock.
  Tighten: Tighten the 2 bolts (3) to 4 N.m (35 lb in).
- Connect the 2 wiring plugs (1) to the lock control solenoid.

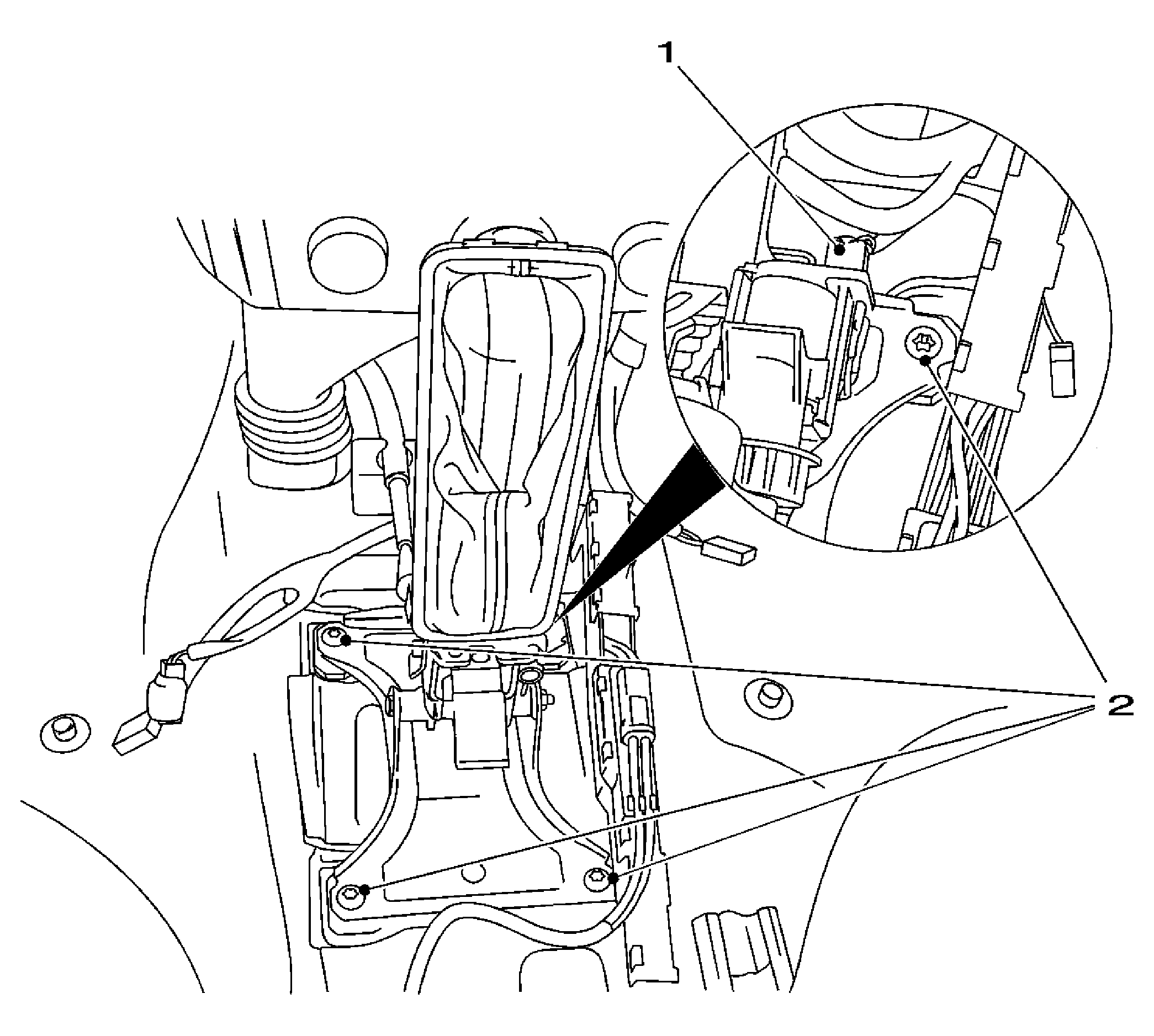

Fig 2: View Of Selector Lever Assembly And Wiring Harness Plug

Courtesy of GENERAL MOTORS CORP.

Install the selector lever assembly.
- Insert the selector lever assembly.
  Tighten: Tighten 4 bolts (2) 5 N.m (44 lb in).
- Connect the wiring harness plug (1).

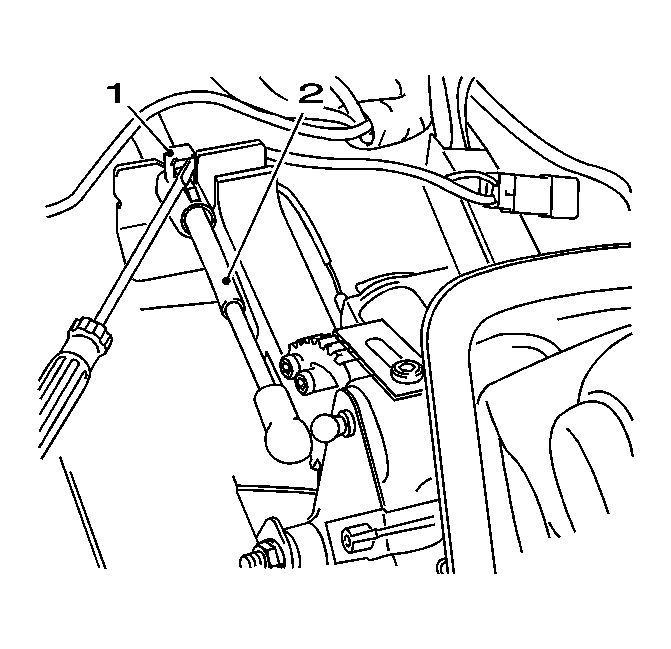

Fig 3: View Of Selector Actuator Cable And Retaining Clamp

Courtesy of GENERAL MOTORS CORP.

Install the selector linkage (2) to the selector lever.
- Install the selector lever to the bracket.
- Install the retaining clamp (1).
Install the front floor console. Refer to Front Floor Console Replacement .
Check the selector lever safety functions.
For reprogramming procedures, refer to Control Module References .
