Door Component Views

Door Component Views

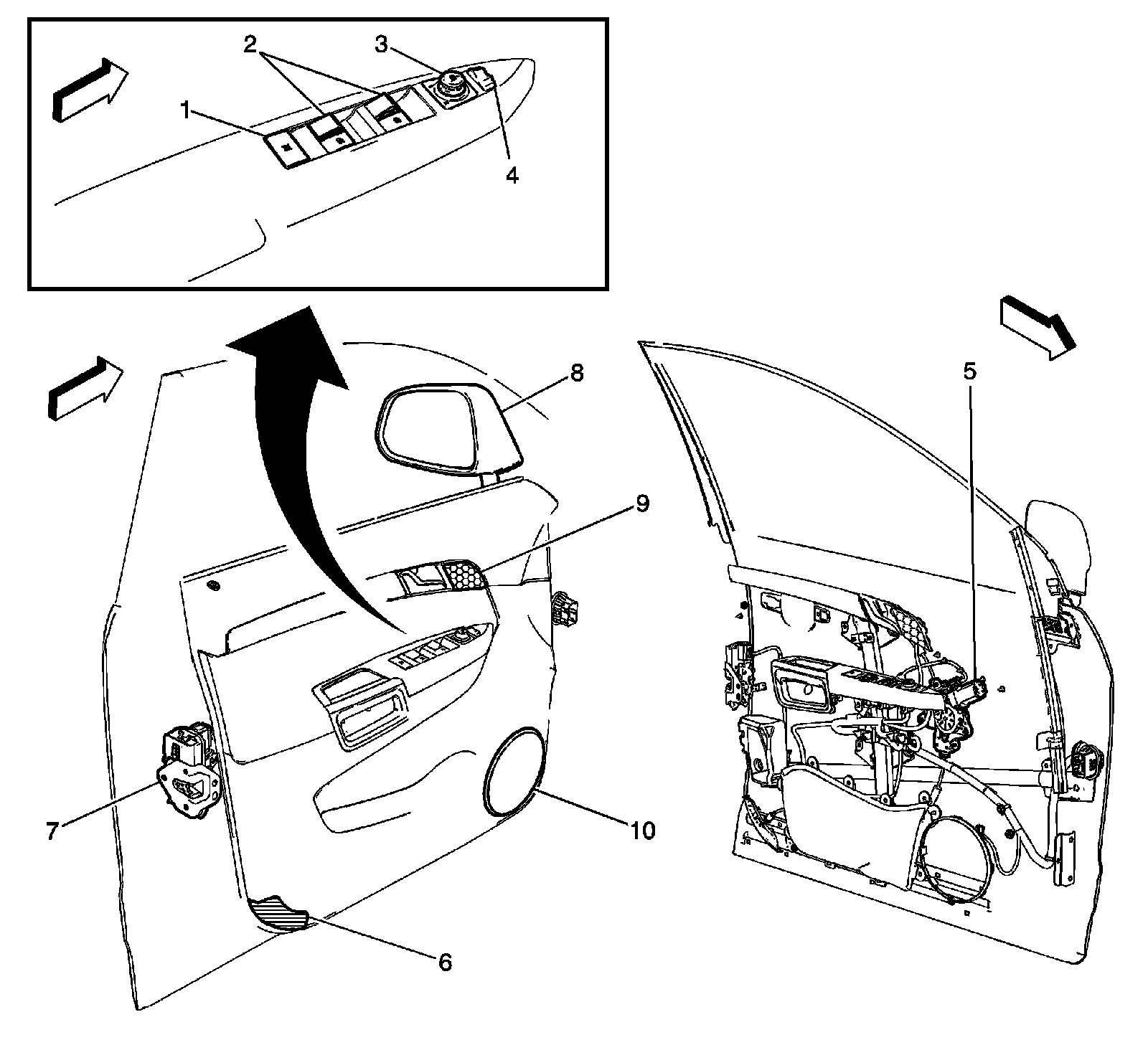

Door - Driver Components




1 - Rear Window Lock - Out Switch
2 - Window Switch - Driver
3 - Outside Rearview Mirror Switch
4 - Door Lock Switch - Driver
5 - Window Motor - Driver
6 - Courtesy Lamp - Left Front Door
7 - Door Latch Assembly - Driver
8 - Outside Rearview Mirror - Driver
9 - Speaker - Left Front - Tweeter (UW6)
10 - Speaker - Left Front Door

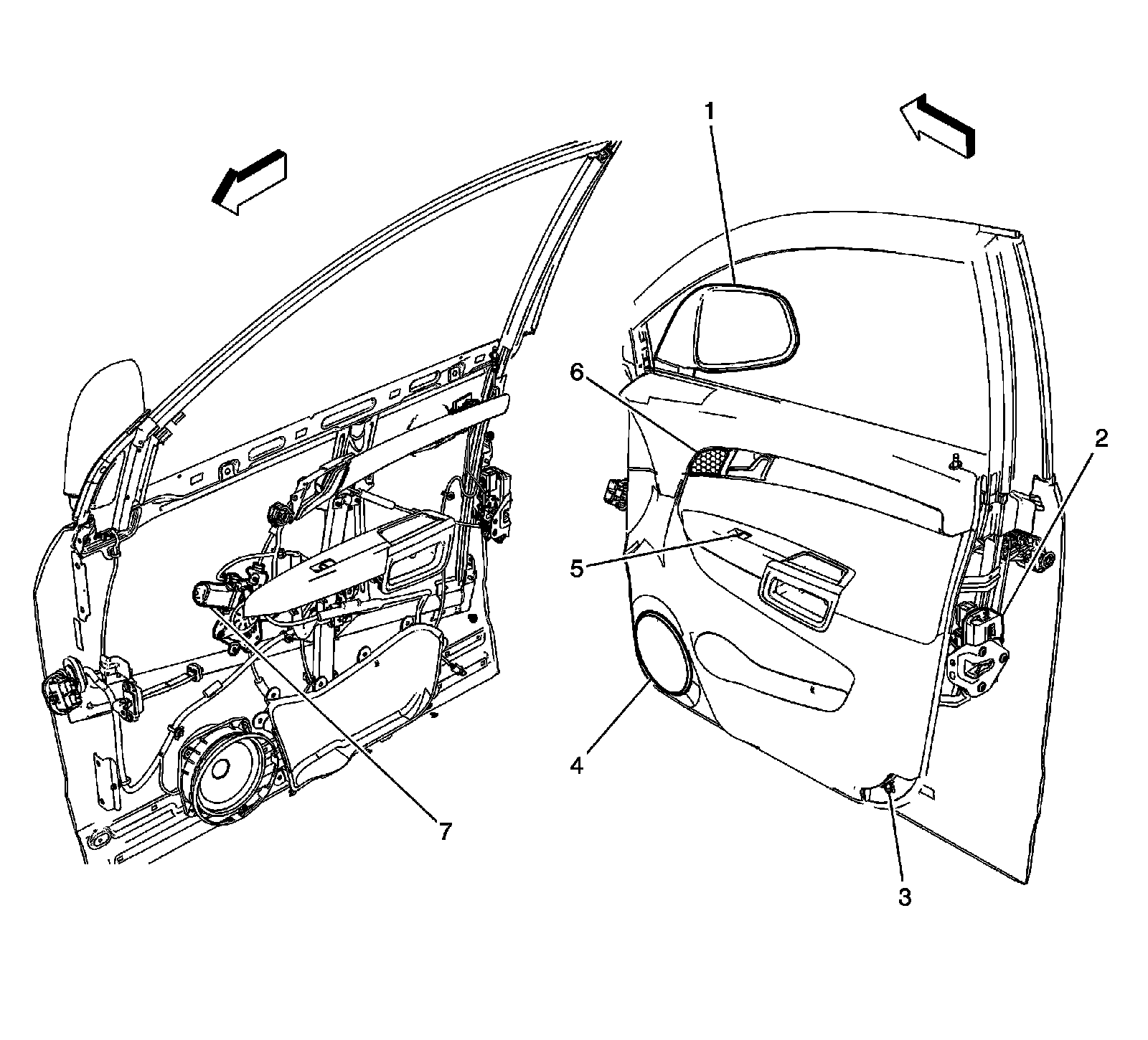

Door - Passenger Components




1 - Outside Rearview Mirror - Passenger
2 - Door Latch Assembly - Passenger
3 - Courtesy Lamp - Right Front Door
4 - Speaker - Right Front Door
5 - Window Switch - Passenger
6 - Speaker - Right Front - Tweeter (UW6)
7 - Window Motor - Passenger

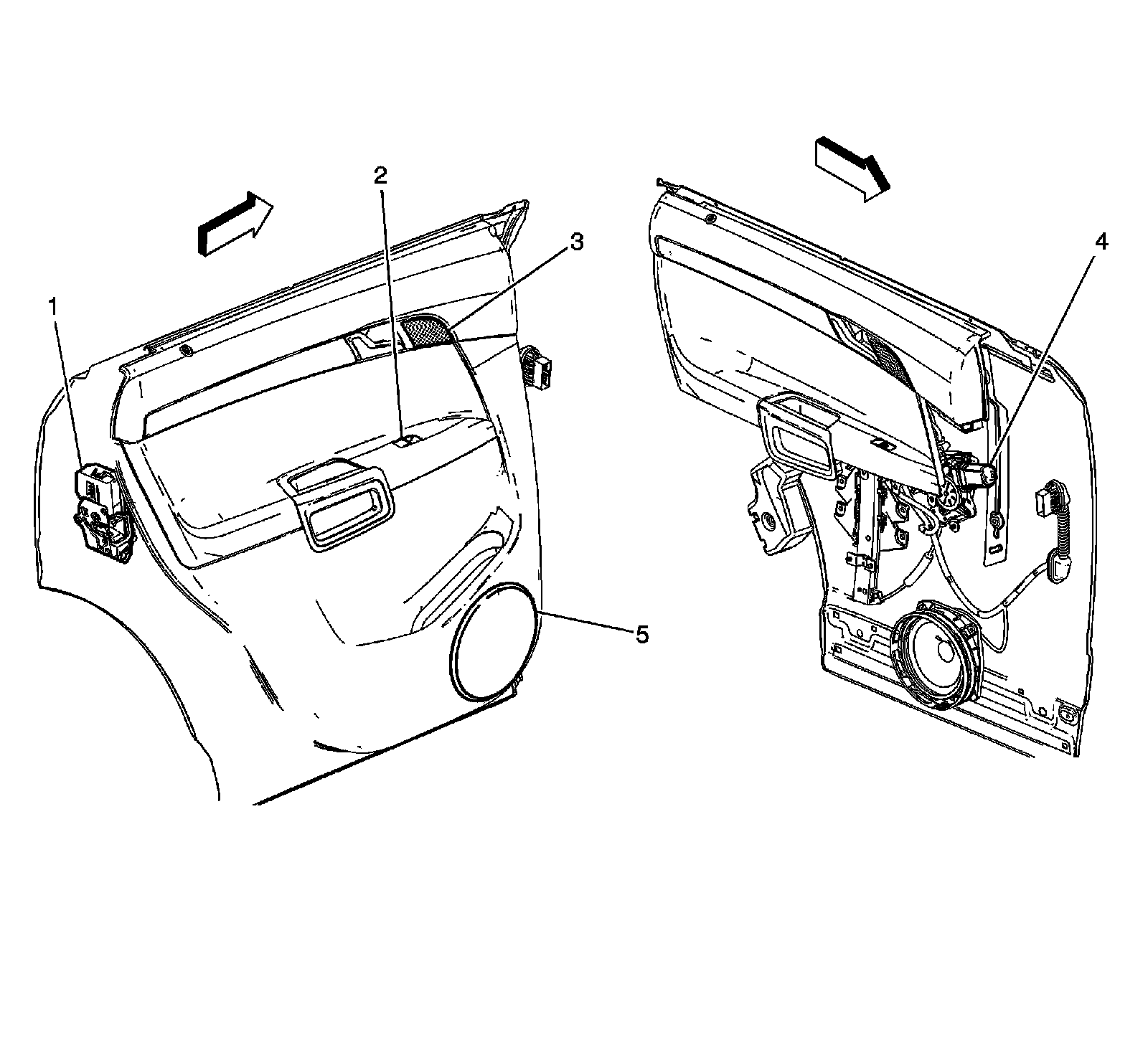

Door - Left Rear Components




1 - Door Latch Assembly - Left Rear
2 - Window Switch - Left Rear
3 - Speaker - Left Rear - Tweeter (UW6)
4 - Window Motor - Left Rear
5 - Speaker - Left Rear Door
