Control Unit, Differential Lock

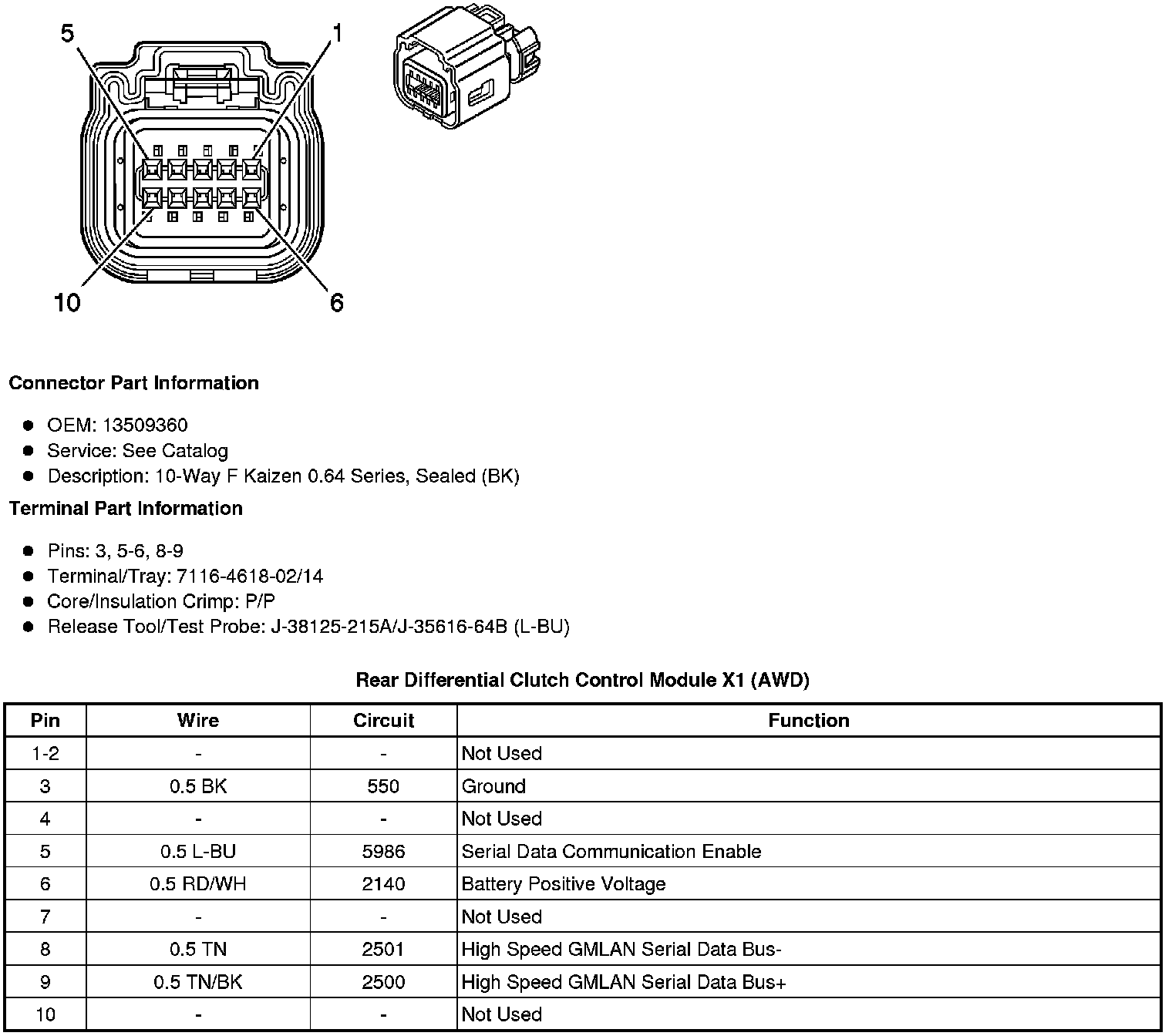

Rear Differential Clutch Control Module X1 (AWD)

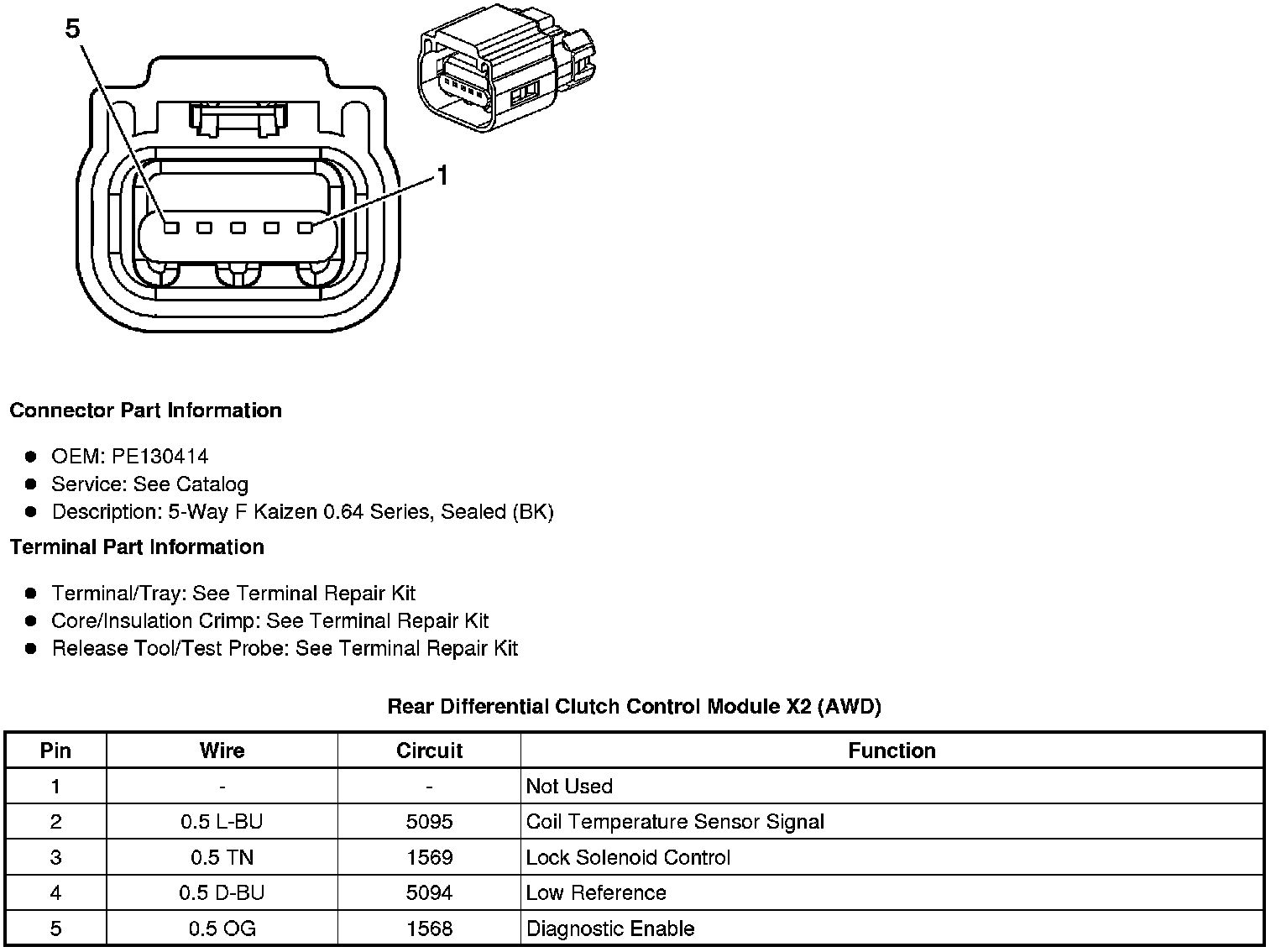

Rear Differential Clutch Control Module X2 (AWD)
