4T45-E Automatic Transaxle
1-2 Shift Solenoid (1-2 SS) Valve (MN5)
2-3 Shift Solenoid (2-3 SS) Valve (MN5)

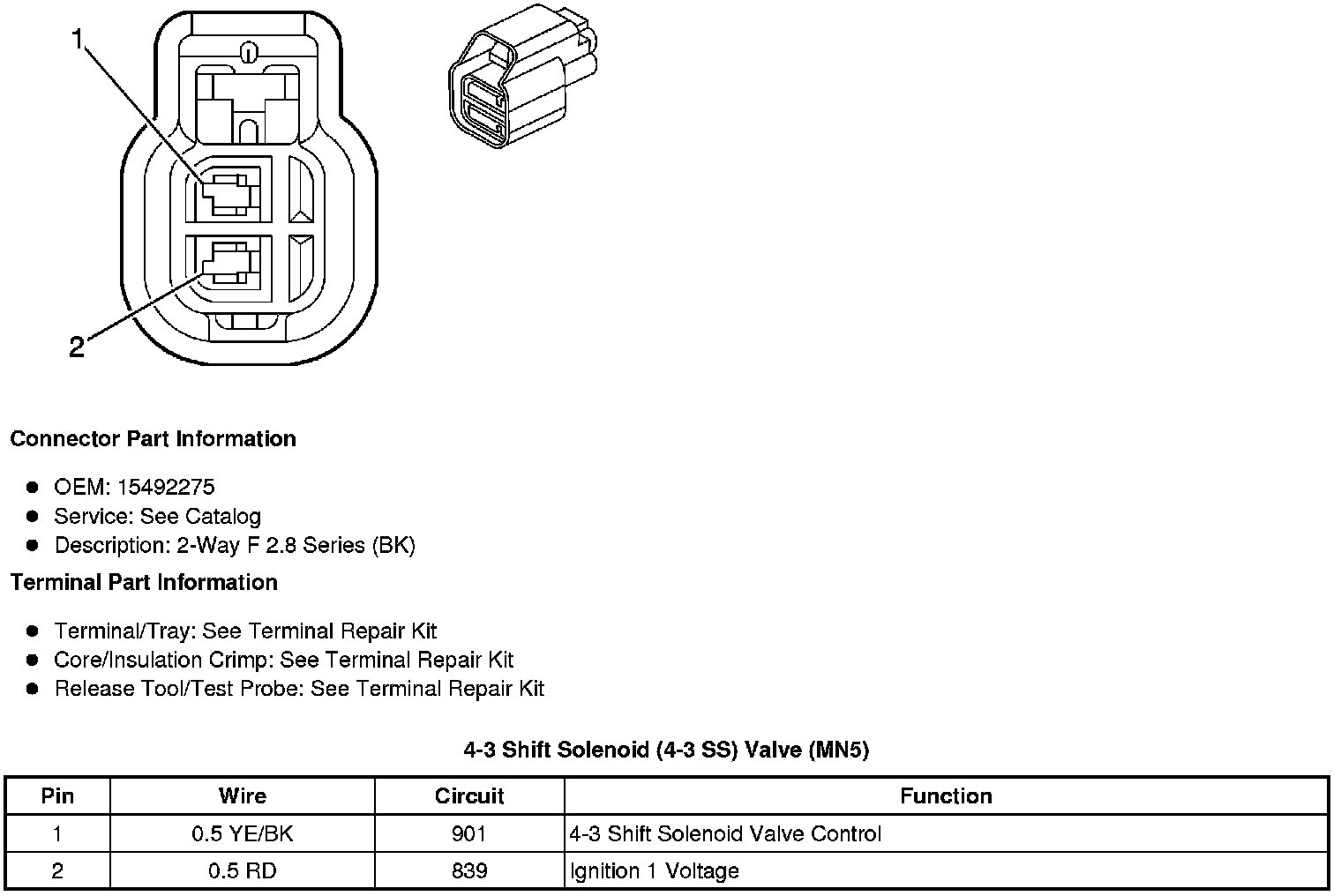

4-3 Shift Solenoid (4-3 SS) Valve (MN5)

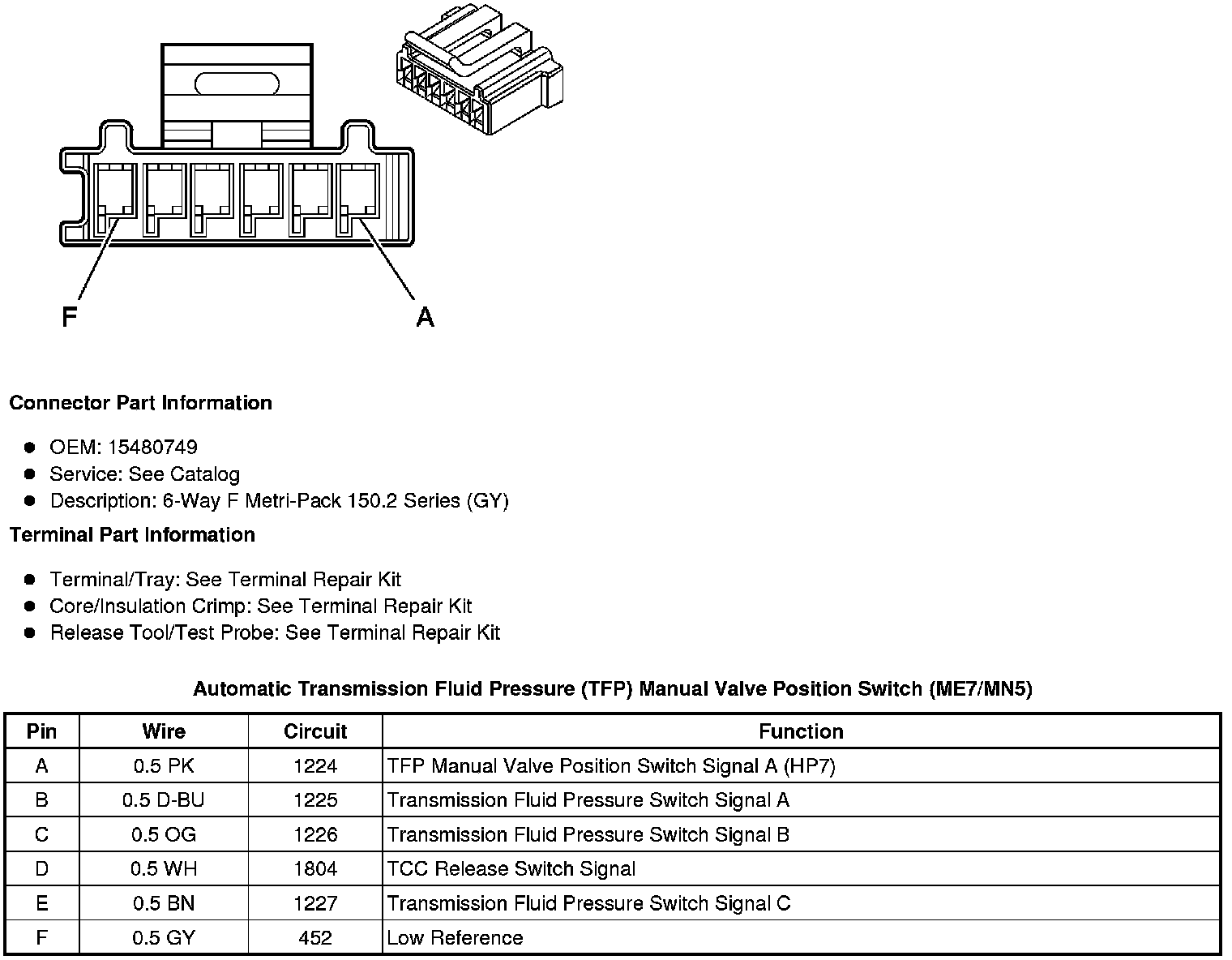

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (ME7/MN5)
Automatic Transmission Input Shaft Speed (AT ISS) Sensor (ME7/MN5)
Automatic Transmission Output Shaft Speed (AT OSS) Sensor (ME7/MN5)

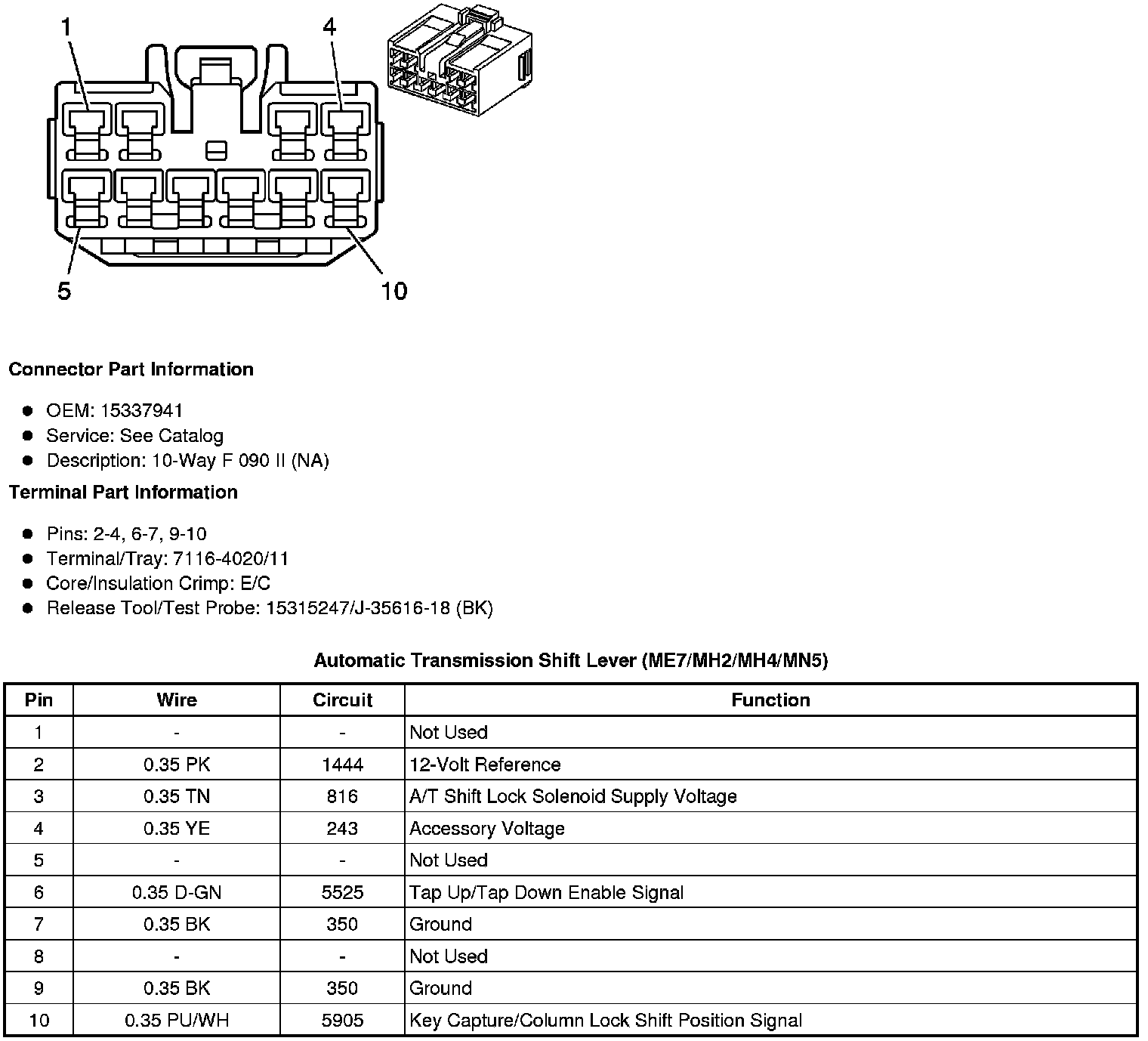

Automatic Transmission Shift Lever (ME7/MH2/MH4/MN5)
Differential Clutch Pump Actuator Check Valve (AWD)

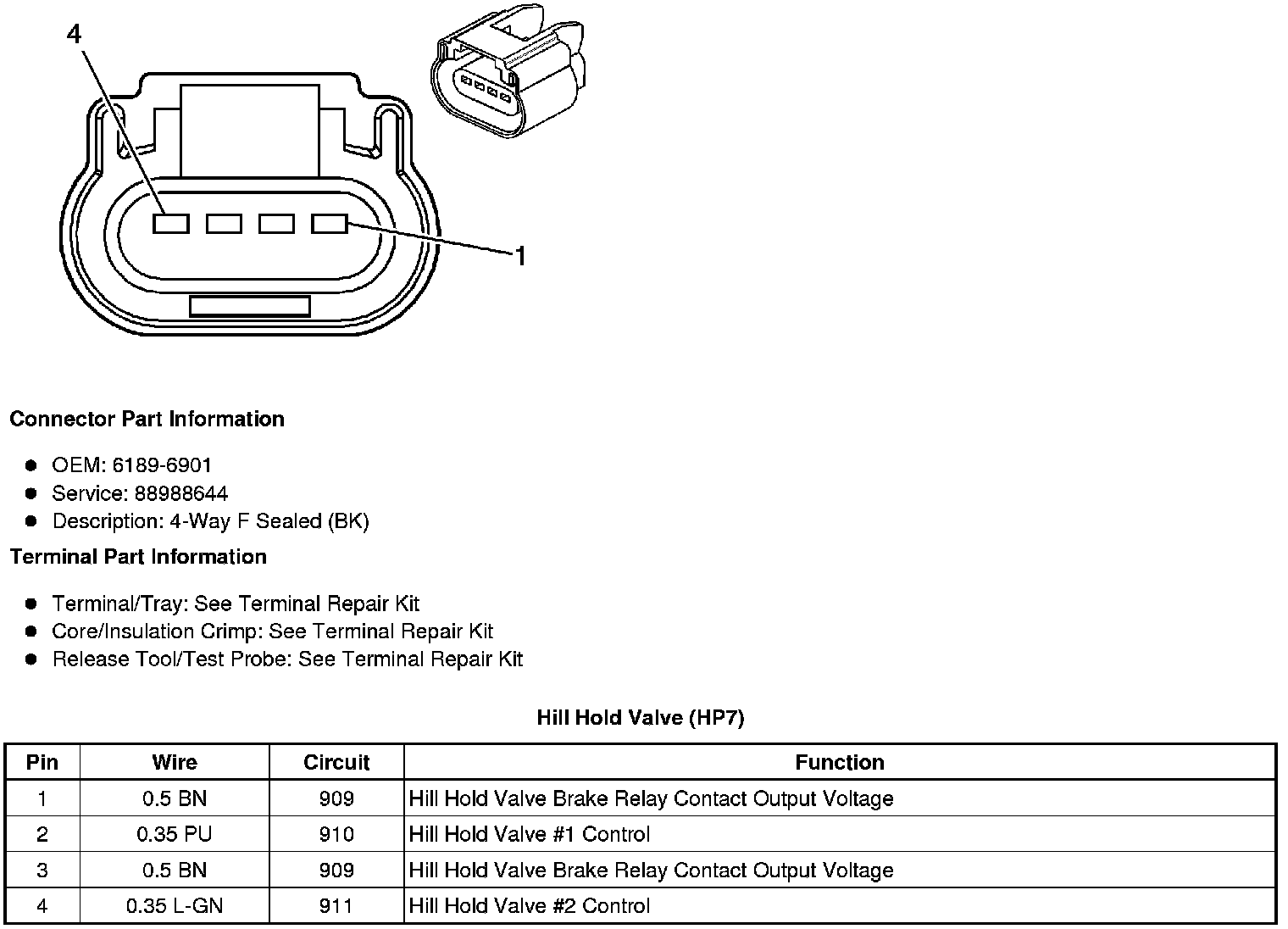

Hill Hold Valve (HP7)
Ignition Lock Cylinder Control Solenoid (ME7/MN5)
Mode Actuator
Park/Neutral Position (PNP) Switch (ME7/MN5)
Rear Differential Clutch Control Module X1 (AWD)
Rear Differential Clutch Control Module X2 (AWD)
Torque Converter Clutch (TCC) Pressure Control (PC) Solenoid Valve (MN5)
Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve (MN5)
Transmission Control Module (ME7/MN5)

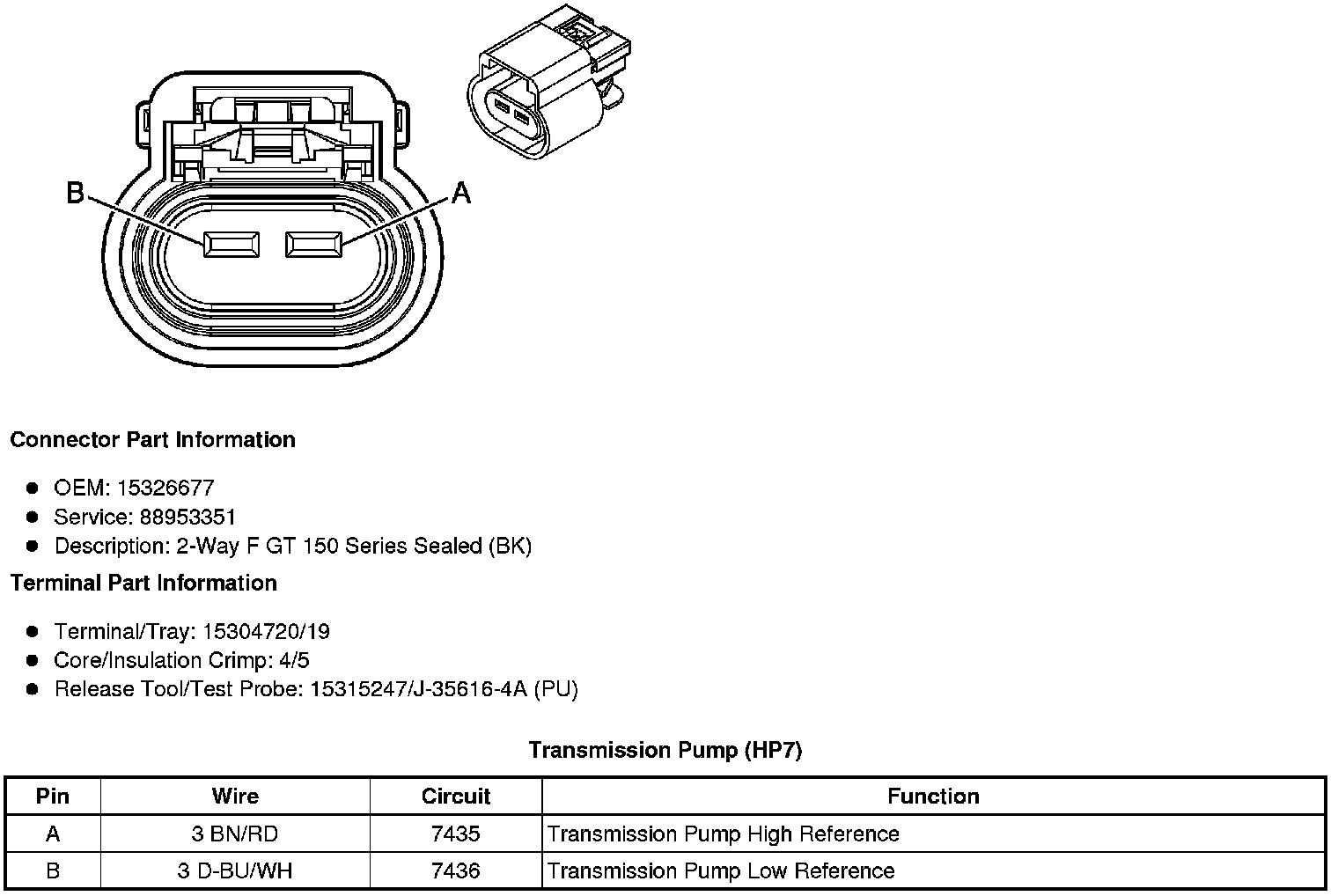

Transmission Pump (HP7)
