Getrag 5 Speed - Manual Transmission

Vehicle Speed Sensor Replacement

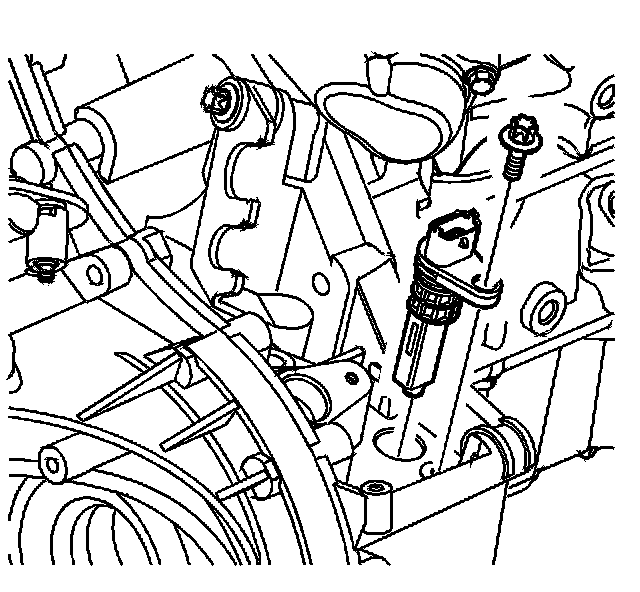

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .
2. Disconnect the vehicle speed sensor (VSS) electrical connector (2).




3. Remove the VSS retaining bolt.
4. Remove the VSS.



Installation Procedure





1. Install the VSS.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the VSS retaining bolt.

Tighten the bolt to 12 N.m (106 lb in).





3. Connect the VSS electrical connector (2).
4. Lower the vehicle.
