Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

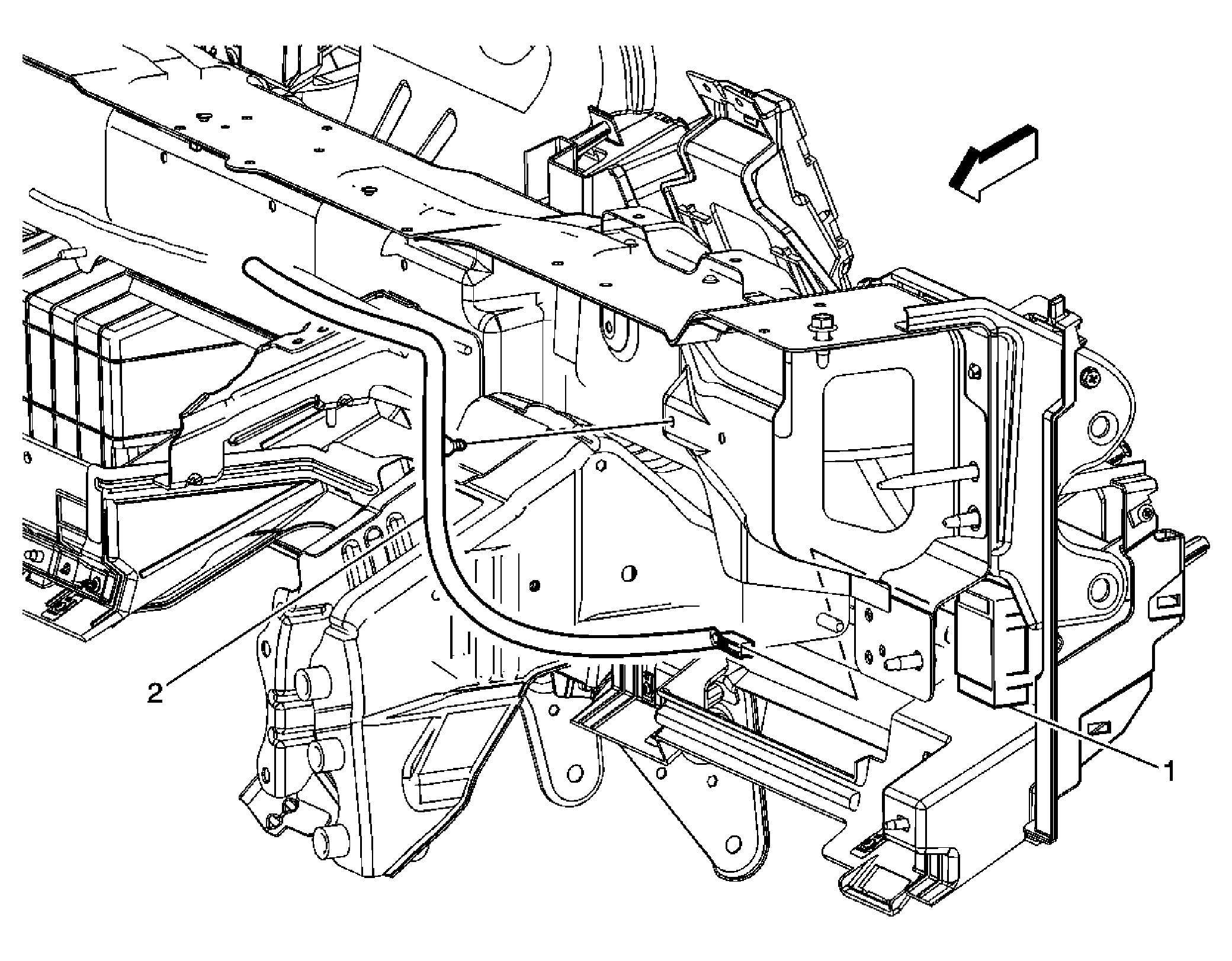

Fig 1: Ignition Lock Key Transmitter Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the instrument panel trim panel. Refer to Instrument Panel Trim Panel Replacement .
1	Remote Control Door Lock Receiver Assembly
2	Ignition Lock Key Transmitter Antenna Assembly Procedure:  Disconnect the electrical connector.
