Air Bag Control Module




Component Connector End Views

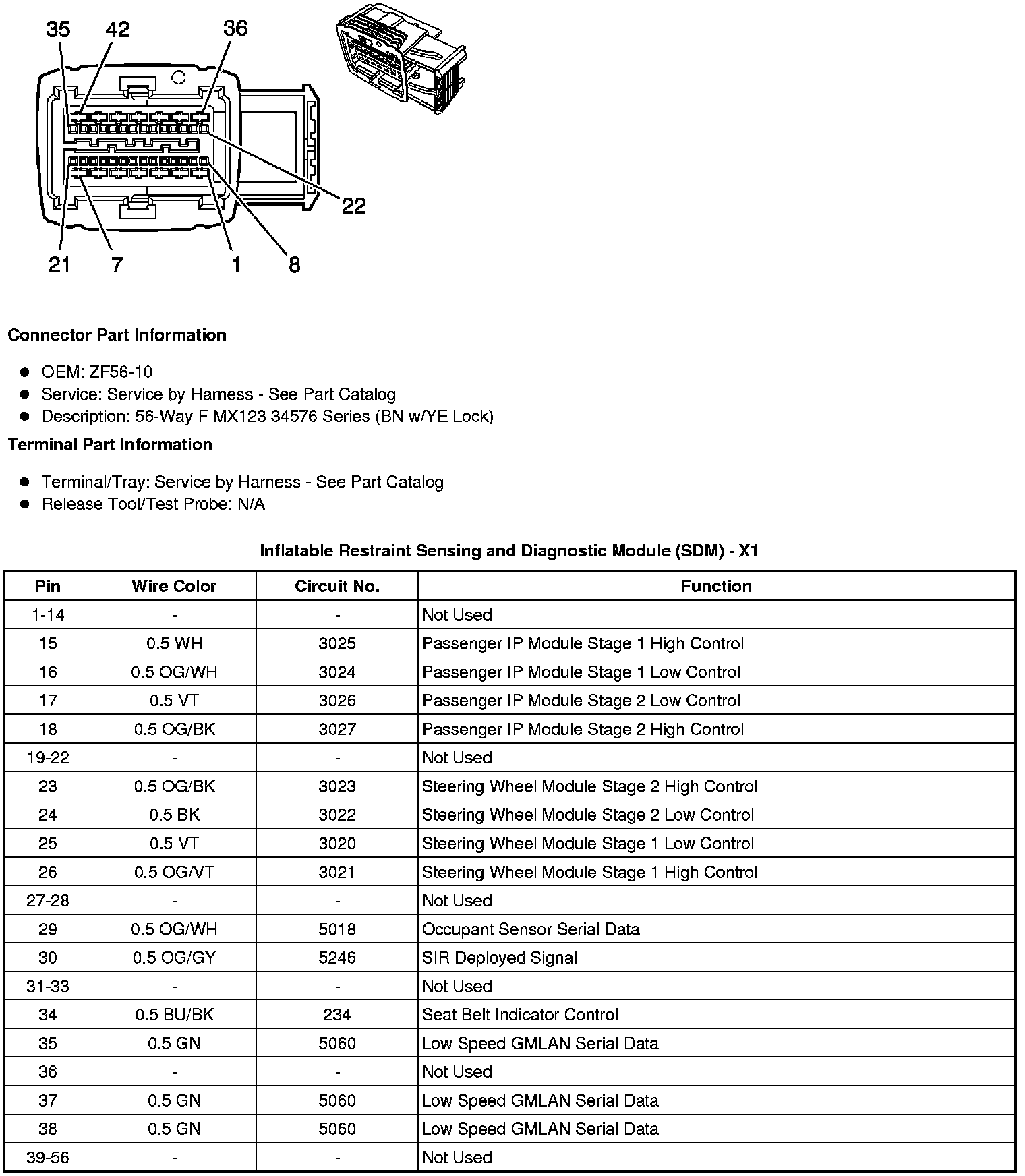

Inflatable Restraint Sensing and Diagnostic Module (SDM) - X1

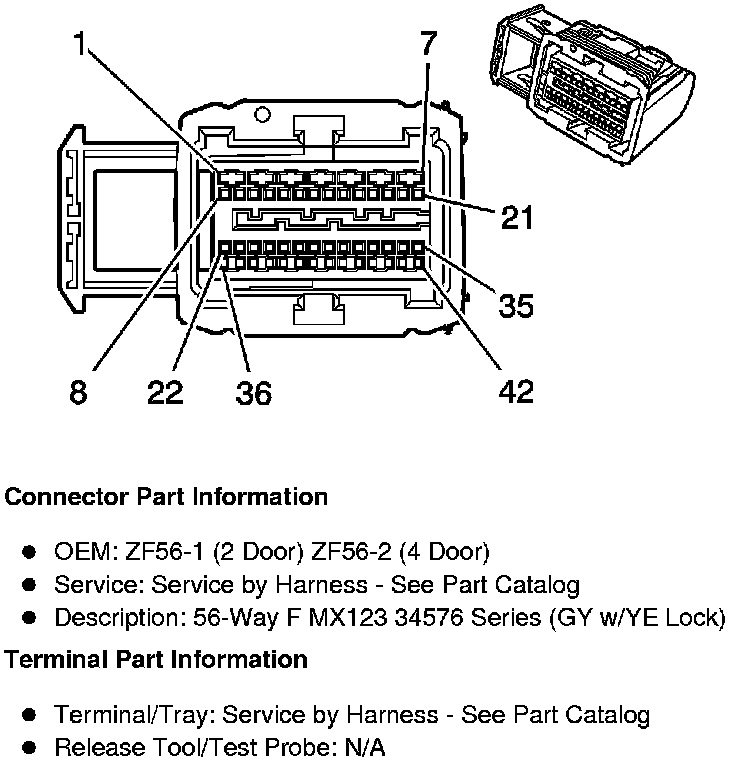

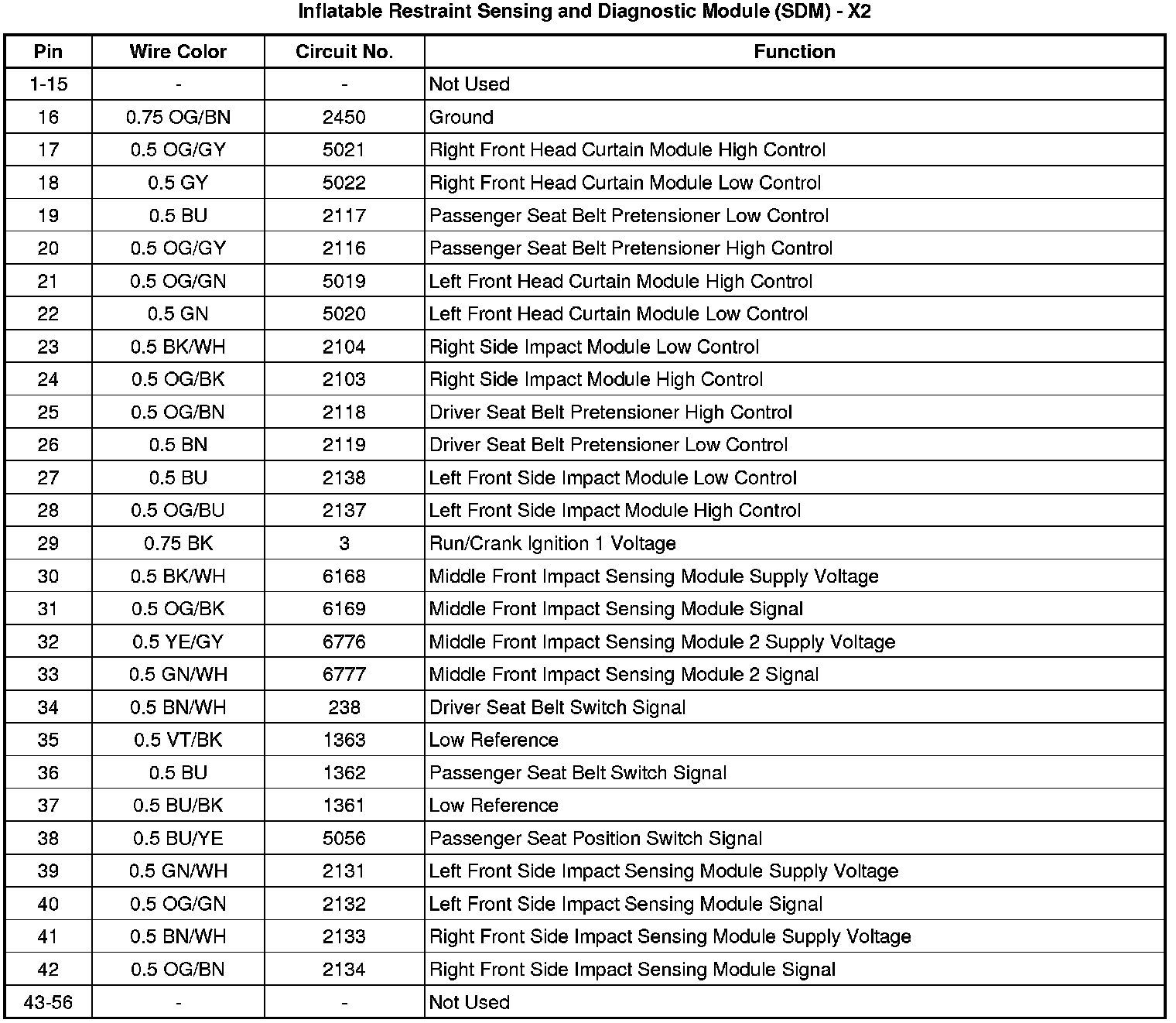

Inflatable Restraint Sensing and Diagnostic Module (SDM) - X2
