Ambient Temperature Sensor / Switch HVAC




Component Connector End Views

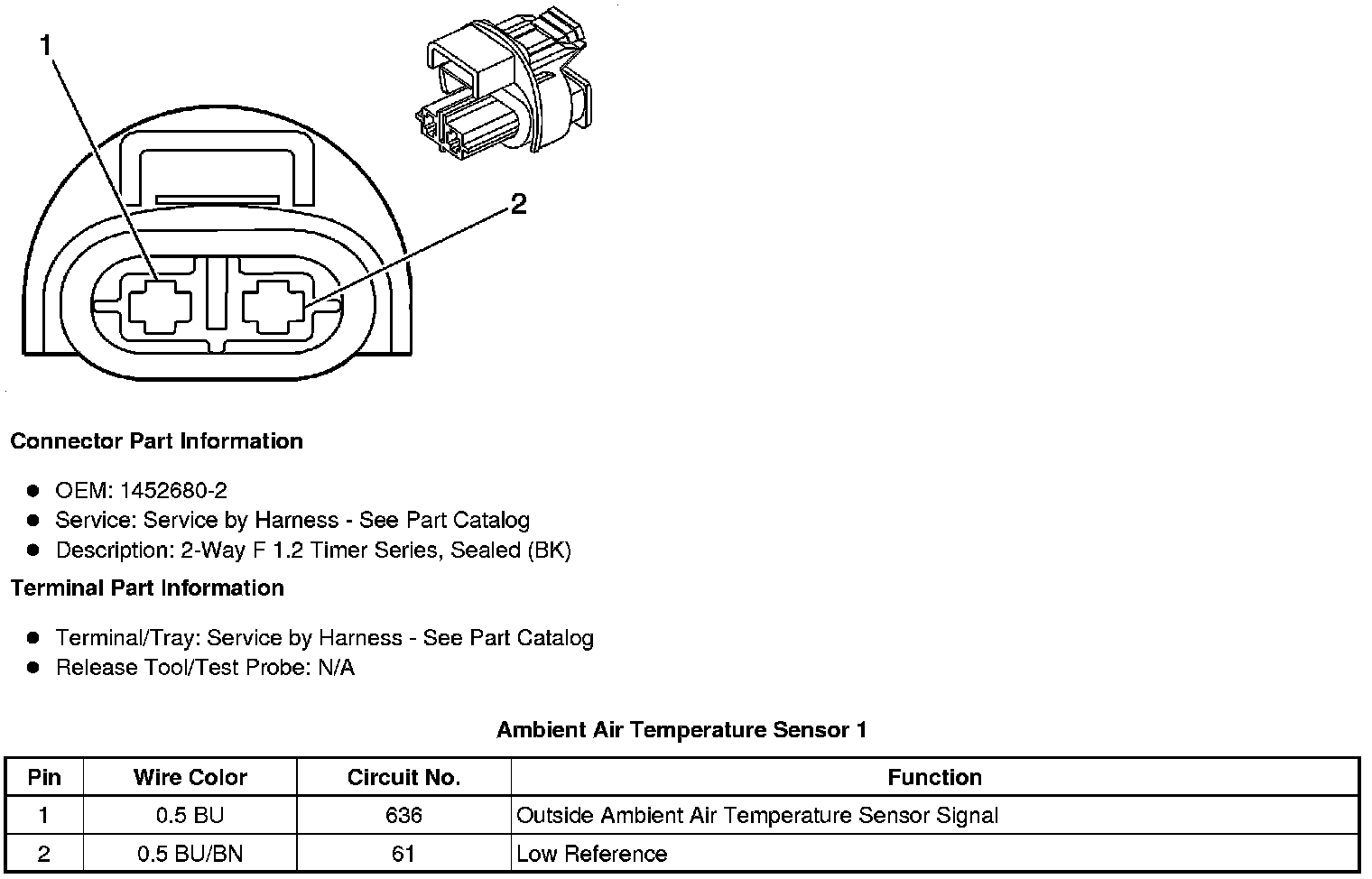

Ambient Air Temperature Sensor 1





Ambient Air Temperature Sensor 2
