Mirrors




Component Connector End Views

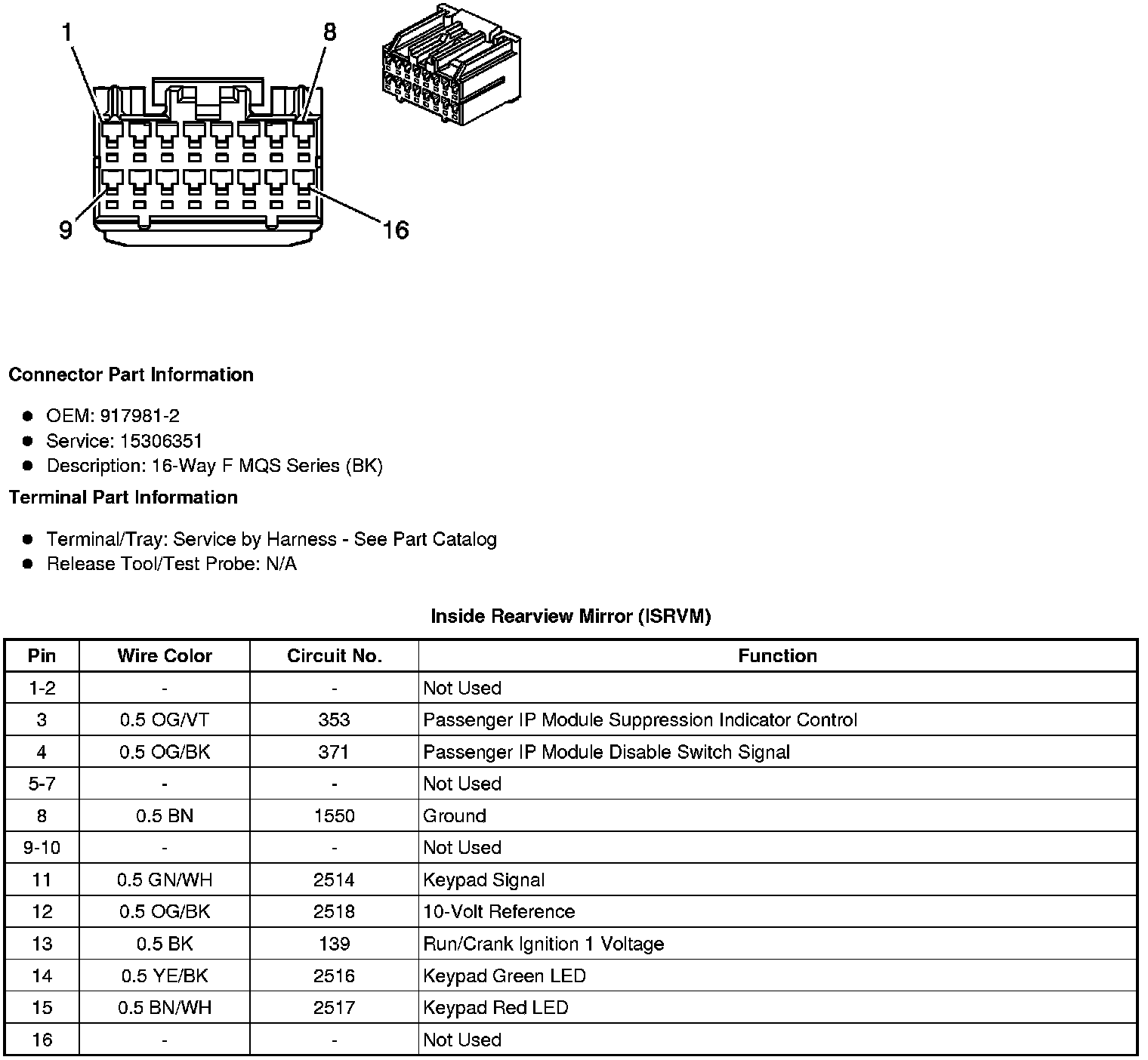

Inside Rearview Mirror (ISRVM)

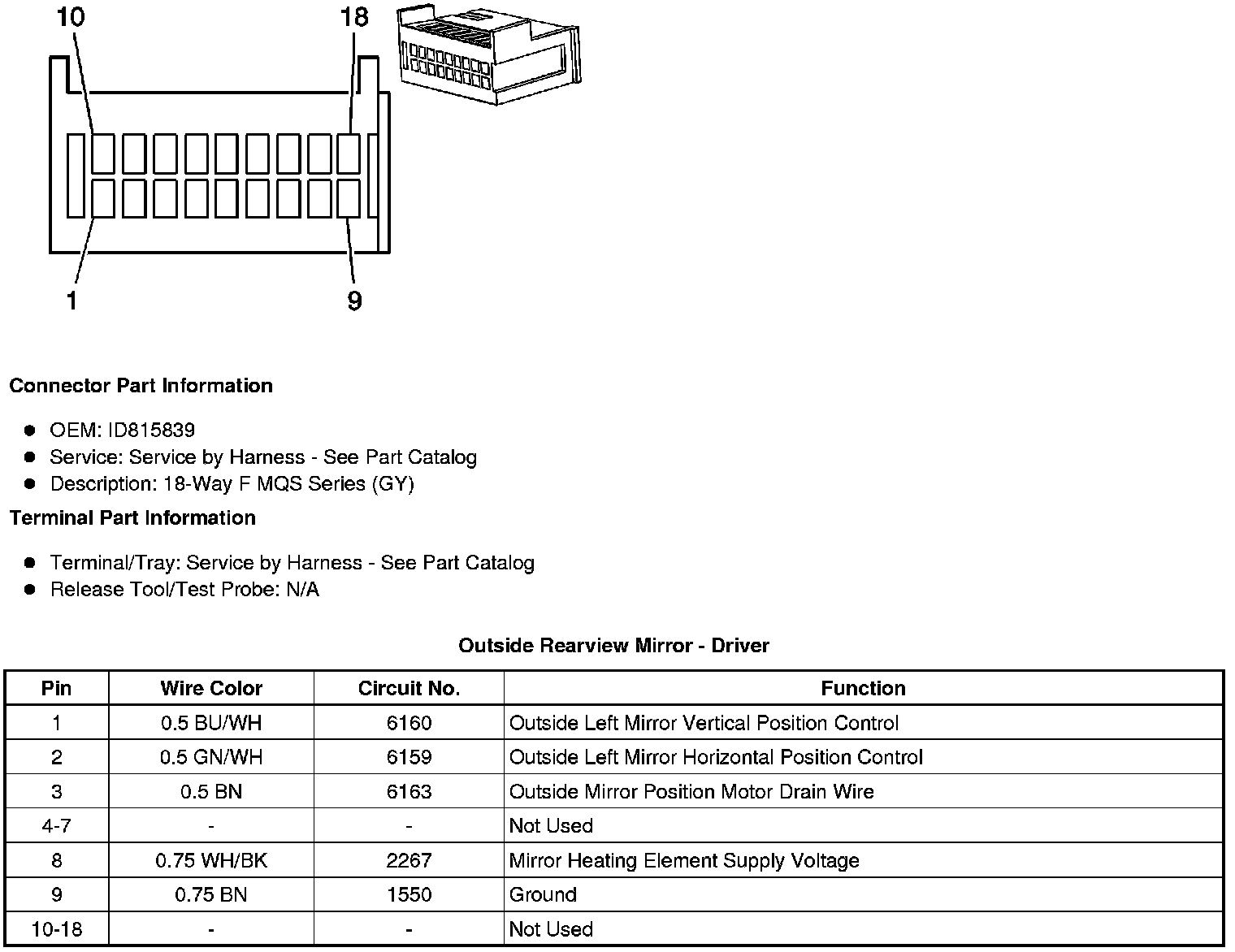

Outside Rearview Mirror - Driver





Outside Rearview Mirror - Passenger
