Steering Control Module




Component Connector End Views

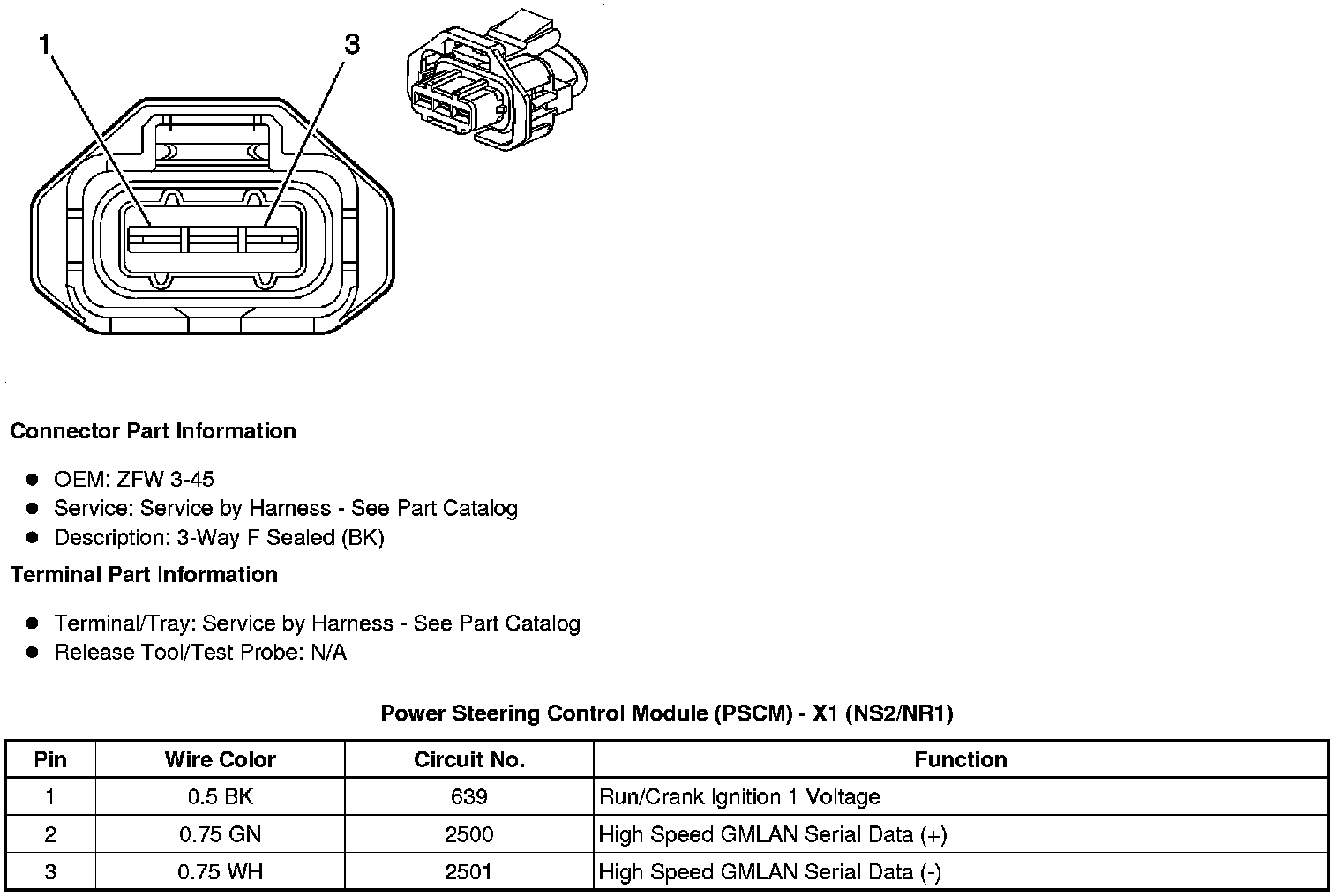

Power Steering Control Module (PSCM) - X1 (NS2/NR1)

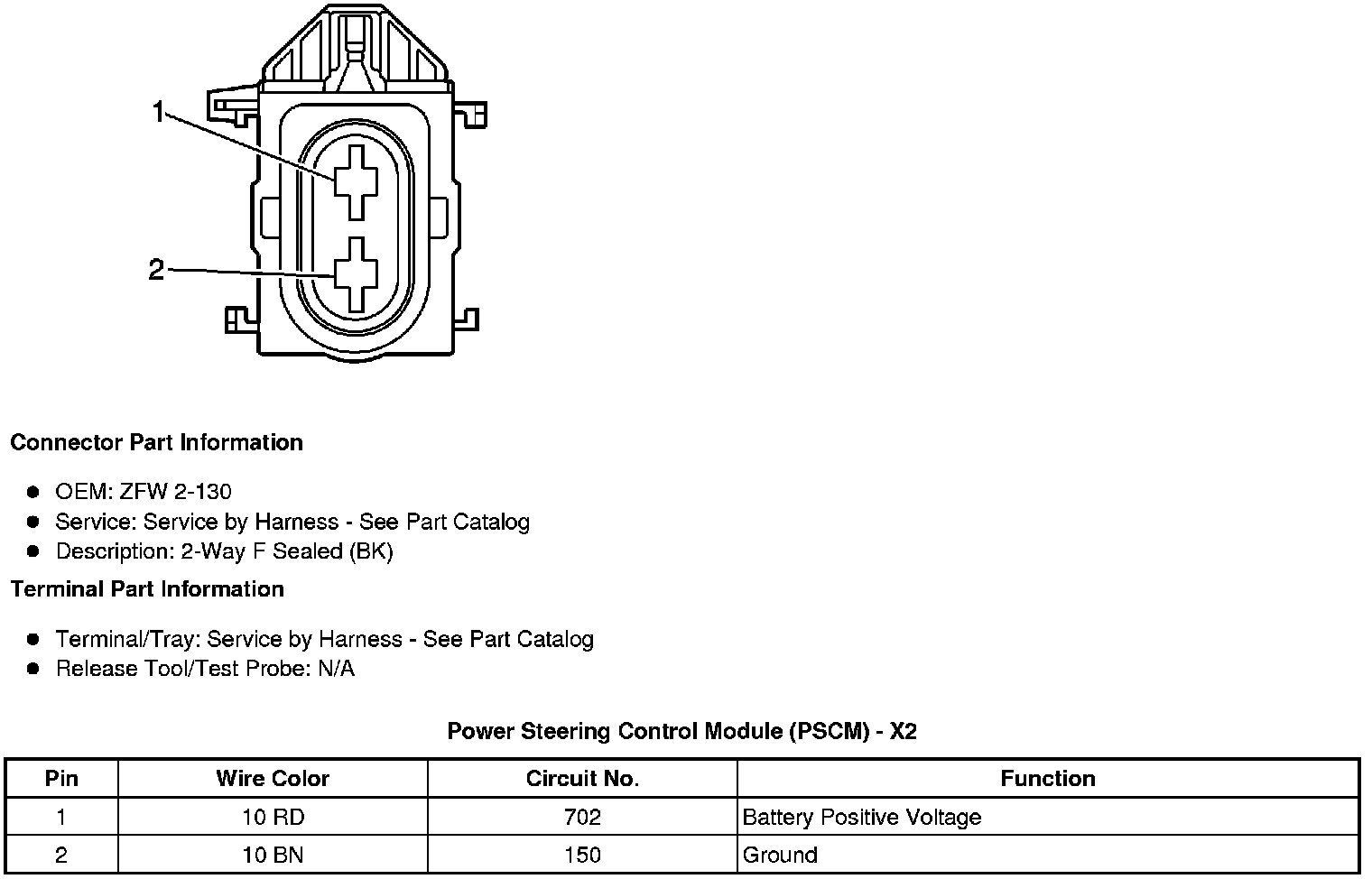

Power Steering Control Module (PSCM) - X2
