Variable Induction Position Sensor

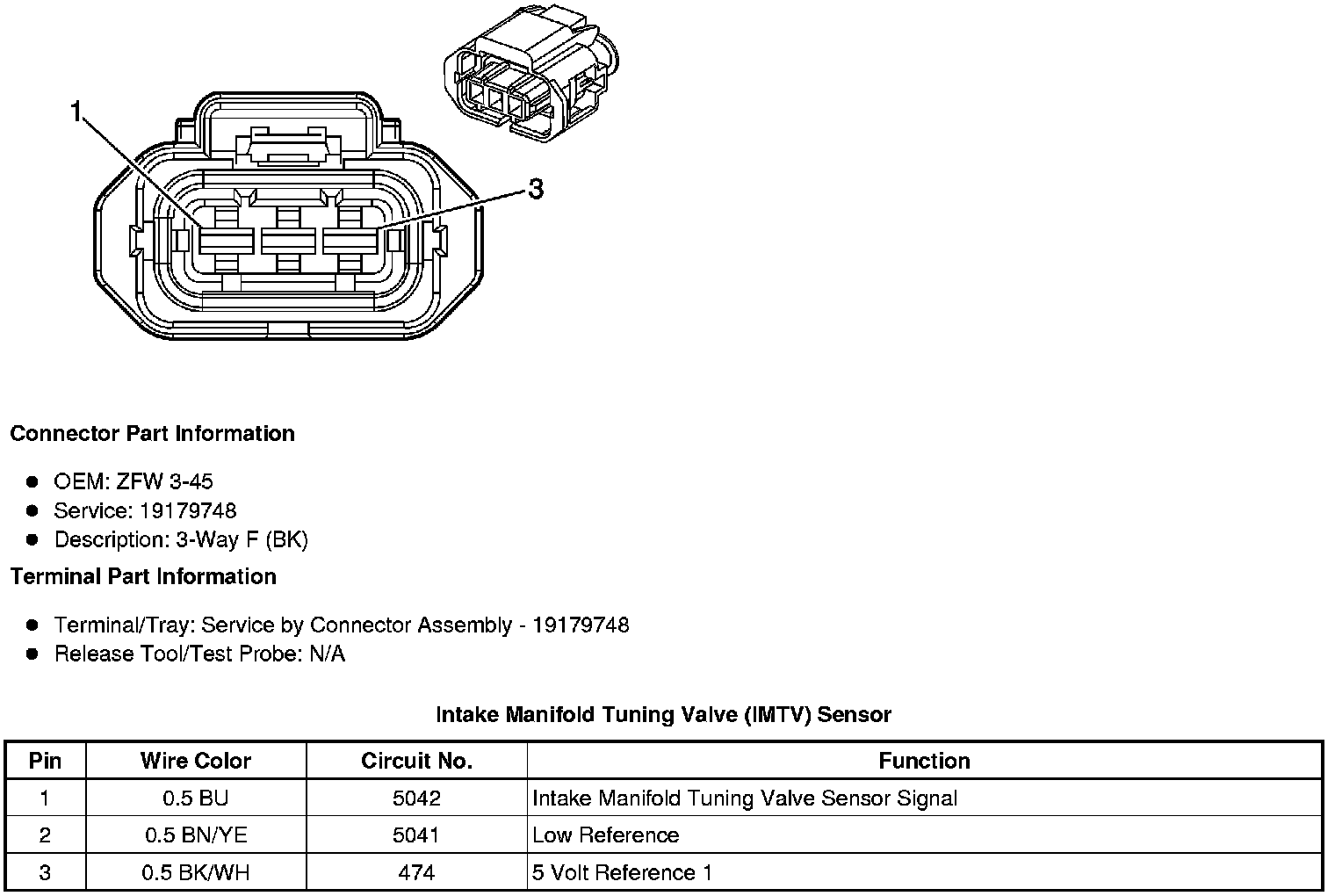

Component Connector End Views
Intake Manifold Tuning Valve (IMTV) Sensor
