Body Control Systems




Body Control System Schematics

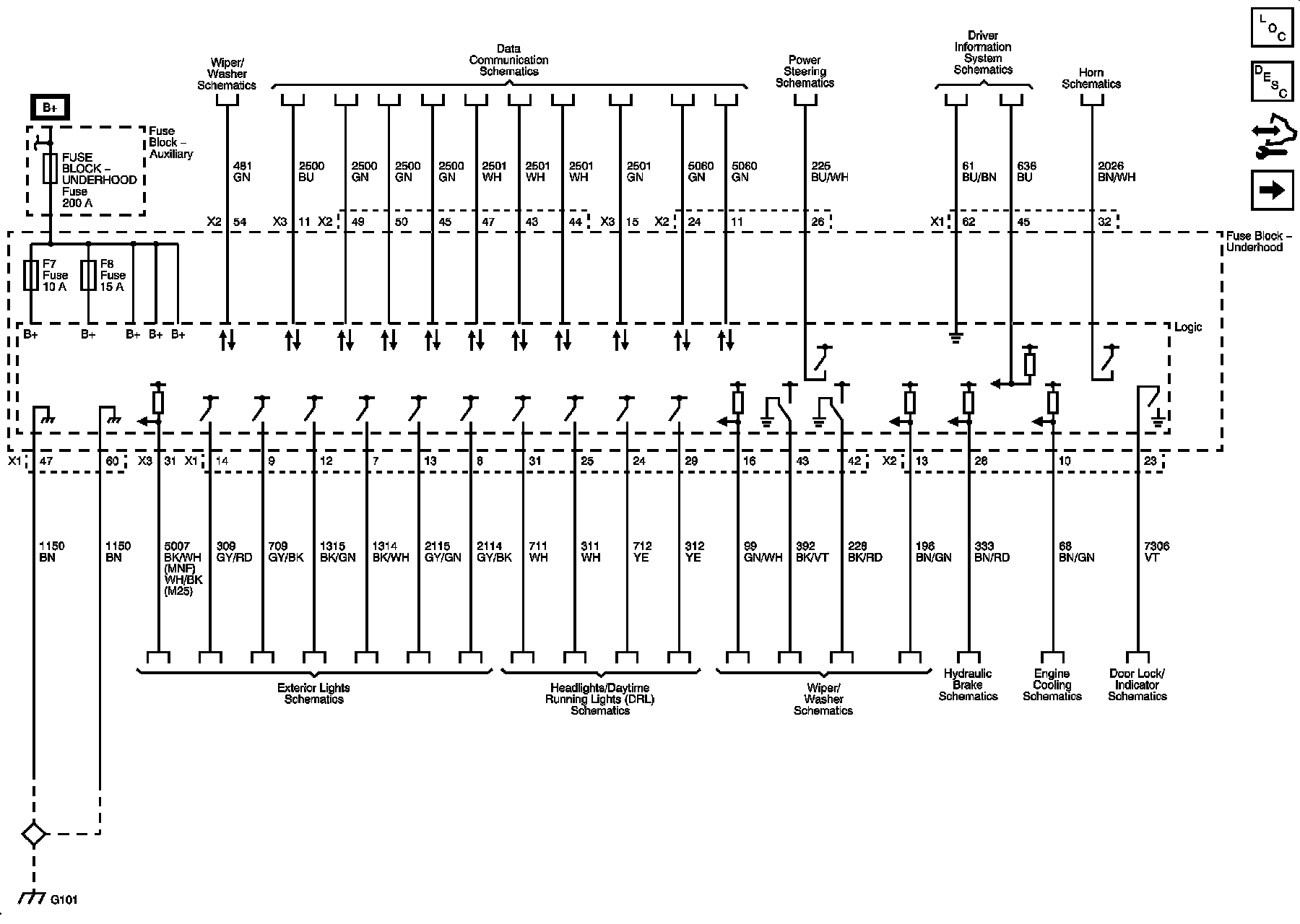

Fuse Block - Underhood

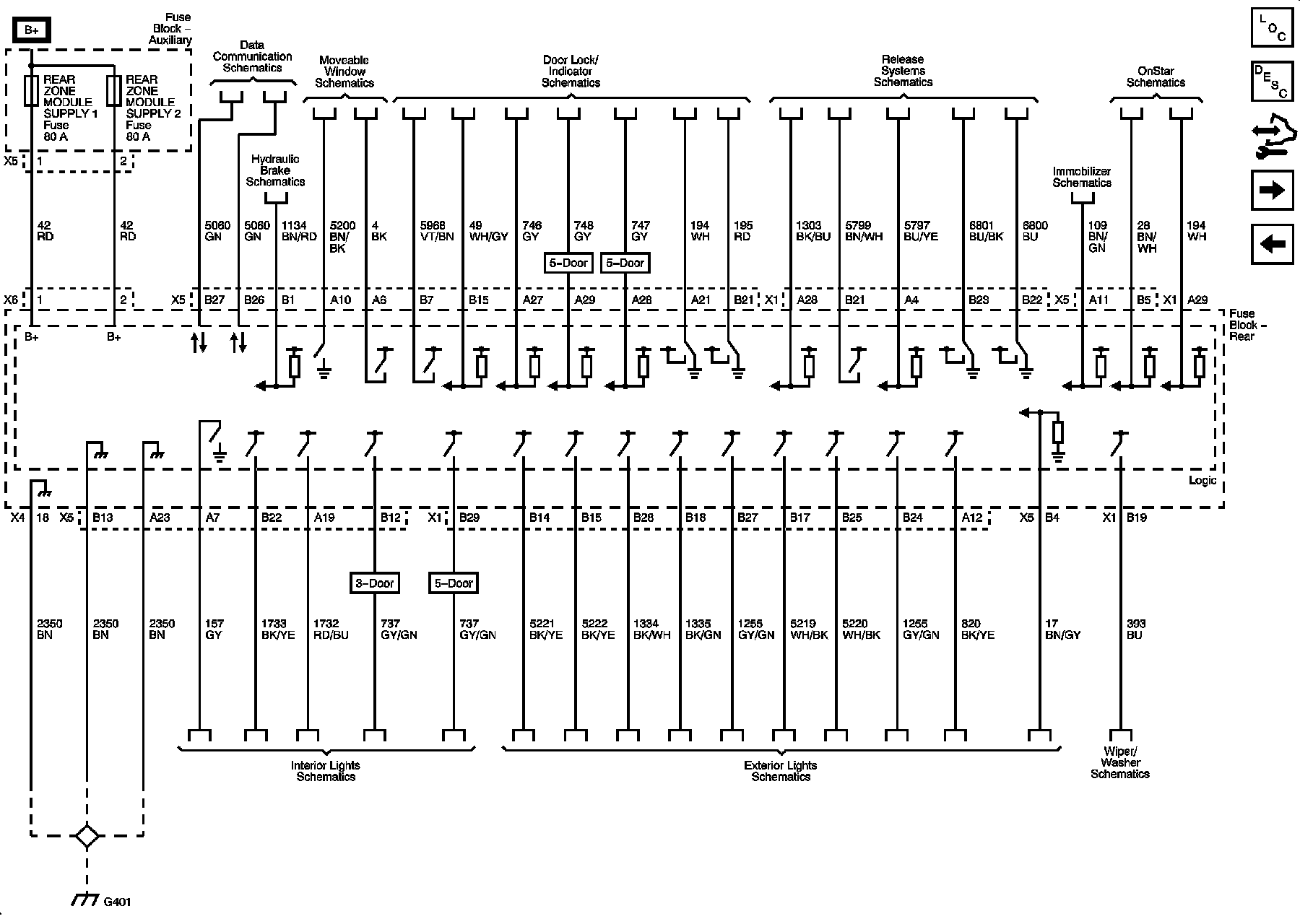

Fuse Block - Rear





Steering Column Control Module
